Omron E5CC-800 User Manual

2 - 3
2 Preparations
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
2-1 Installation
2

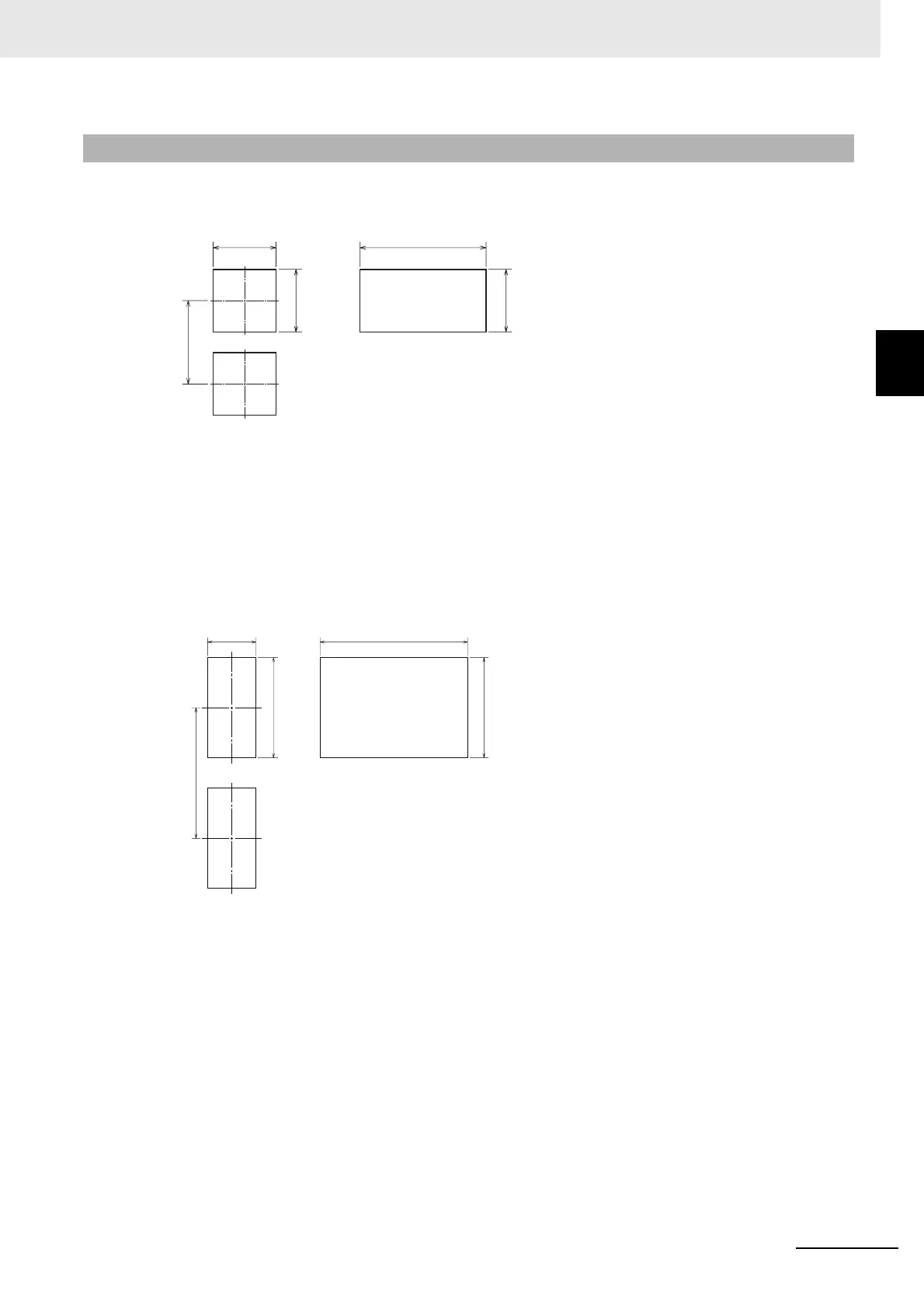

2-1-2 Panel Cutout (Unit: mm)
z E5CC
• Waterproofing is not possible when group mounting several Controllers.
• The recommended panel thickness is 1 to 5 mm for the E5CC.
• Controllers must not be closely mounted vertically. (Observe the recommended mounting space
limits.)
• When group mounting several Controllers, ensure that the surrounding temperature does not exceed
the ambient operating temperature listed in the specifications.
z E5EC
• Waterproofing is not possible when group mounting several Controllers.
• The recommended panel thickness is 1 to 8 mm for the E5EC.
• Controllers must not be closely mounted vertically. (Observe the recommended mounting space
limits.)
• When group mounting several Controllers, ensure that the surrounding temperature does not exceed
the ambient operating temperature listed in the specifications.
2-1-2 Panel Cutout (Unit: mm)
60 min.
+1.0
0
Individual Mounting
Group Mounting
(48 × number of Units − 2.5)
45
+0.6
0
45
+0.6
0
45
+0.6
0
Individual Mounting
120 min.
+1.0
0
Group Mounting*
(48 × number of Units − 2.5)
45
+0.6
0
92
+0.8
0
92
+0.8
0

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
