2 Preparations
2 - 10
Digital Temperature Controllers (Simple Type) User’s Manual (H211)

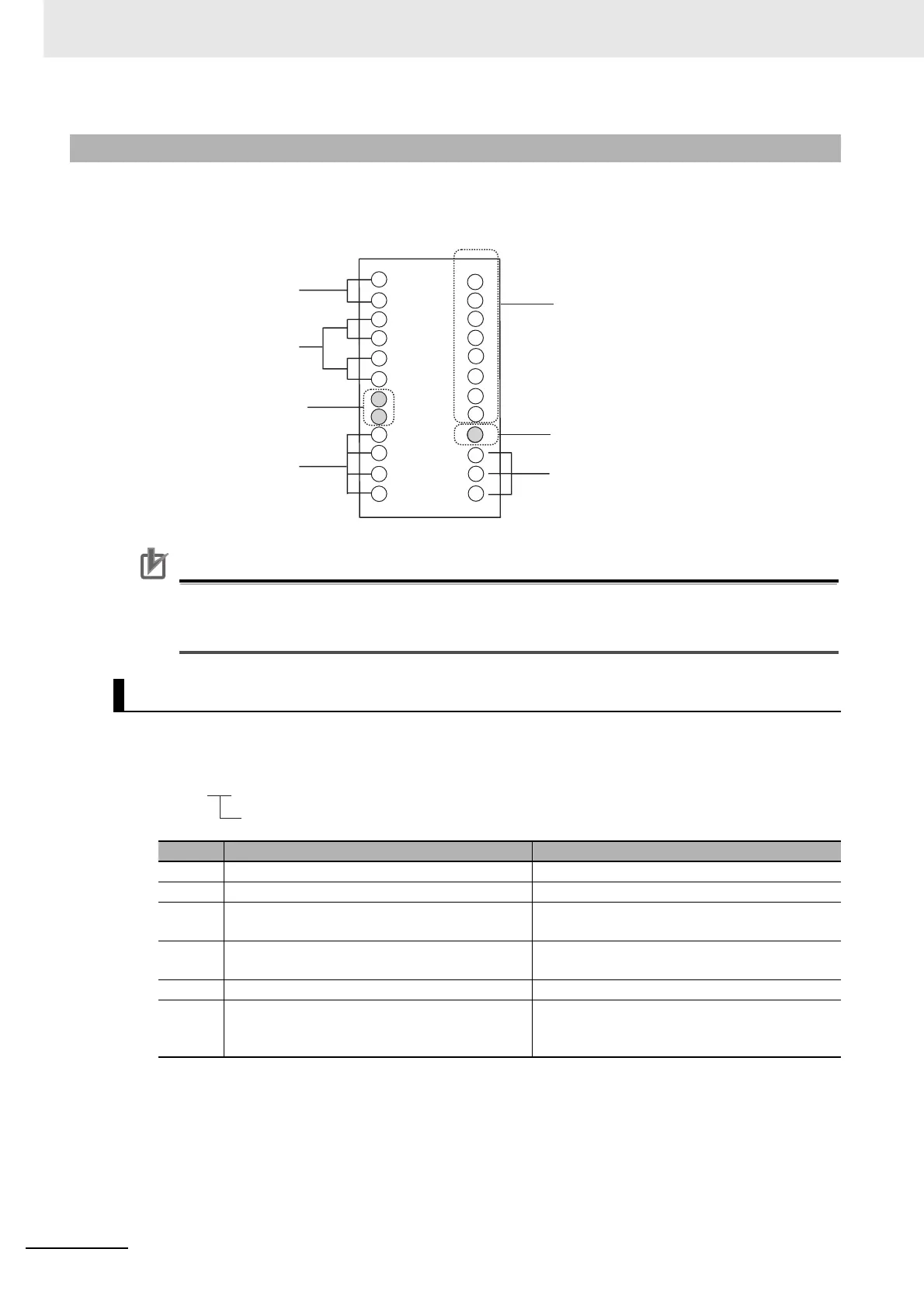

z Terminal Arrangement
The terminals block of the E5EC is divided into five types of terminals: control outputs 1 and 2, sensor input,
auxiliary outputs, input power supply, and options.
Precautions for Correct Use
• When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5). If
a different sensor is used, an input error (s.err) will occur. Check the setting of the Input Type
parameter.
z Model Numbers
The specifications for control outputs 1 and 2 are given in the following location in the model number.
2-2-2 E5EC Terminal Block Wiring Example
Control Outputs 1 and 2
Code Output type Specification
RX 1 relay output 250 VAC, 5 A (resistive load)
QX 1 voltage output (for driving SSR) 12 VDC, 40 mA
CX 1 current output 4 to 20 mA DC or 0 to 20 mA DC with load of
500 Ω max.
QR 1 voltage output (for driving SSR) and 1 relay
output
12 VDC, 21 mA for voltage output
250 VAC, 5 A (resistive load) for relay output
RR 2 relay outputs 250 VAC, 5 A (resistive load)
CR 1 current output and 1 relay output 4 to 20 mA DC or 0 to 20 mA DC with load of
500 Ω max.
250 VAC, 5 A (resistive load) for relay output
Input power supply
Control outputs 1 and 2
Auxiliary outputs
Sensor input
Not used.
1
2
3
4
5
6
12
11
7
9
8
10
16
17
18
13
14
15
22
23
24
19
20
21
Not used.
Options
Control outputs 1 and 2
E5EC-@@ 2 @ S M-8@@

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
