3 - 7
3 Part Names and Basic Procedures
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
3-3 Part Names, Part Functions, and Setting Levels
3
3-3-2 Entering Numeric Values
After you change a numeric value with the U D Keys, the changes are applied 1) when 3 seconds
elapses, 2) when the M Key is pressed, or 3) when the level is changed with the O Key.
Precautions for Correct Use
Always make sure that any changes to numeric values are applied for one of the three methods
that are given above before you turn OFF the power supply to the E5CC/E5EC.
If you only change the values with the U D Keys and turn OFF the power supply before 3
seconds has elapsed, the changes will not be applied.
Press the Shift Key (PF Key) to select the digit to change.
This is useful when entering a numeric value with many digits.
Use this key to change levels: The digit to change will move as follows: 1s digit, 10s digit, 100s digit,
1000s digit, and then back to the 1s digit. Press the U + D Keys to change the value of a digit.
3-3-2 Entering Numeric Values
Applying Changes to Numeric Values

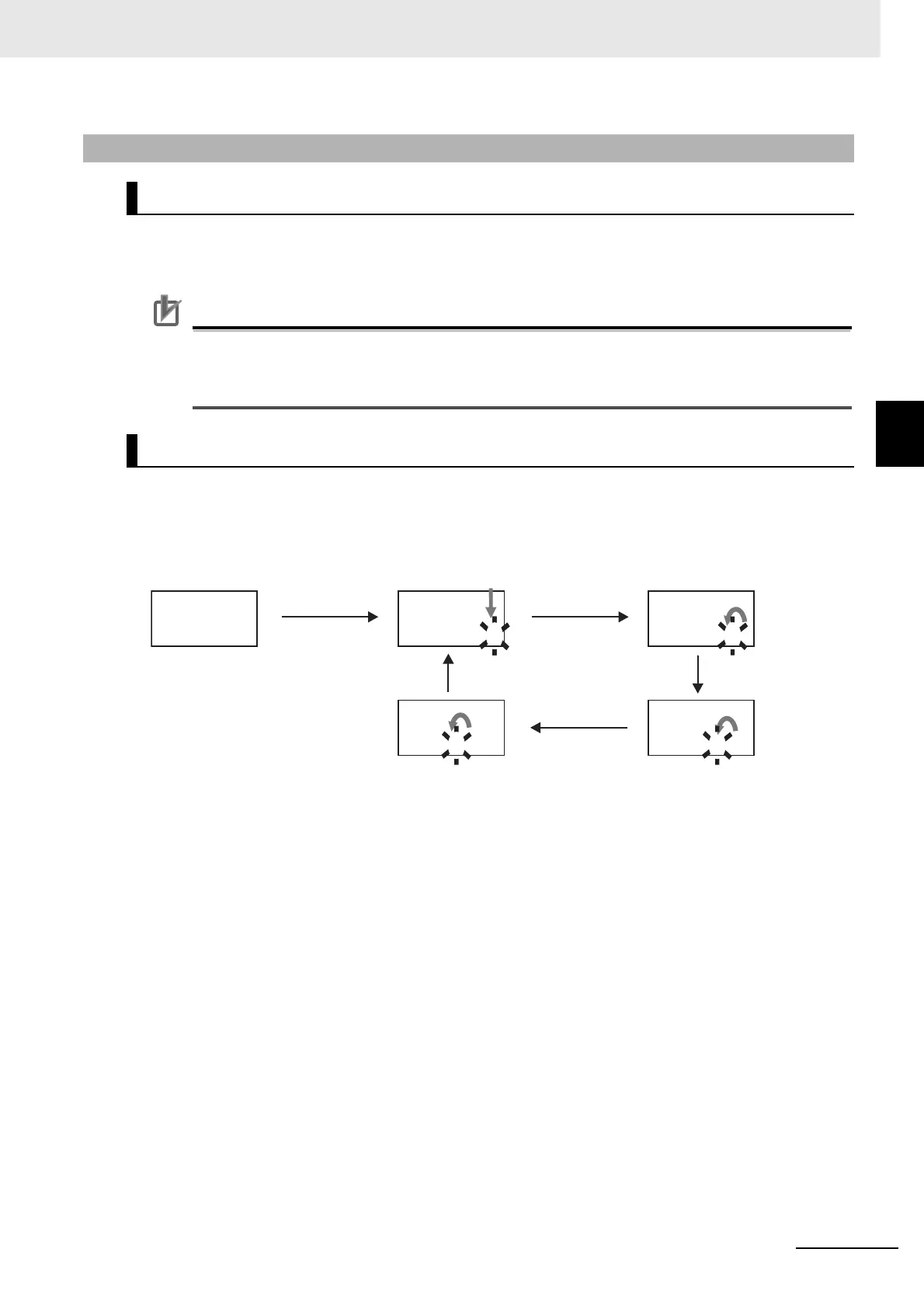

Moving between Digits (Digit Shift Key)
al-1
23
al-1
23
al-1
0023
al-1
23
al-1
0023
al-1
23
al-1
0023
al-1
23
al-1
0023
Press the S Key. Press the S Key.
Press the S Key.
Press the S Key. Press the S Key.
To Next Page
