Omron E5CC-800 User Manual

3 Part Names and Basic Procedures
3 - 4
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
3-3 Part Names, Part Functions, and
Setting Levels

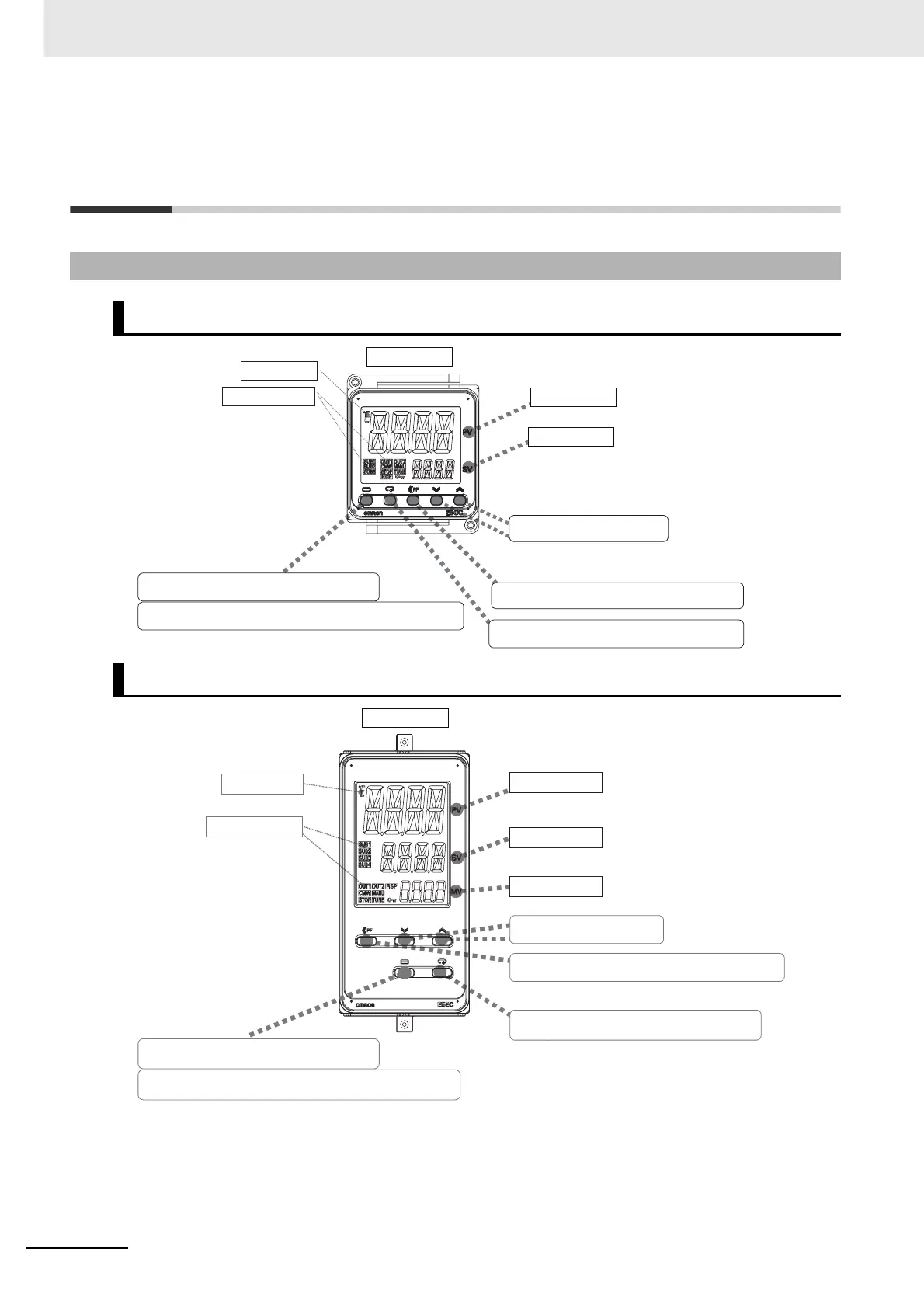

3-3-1 Part Names and Functions
E5CC
E5EC
Press O Key once to go to Adjustment Level.
Press O Key for at least 3 seconds to go to Initial Setting Level.
Use the M Key to change to another parameter.
Operation indicators
No. 1 display
No. 2 display
Temperature unit
Use S Key to change the digit (default setting).
Use the U D Keys to set the
parameter.
Front panel
PV or specified parameter
SP or specified parameter value
Operation indicators
Temperature unit
Use S Key to change the digit (default setting).
Use the M Key to change to another parameter.
No. 1 display
No. 2 display
No. 3 display
Press O Key once to go to Adjustment Level.
Press O Key for at least 3 seconds to go to Initial Setting Level.
PV or specified parameter
SP or specified parameter value
Manipulated value or other value
Use the U D Keys to set
the parameter.
Front panel

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
