A - 5
A Appendices
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
A-2 Current Transformer (CT)
A
A-2 Current Transformer (CT)
*1 The maximum continuous current of the E5CC/E5EC is 50 A.
• E54-CT1
• E54-CT3
A-2-1 Specifications
Item Specifications
Model number E54-CT1 E54-CT3
Max. continuous current
50 A
120 A
*1
Dielectric strength 1,000 VAC (for 1 min)
Vibration resistance
50 Hz, 98 m/s
2
Weight Approx. 11.5 g Approx. 50 g
Accessories None Armature (2), Plug (2)

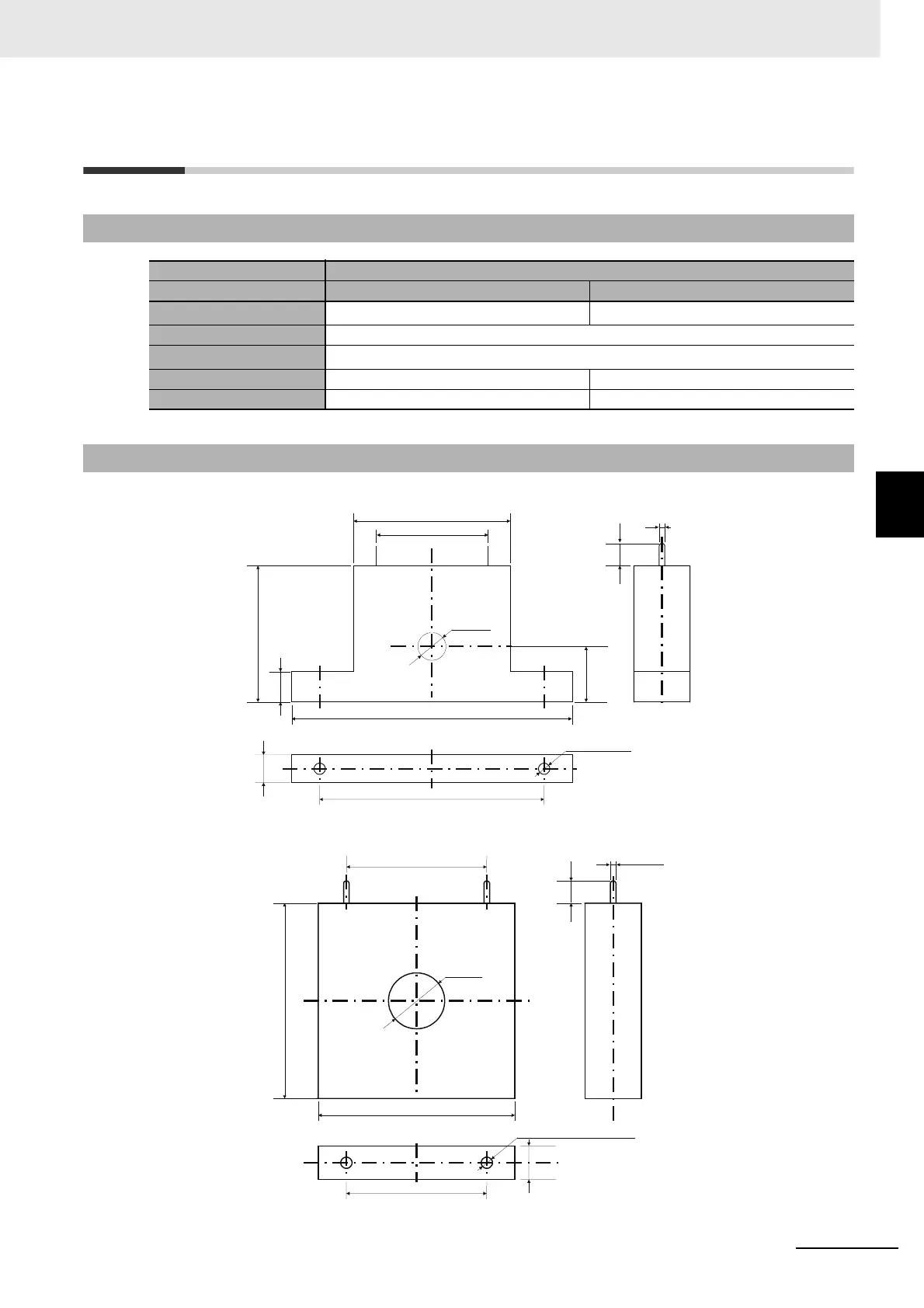

A-2-2 Dimensions (Unit: mm)
21
15
25
3
10
30
40
2.8
5.8 dia.
Two, 3.8 dia.
10.5
7.5
30
40
15
9
12 dia.
Two, M3 holes, depth: 4
2.36 dia.
40
30

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
