3 - 9
3 Part Names and Basic Procedures
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
3-3 Part Names, Part Functions, and Setting Levels
3
3-3-4 E5CC/E5EC Setting Levels

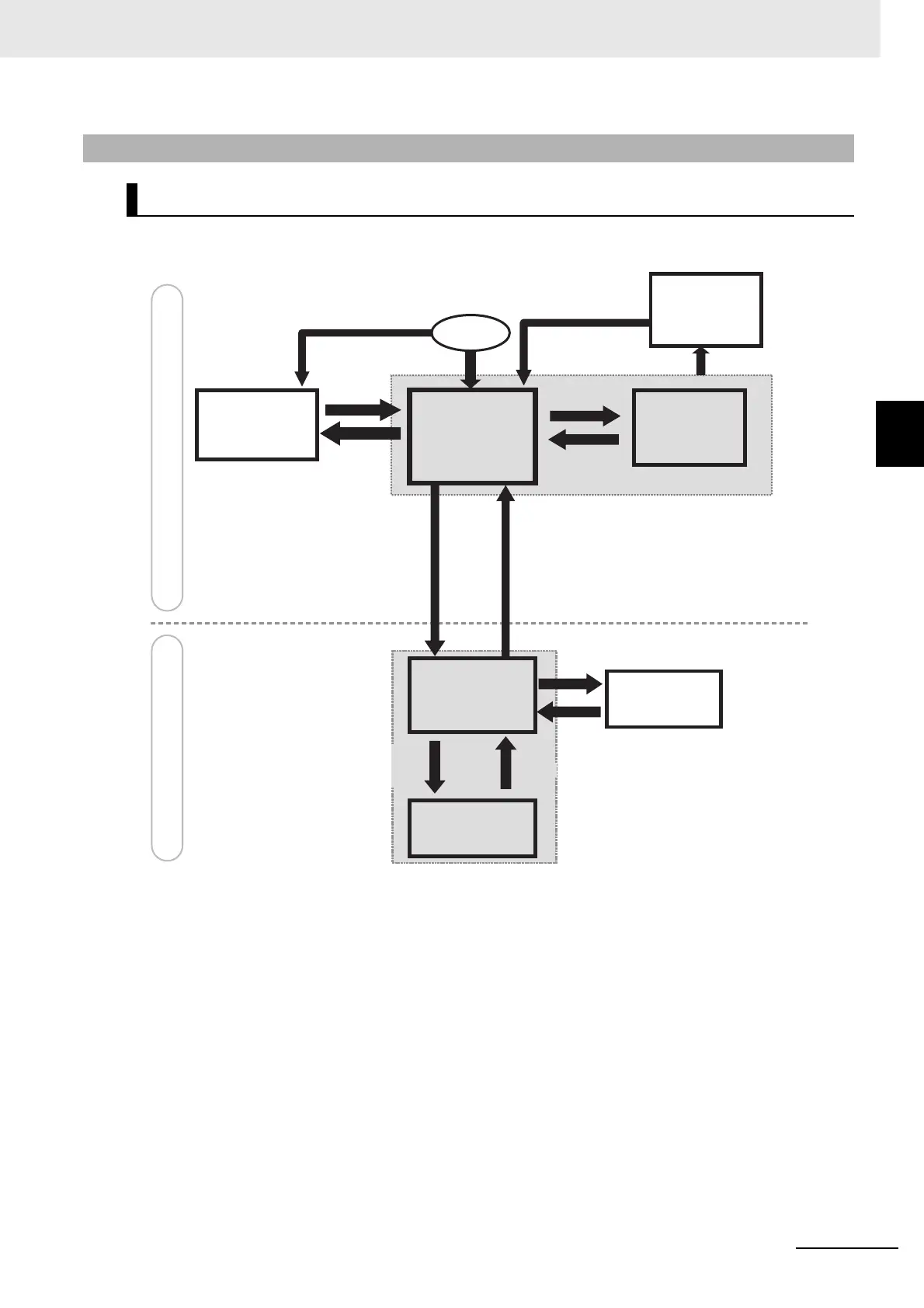

The following figure gives an overall image of the setting levels. The setting levels consist of the basic
setting levels (shaded below) and the other setting levels (not shaded).
*1 To use a key procedure to move to Manual Control Level, set the Auto/Manual Select Addition parameter to
ON and set the PF Setting parameter to a-m (Auto/Manual).
*2 The No. 1 display will flash when the keys are pressed for 1 s or longer.
3-3-4 E5CC/E5EC Setting Levels
Moving between Setting Levels
Advanced Function
Setting Level
Power ON
Advanced settings
Initial Setting Level
Operation Level
Adjustment Level
O Key for
at least 1 s
Press O Key once.
O Key for
at least 3 s
*2
O Key for at least 1 s
or S Key for at least 1 s
Protect Level
Manual Control
Level
Press O Key once.
O Key for at least 1 s
Operation in progress
Stopped
Used for SP, alarm
values, and other basic
settings and monitoring.
Used to change
adjustment parameters
(PID constants, control
hysteresis, etc.).
Used to set protection
for operations.
Used to set the input
type and other basic
settings.
Used to set the MV
manually.
Only when Manual Mode was
used just before power OFF
O + M Keys
for at least 1 s
Press O + M Keys
for at least 3 s.
*2
Level changes
automatically.
O
Key for at least 3 s
while A-M is
displayed
*2
or
S
Key
for at least 1 s
*1
Release protection and then
enter the password (−169)
for the amoV (Move to
Advanced Function Setting
Level) parameter.
Press O Key once.
Press O Key once (models with communications only).
Communications
Setting Level
Communications settings
To Next Page
