3 Part Names and Basic Procedures
3 - 10
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
The following figure shows the basic setting levels (shaded).
z Operation Level
This level is displayed automatically when the power supply is turned ON.
This level is used for the SP, alarm values, and other basic settings and monitoring.
Normally, select this level for operation.
z Adjustment Level
This level is used to set the PID constants and to perform tuning, such as autotuning.
In Adjustment Level, the settings of the parameters can be changed during operation. This is not
possible in the Initial Setting Level or Advanced Function Setting Level.
z Initial Setting Level
This level is used for the most basic settings.
It is used to set the input type and other parameters.
Use it to set the input type, alarm type, and other basic settings.
z Advanced Function Setting Level
This level is used for advanced settings.
Use it to assign functions to the control outputs and auxiliary outputs.
You will not be able to enter the Advanced Function Setting Level with the default settings.
To enter the Advanced Function Setting Level, first disable Initial Setting/Communications Protection
and then enter the password (−169) at the amov (Move to Advanced Function Setting Level)
parameter in the Initial Setting Level.

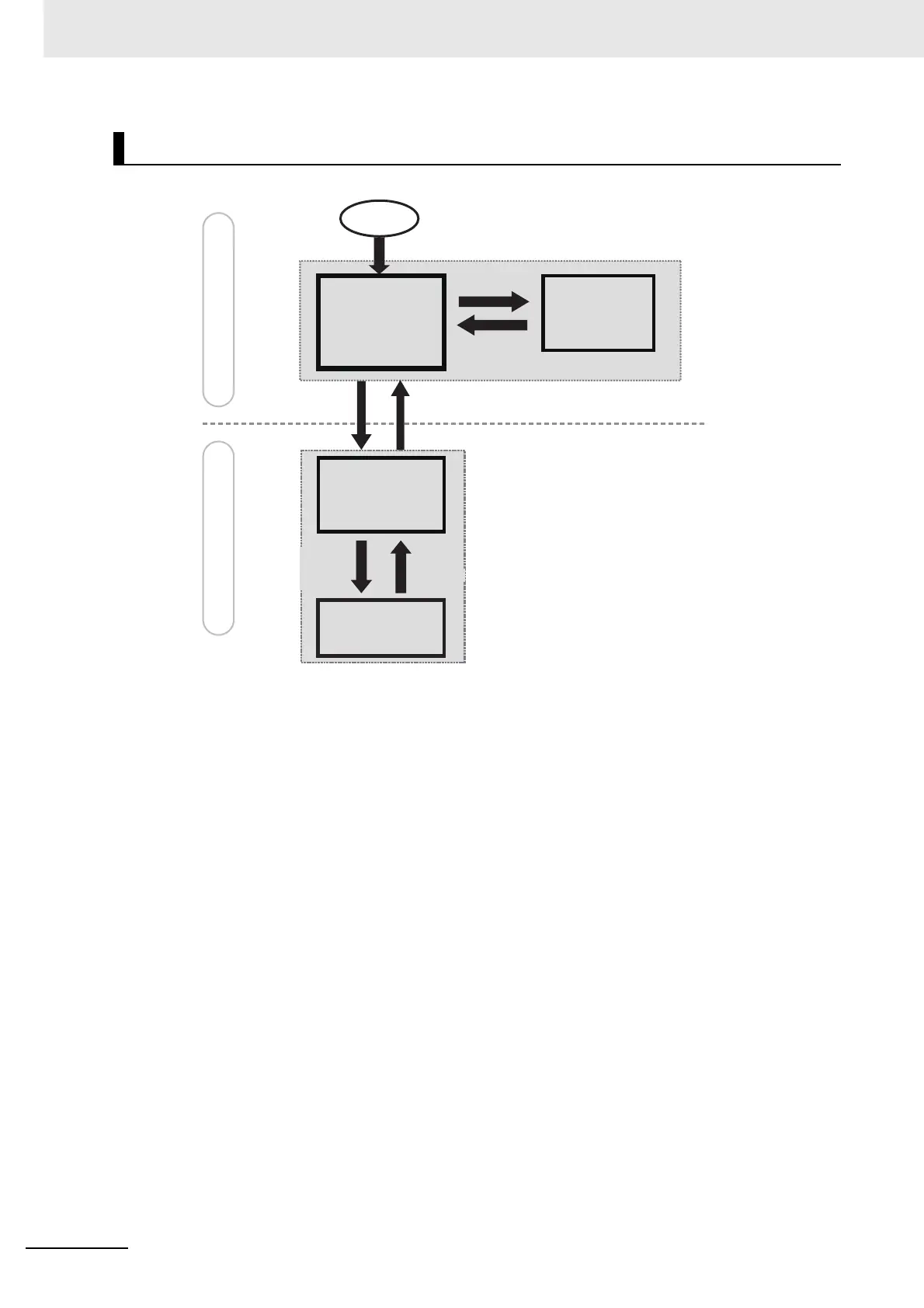

Basic Setting Levels
Advanced Function
Setting Level
Power ON
Advanced settings
Initial Setting Level
Operation Level
Adjustment Level
O Key for at least 1 s
Press O Key once.
Press O Key once.
Level changes automatically.
O Key for at least 1 s
Stopped
Used for SP, alarm
values, and other basic
settings and
monitoring.
Used to change
adjustment parameters
(PID constants, control
hysteresis, etc.).
O Key for at least
3 s (No. 1 display
will flash after 1 s.)
Used to set the input
type and other basic
settings.
Release protection and then
enter the password (−169) for
the amoV (Move to Advanced
Function Setting Level)
parameter.
Operation in progress
To Next Page
