2 - 9
2 Preparations
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
2-2 Using the Terminals
2

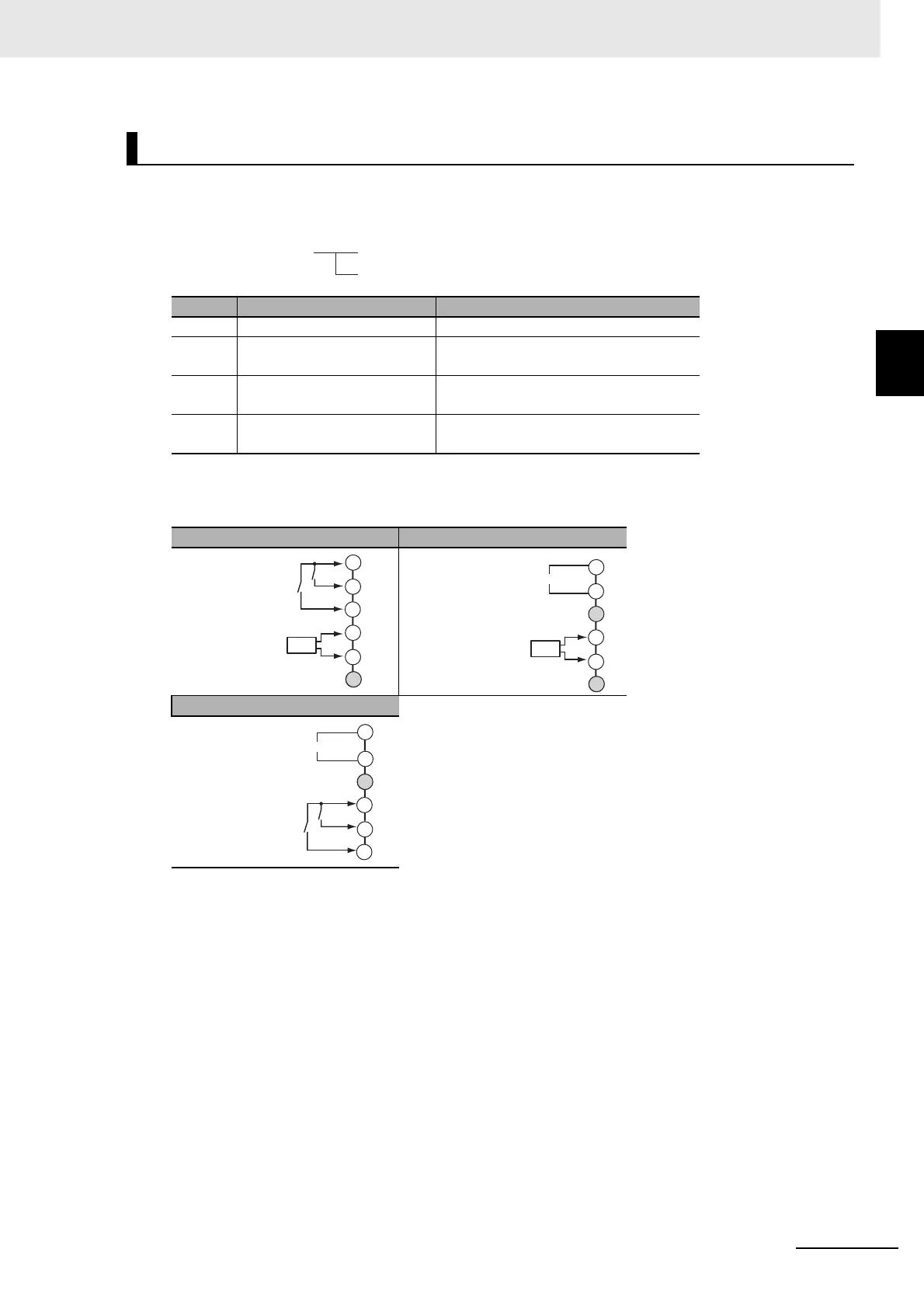

2-2-1 E5CC Terminal Block Wiring Example
z Model Numbers
The options specification of the E5CC is given in the following location in the model number.
z Terminal Details
Do not connect anything to the terminals that are shaded gray.
Options
Code Specification Remarks
800 None
801 Event inputs 1 and 2, and
CT1
802 Communications (RS-485)
and CT1
The communications protocol is
CompoWay/F or Modbus-RTU.
804 Communications (RS-485),
and event inputs 3 and 4
The communications protocol is
CompoWay/F or Modbus-RTU.
801 802
804
E5CC-@@ @ @ @ M-8@@
Options
13
EV1
EV2
CT1
Event inputs
CT
14
18
15
16
17
B(+)
A(−)
RS-485
CT1
CT
Communications
13
14
18
16
17
15
EV3
EV4
B(+)
A(−)
RS-485
Event inputs
Communications
13
14
15
18
16
17

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
