Omron E5CC-800 User Manual

2 - 5
2 Preparations
Digital Temperature Controllers (Simple Type) User’s Manual (H211)
2-1 Installation
2
2-1-3 Mounting
z E5EC
Mounting to the Panel
(1) For waterproof mounting, waterproof packing must be installed on the Controller.
Waterproofing is not possible when group mounting several Controllers. Waterproof
packing is not necessary when there is no need for the waterproofing function.
(2) Insert the E5EC into the mounting hole in the panel.
(3) Push the adapter from the terminals up to the panel, and temporarily fasten the E5EC.
(4) Tighten the two fastening screws on the adapter. Alternately tighten the two screws little by
little to maintain a balance. Tighten the screws to a torque of 0.29 to 0.39 N·m.

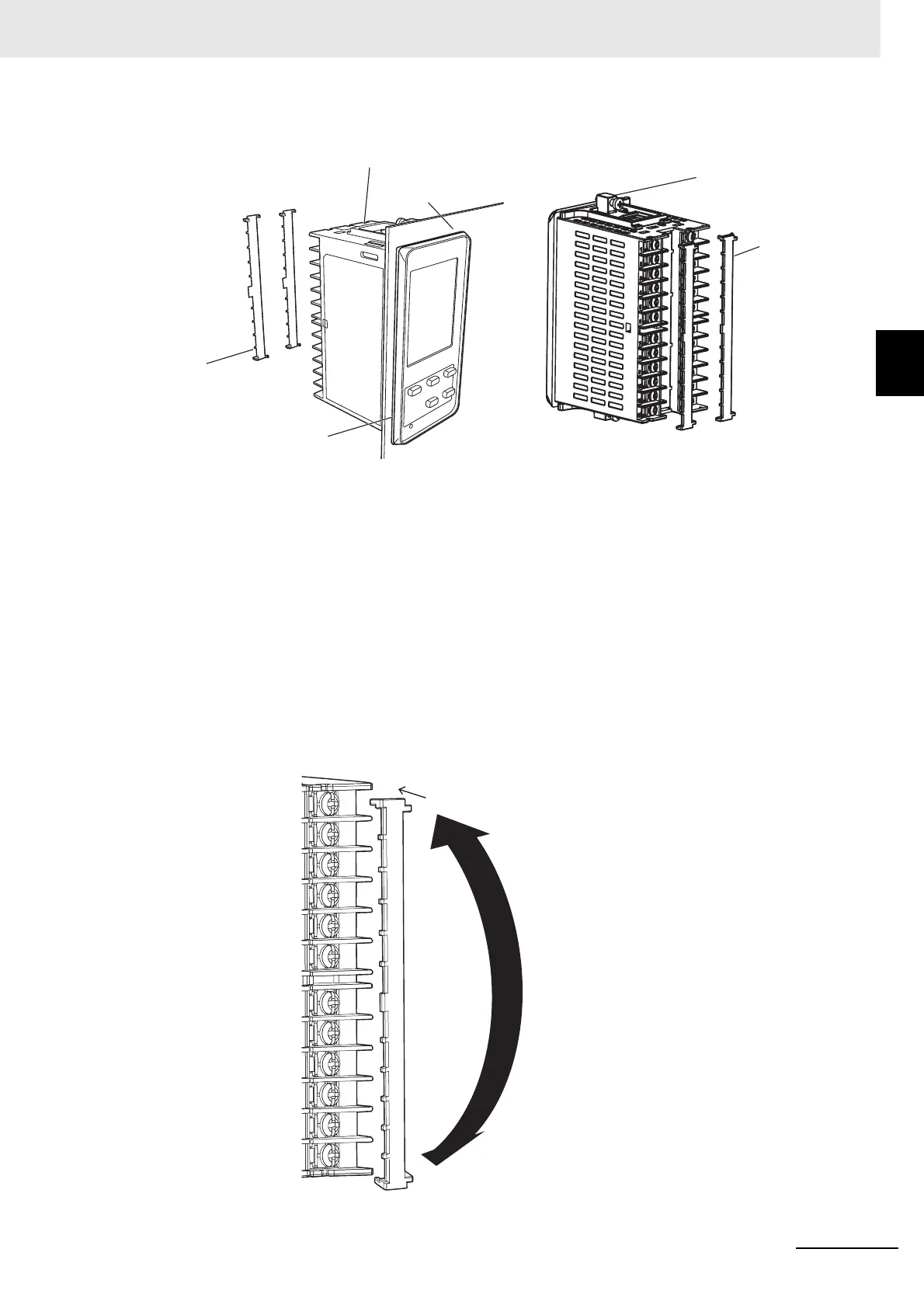

Mounting the Terminal Cover
Slightly bend the E53-COV24 Terminal Cover to attach it to the terminal block as shown in the following
diagram. The Terminal Cover cannot be attached in the opposite direction.
E53-COV24
Terminal Cover
Adapter
Waterproof packing
Panel
E53-COV24
Terminal Cover
Adapter
Slightly bend the
E53-COV24
Terminal Cover in
the direction shown
by the arrows to
attach it to the
terminal block.
Enlarged Illustration of Terminal Section

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
