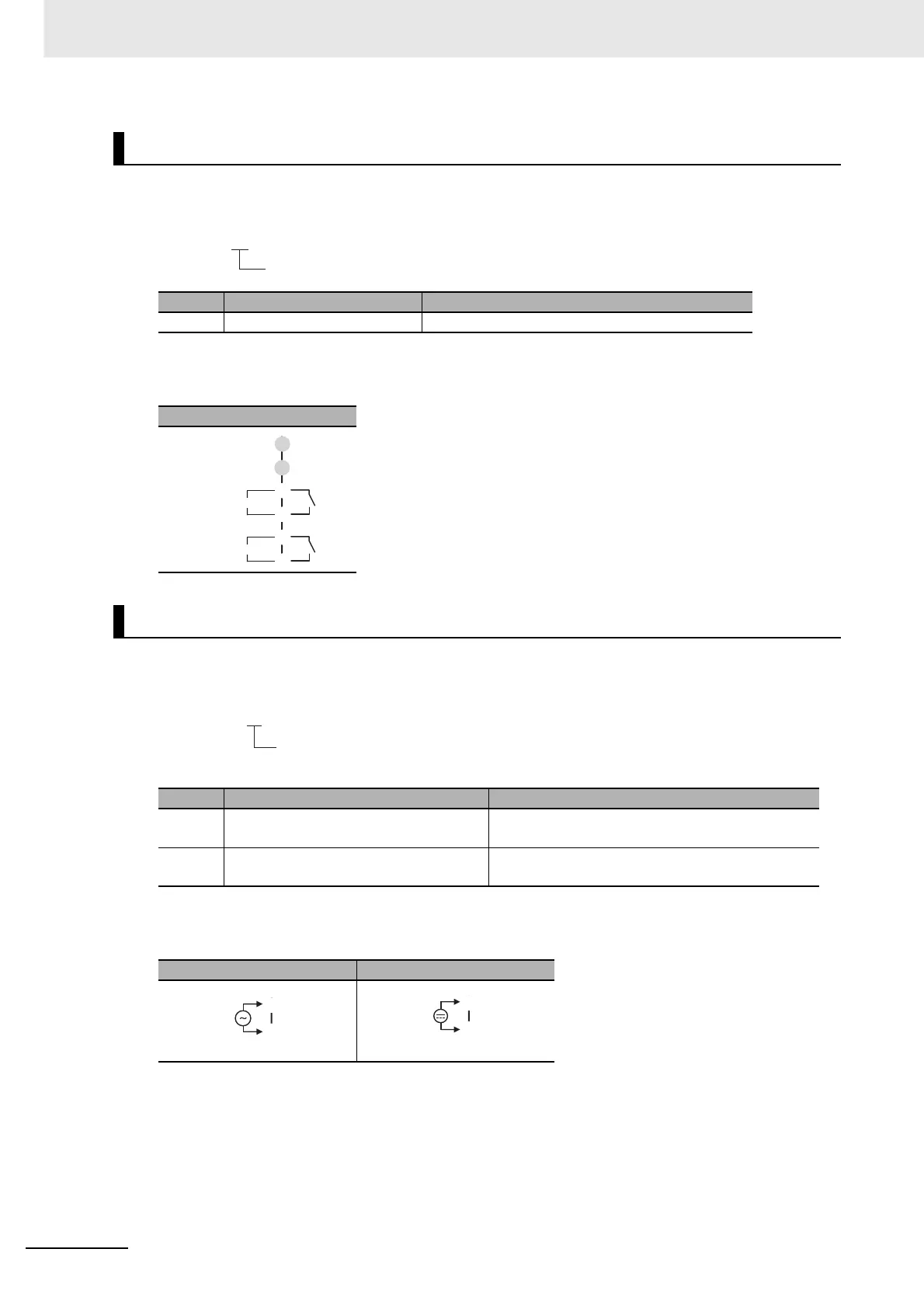

z Model Numbers
All E5EC models have two auxiliary outputs, so the code in the model number is always “2.”
z Terminal Details
Do not connect anything to the terminals that are shaded gray.
z Model Numbers
The input power supply specification of the E5EC is given in the following location in the model number.
The codes that are given in the following table show the specification.
z Terminal Details
Details on the input power supply terminals are shown below.
Auxiliary Outputs
Code Auxiliary outputs Specification
2 2 auxiliary outputs SPST-NO, 250 VAC, 3 A
2 auxiliary outputs
Input Power Supply
Code Specification Power consumption
A 100 to 240 VAC (50/60 Hz) Option number 800: 6.6 VA max.
Other option numbers: 8.3 VA max.
D 24 VAC, 50/60 Hz
24 VDC (no polarity)
Option number 800: 4.1 VA max./2.3 W max.
Other option numbers: 5.5 VA max./3.2 W max.
100 to 240 VAC 24 VAC/DC
No. of auxiliary outputs
E5EC-@@ 2 @ S M-8@@
G
H
I
J
K
L
Auxiliary output 2
Auxiliary output 1
Input power supply
E5EC-@@ 2 @ S M-8@@
A
B
(no polarity)
A
B
