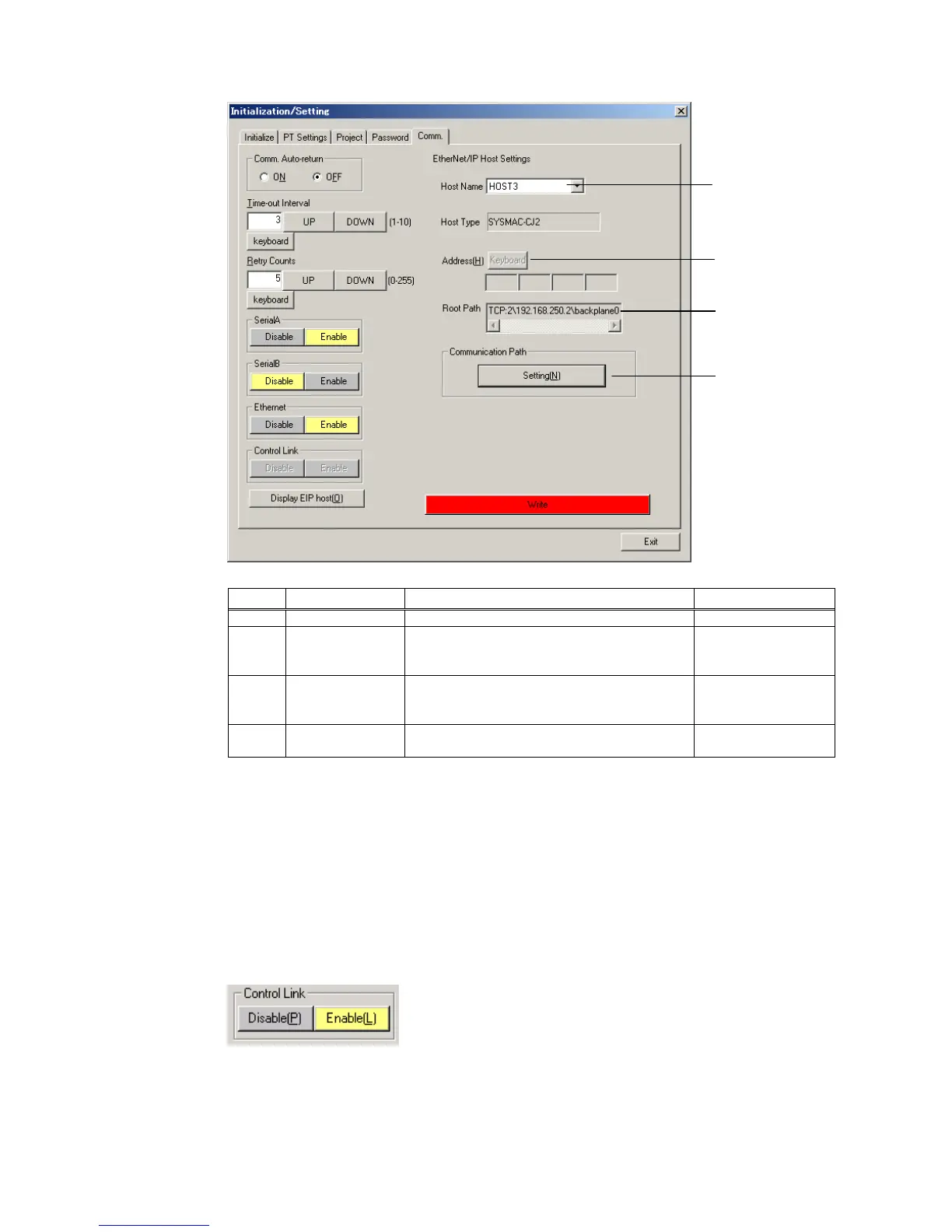

5-6 Initialization/Setting Screen
5-42
No. Item Function Setting
1 Host Type Displays the host type. Display only
2 Address Sets the IP address of the host (if IP address is
selected as the method for specifying the
communications destination).
0.0.0.0 to
255.255.255.255
3 Root Path Displays the root path of the host (if root path
is selected as the method for specifying the
communications destination).
Display only
4 Communication
Path
Displays an EIP host that is on the EtherNet/IP
network.
Root path
specification
4. After making the settings, click the Write Button to save the settings. (For details on the
Write Button, refer to Writing, above.)
5. The settings will be enabled when the NS-Runtime is restarted.
Controller Link
This function is used to set and display whether to use Controller Link and detailed
conditions.
Make the Controller Link settings by using operations from the Comm. Tab Page as follows.
1. Select Disable or Enable for the Controller Link.
1
2
3
4
To Next Page
