3-8 Installing the Controller Link Interface Unit
3-51
z

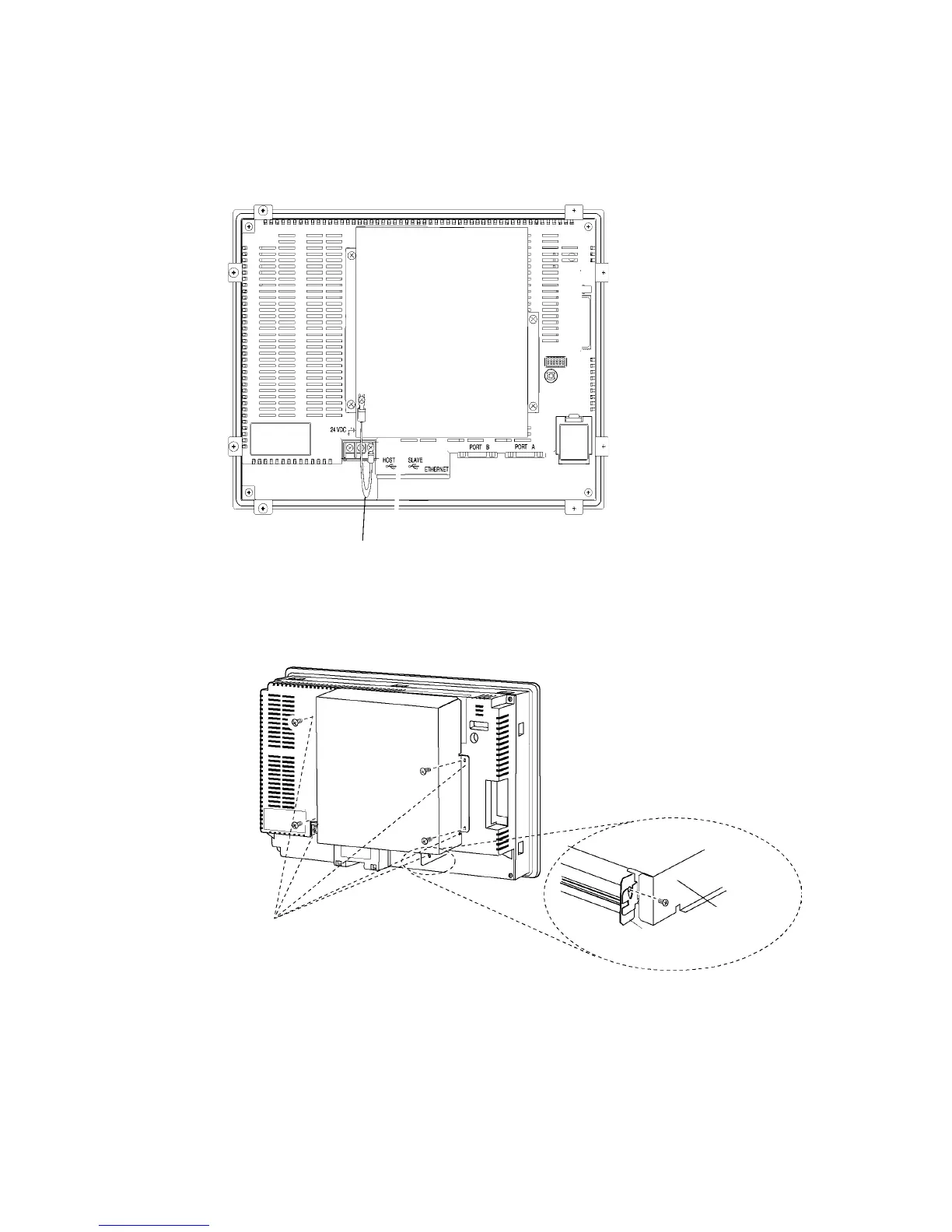

Connecting the Cable
Connect the functional ground terminal of the PT
and the cov
er with the cable to pre
vent
malfunction due to noise.
Connect with the c
able provided.
z
Removing Contr
oller Link Interface Unit
1.
Remov
e the cov
e
r
.
Remove thes
e screws and
remove
the co
ver.
Cover
Controller Link
Support
Board
104
106
