6-8 Special Screens
6-51

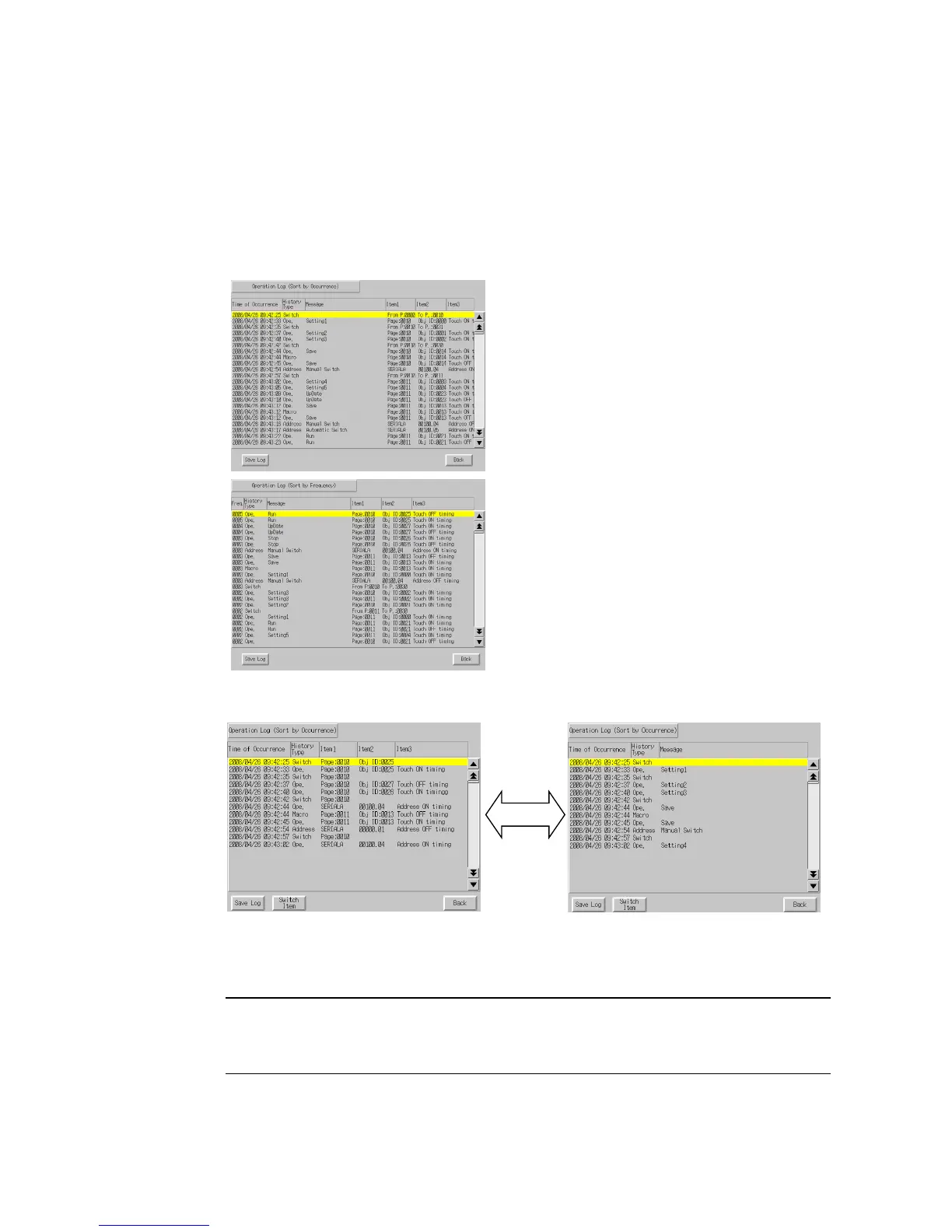

6-8-2 Operation Log
This function displays the operation log. The operation log can be displayed in order of oc-
currence or frequency.
Display operation log data by using operations from the Special Screen Tab Page in the Sys-
tem Menu, as follows:
1. Press the Operation Log (Sort by Occurrence) Button or Operation Log (Sort by Frequency)
Button to display the operation log contents.
2. With the NS10, NS8, or NS5, press the Switch Item Button to change the items that are dis-
played.
3. Press the Save Log Button. The operation log data will be saved to the Memory Card as a CSV
file.
4. Press the Back Button to return to the Special Screen.
Reference • Refer to 6-2-4 Initializing and Saving the Operation Log in this manual and Operation
Log in 2-20 Special Functions in the Programming Manual for details on the operation
log.
• Project versions 8.0 and higher support setting operation log messages.
