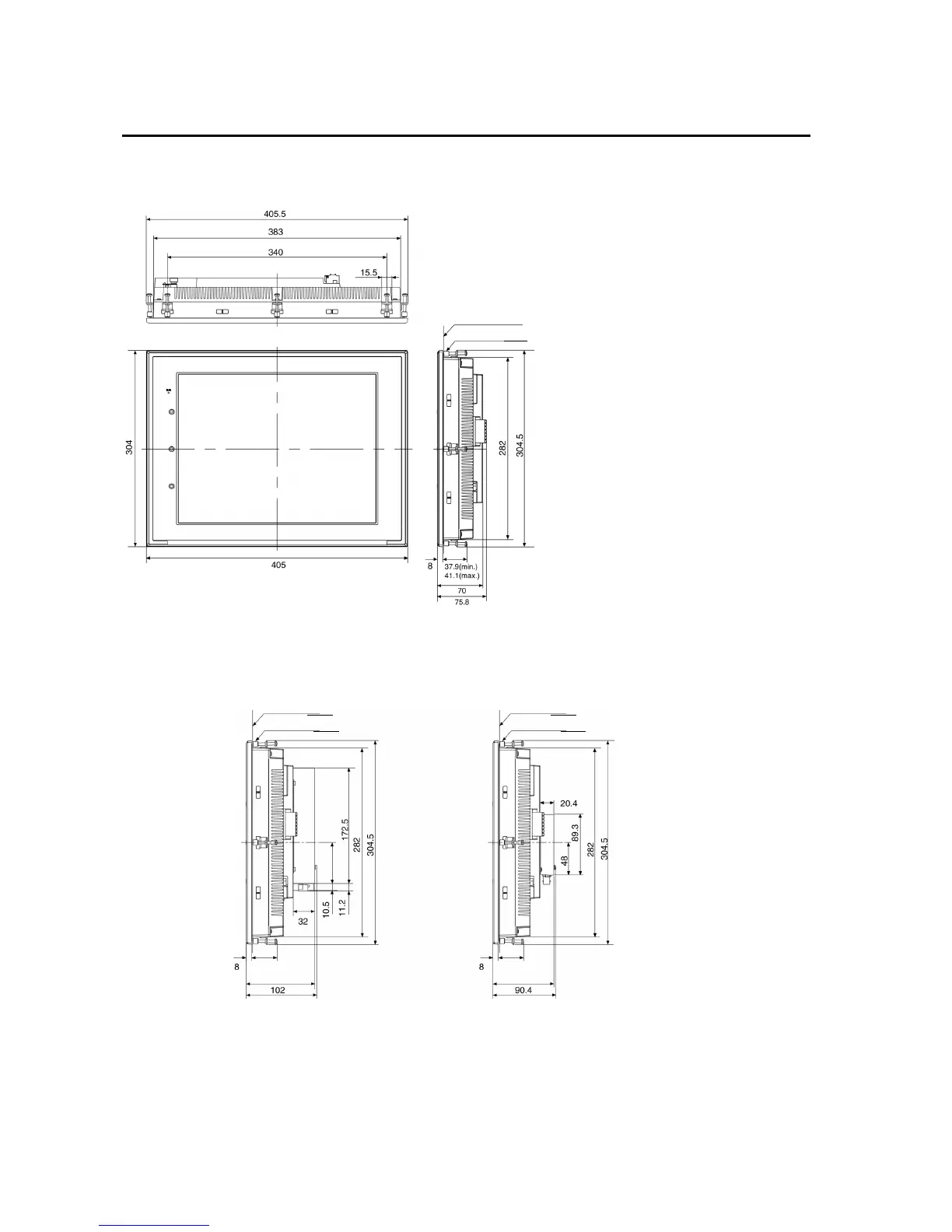

Appendix 2 Dimensions
A-12
Appendix 2
Dimensions
●
NS15
(Includes Mounting Dimensions)
Mounting panel
Mounting bracket
Note:
The NS15 conf
orms to version-2 hardware standards
.
With Controller Link Interface Unit M
ounted
With
Video Input Unit Mounted
Mounting panel
Mounting bracket
Mounting panel
Mounting bracket
271
273
