2-2 Part Names and Functions
2-8
2-2 Part Names and Functions
The part names and functions of the PT are described here.

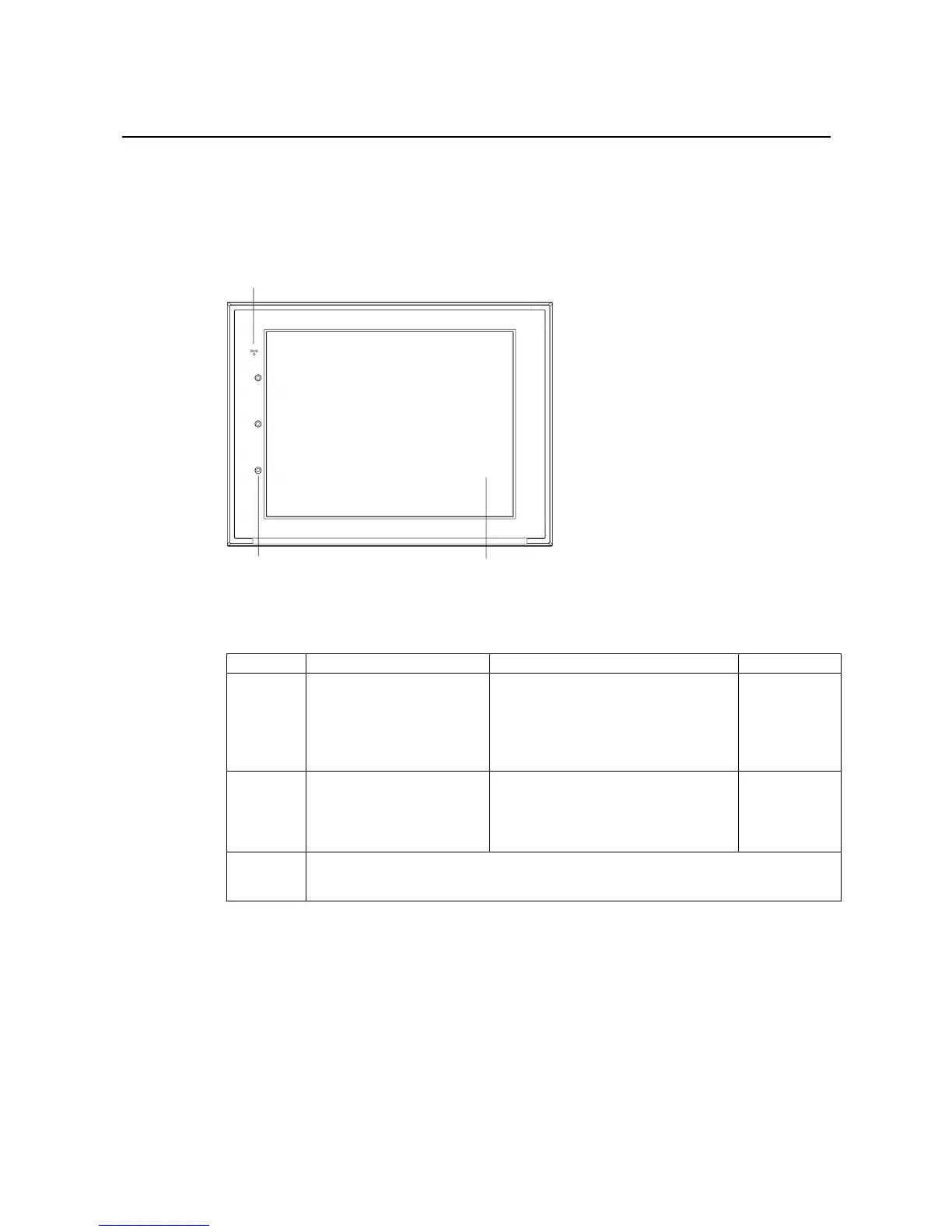

NS15 Front Panel
Function Keys
The Function Keys are an added
safety measure that are used to
require the operator to press an
input object on the touch panel twice
to enable function keys.
Display
NS15: 15-inch High-
luminance TFT Color LCD
RUN Indicator
Lights or flashes to indicate
the status of the PT
Indicator Green Orange Red
Lit PT is operating normally.
• The file system check that is per-
formed immediately after the power
is turned ON is in progress.
• The battery power is low, or the bat-
tery is not connected and the PT is
operating normally.
An error oc-
curred at
startup.
Flashing Memory Card transfer ended
normally.
A backlight error occurred
immediately after power was
turned ON.
Memory Card transfer in progress. Memory Card
transfer ended
abnormally.
Not lit
• Power is not being supplied to the PT.
• The fuse is broken.
• The system program is damaged and the system cannot be booted.
To Next Page
