3-7 Installing the Video Input Unit
3-38
3-7-4 Connecting to Video Input Connectors
Use the following method to connect cameras to the Video Input Unit mounted to the PT.
Precautions
for Safe Use
The tensile load of the cable is 30 N maximum. Do not exceed maximum load
z Connecting to Video Input Connectors

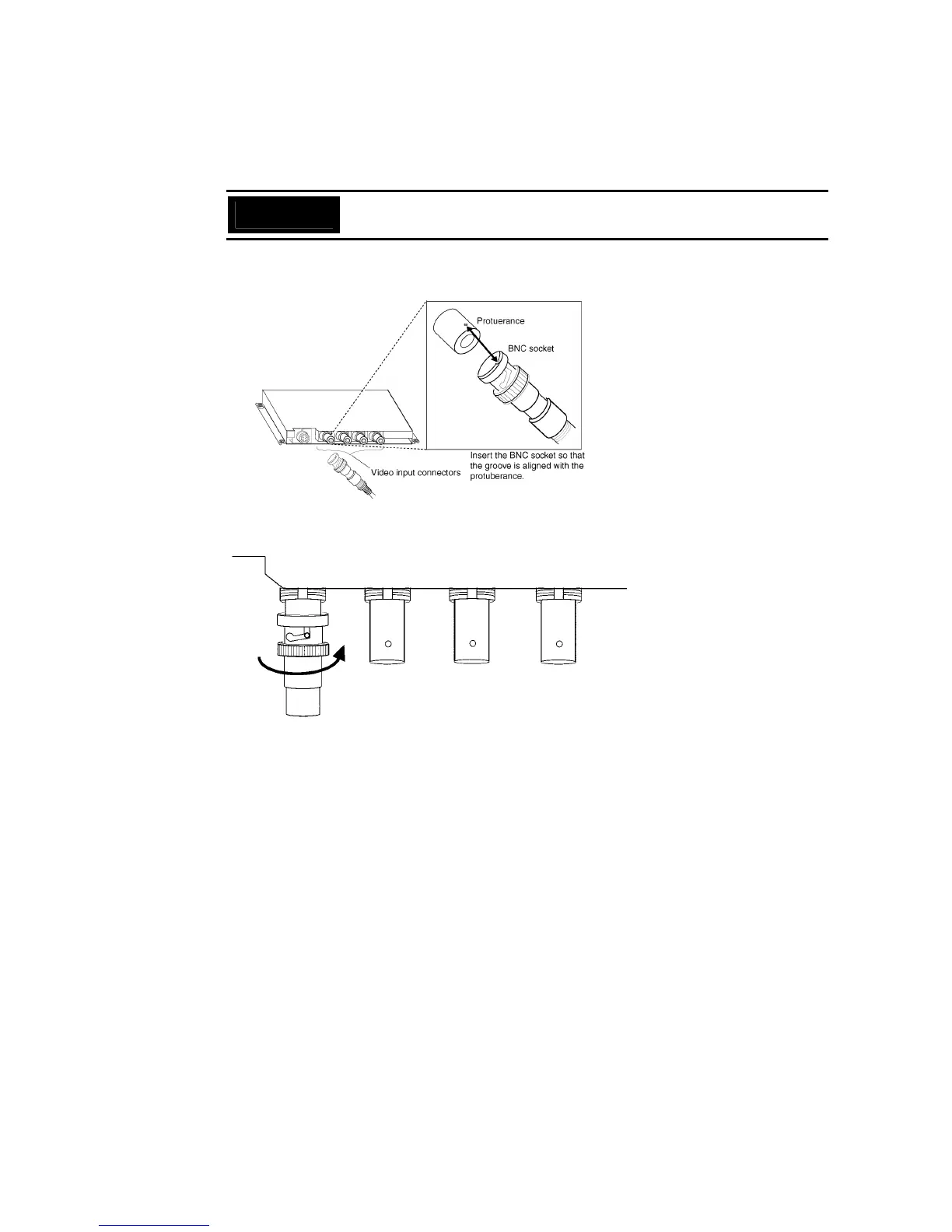

1. Insert the BNC socket on the camera’s video output cable into a video input connector.
2. After inserting the BNC socket, twist it clockwise until it locks into place.
Twist clockwise.
