6-8 Special Screens
6-54
The De
vice Monitor Screen is displa
yed b
y
using operations from the Special Screen
T
ab
P
age from the System Menu, as f
ollows:

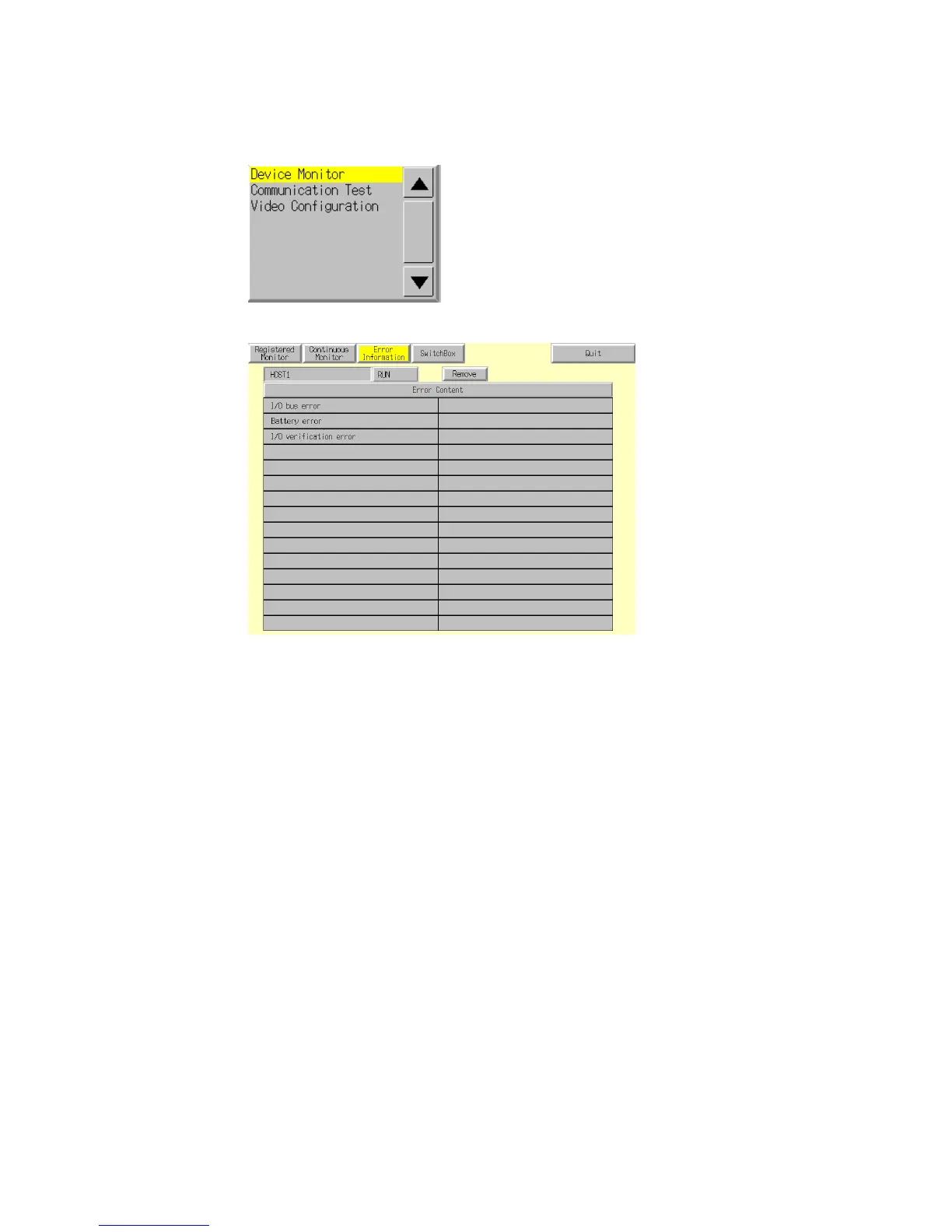

1. Select
Device Monitor
from the
Special Functions
List Box, and press the
START
Button.
2.
The Device Monitor Screen will be displayed.
3. Press
the
Quit
Button to return to the Special Screen.
