3-7 Installing the Video Input Unit
3-35

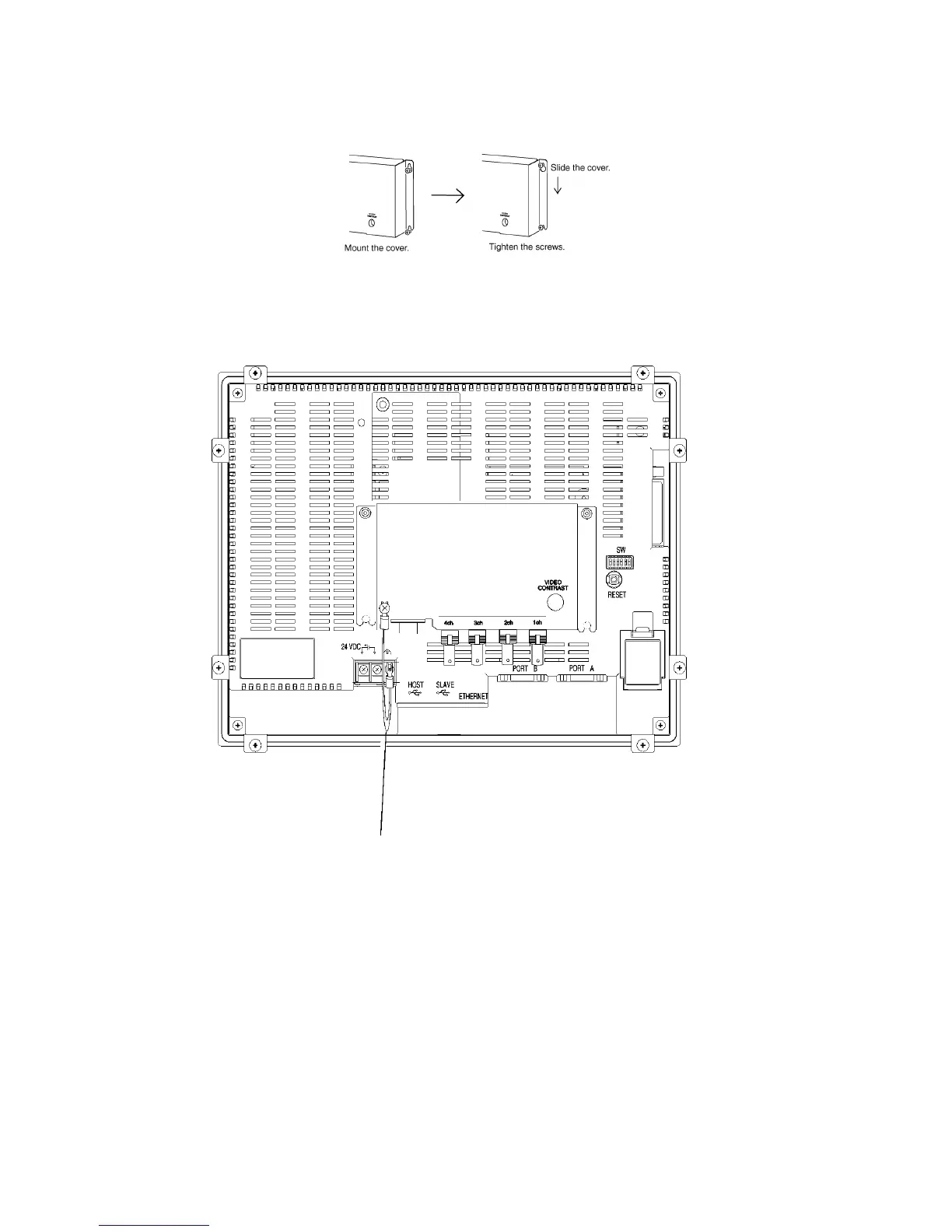

Slide the cov
er do
wnward and tighten the scre
ws.
z
Connecting the Cable
Connect the functional ground terminal of the PT
and the cov
er with the cable to pre
vent
malfunction due to noise.
Connect with the c
able provided.
