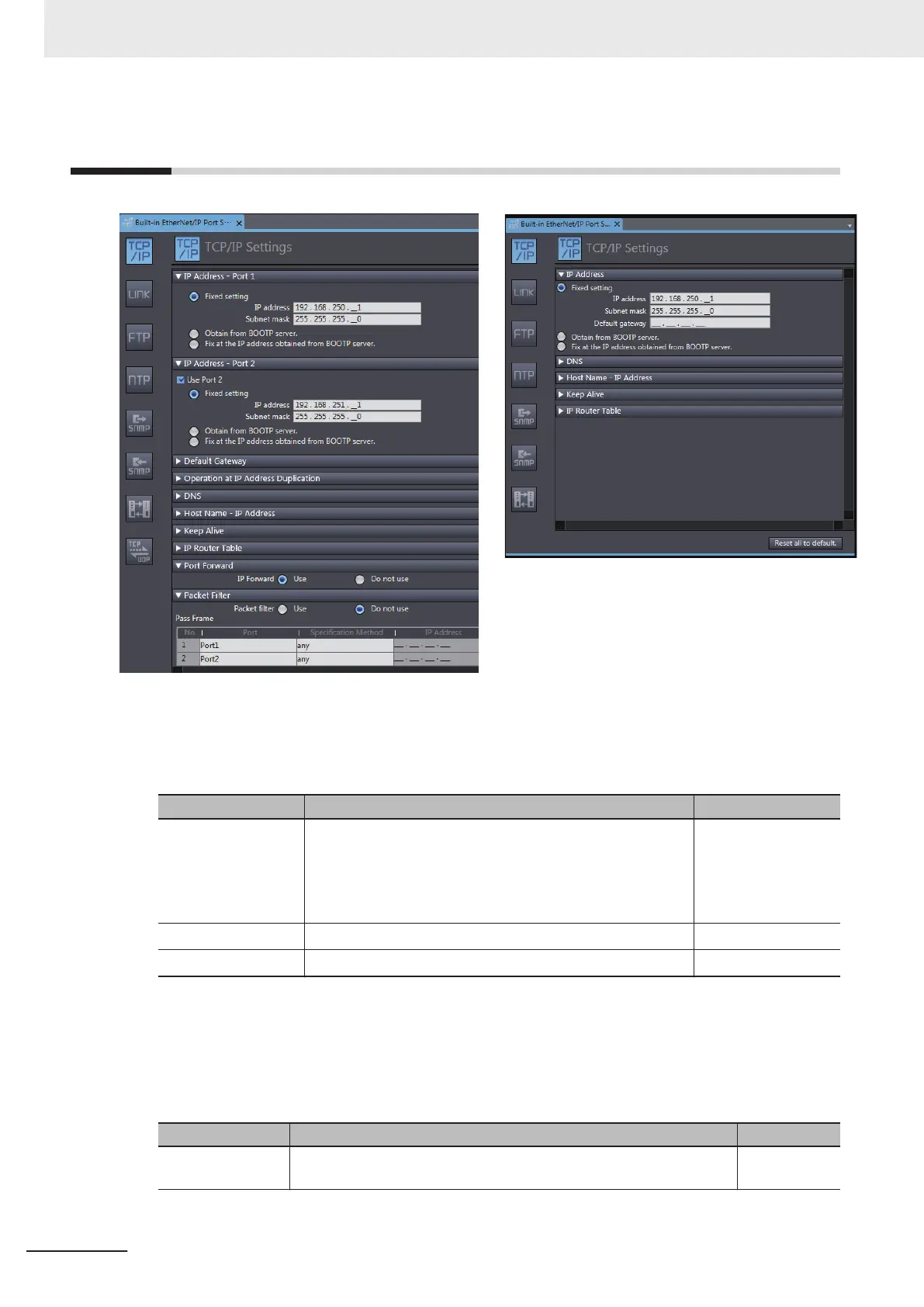

TCP/IP Settings Display
NX-series CPU Unit NJ-series CPU Unit

IP Address - Port 1 (NX-series CPU Unit)
Set an IP address for the built-in EtherNet/IP port 1.
Setting Description Default
IP address setting
method
Select one of the following IP address setting methods for
the built-in EtherNet/IP port 1.
• Fixed setting
• Obtain from BOOTP server
.
• Fix at the IP address obtained from BOOTP server.
Fixed setting
IP address
*1
Set the IP address for the built-in EtherNet/IP port 1.
*2
192.168.250.1
Subnet mask
*2
Set the subnet mask for the built-in EtherNet/IP port 1. 255.255.255.0
*1. These settings are required if you set IP address setting method to Fixed setting.
*2. Refer to 4-2 Built-in EtherNet/IP Port IP Address Settings on page
4-5 for details on setting IP address-
es.

IP Address - Port 2 (NX701 and NX102 CPU Units)
Set an IP address for the built-in EtherNet/IP port 2.
Setting Description Default
Use Port 2 Select the check box to use the built-in EtherNet/IP port 2. Selected
(use)
5 Sysmac Studio Settings for the Built-in EtherNet/IP Port
5-2
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
