4-2
Built-in EtherNet/IP Port IP Address
Settings
4-2-1
Determining IP Addresses
Use one of the following methods to set an IP address of a built-in EtherNet/IP port.

Setting a User-specified IP Address
If you need to change the default IP address of the built-in EtherNet/IP port or if you need to use
the built-in EtherNet/IP port with another EtherNet/IP node, set the IP address to a required value.
For an NX701 CPU Unit and an NX102 CPU Unit, you cannot set IP addresses that make two built-
in EtherNet/IP ports belong to the same network.


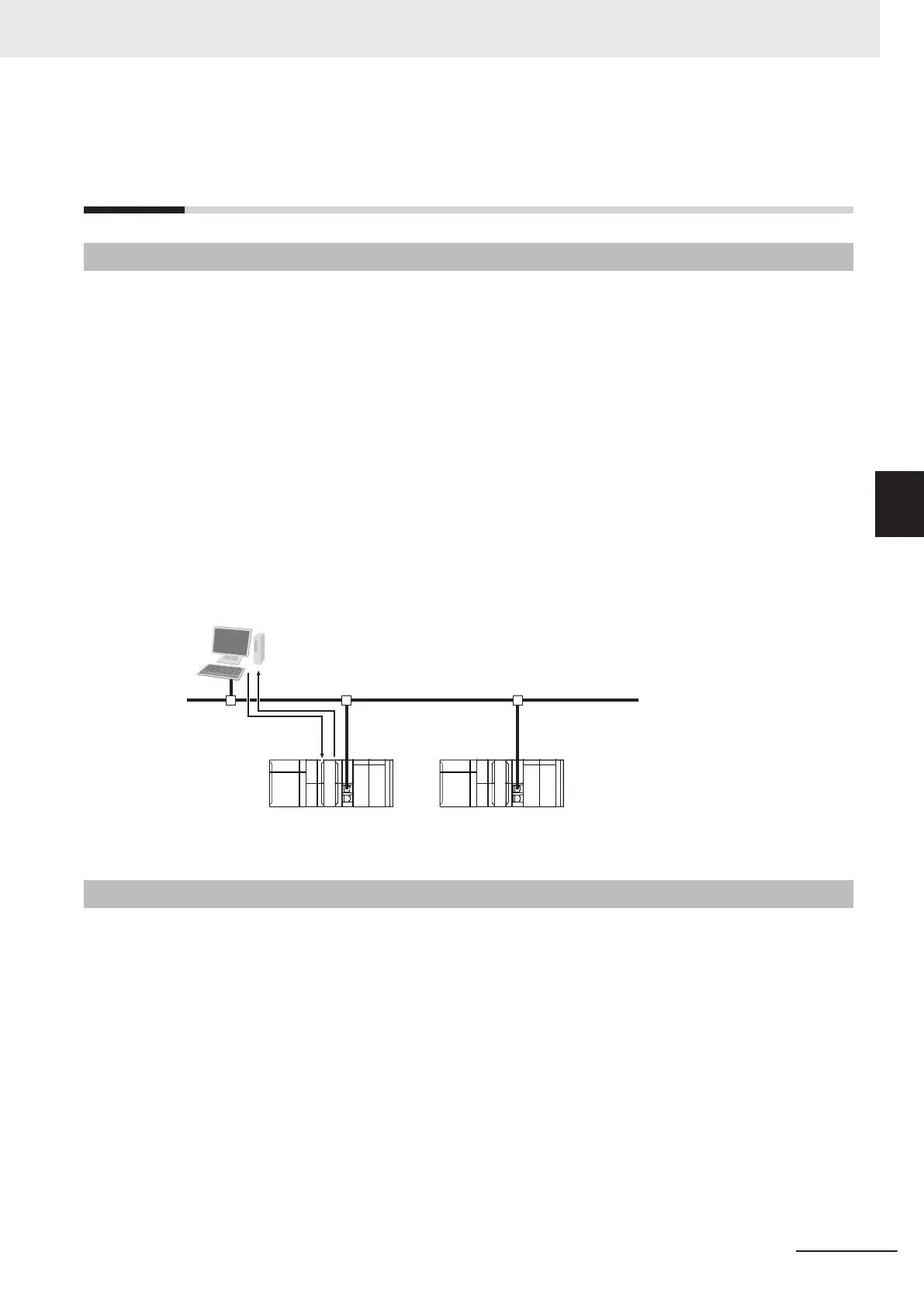

Automatically Obtaining an IP Address from the BOOTP Server
There are two methods to automatically obtain an IP address.
• Obtain an IP address from the BOOTP server each time the power is turned ON.
• Obtain an IP address from the BOOTP server at initial power on and set the address as a fixed
IP address.
BOOTP client
BOOTP command
BOOTP server
NJ/NX-series Controller NJ/NX-series Controller
Ethernet
IP address
4-2-2
Setting IP Addresses
Use the Sysmac Studio to set an IP address of the built-in EtherNet/IP port.
1 Select a method for setting the IP address.
Make the following settings on the TCP/IP Settings Display of the Built-in EtherNet/IP Port
Settings T
ab Page in the Controller Setup to set the local IP address.
4 Determining IP Addresses
4-5
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
4-2 Built-in EtherNet/IP Port IP Address Settings
4
4-2-1 Determining IP Addresses
