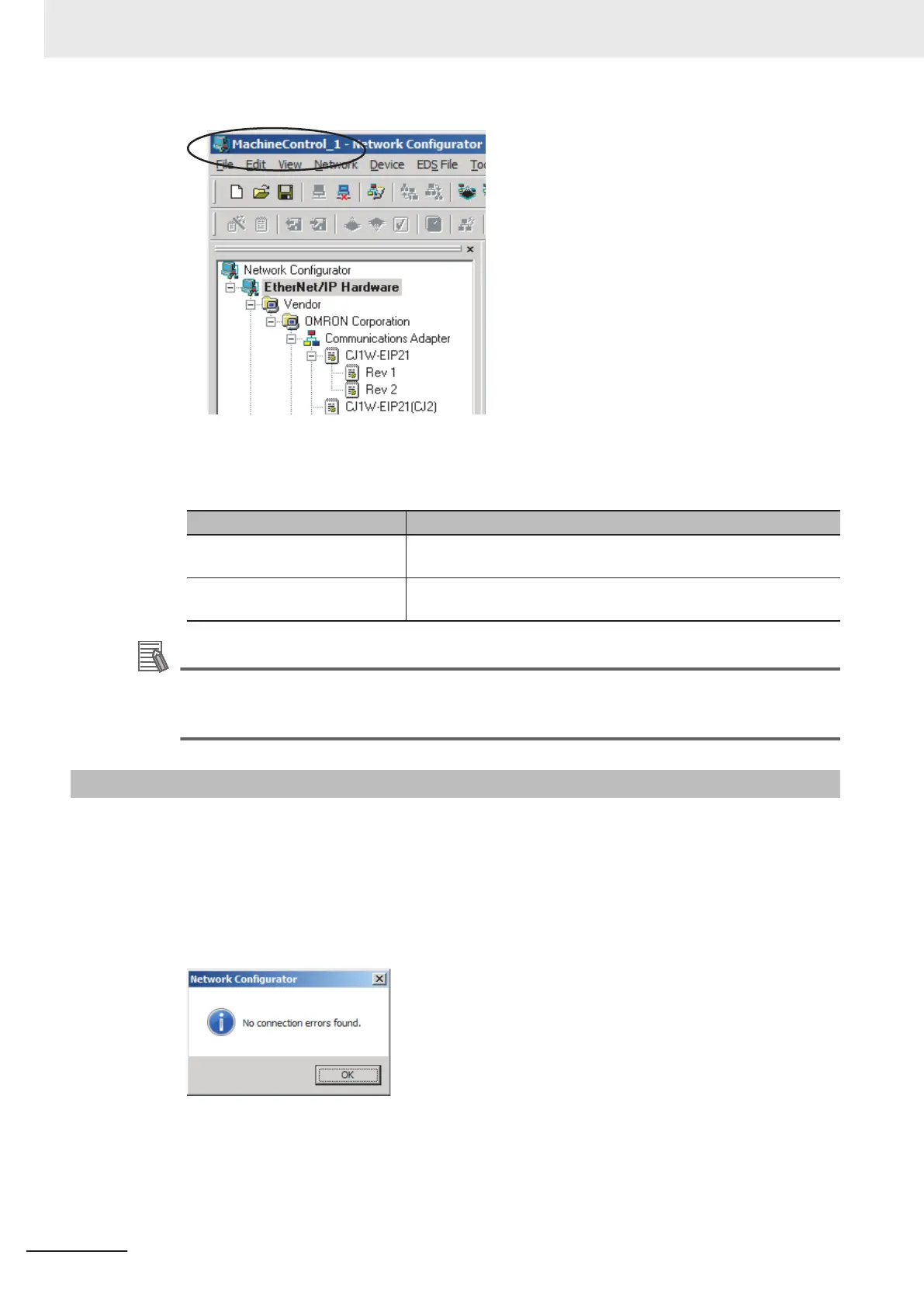

5 Select options in the Option Area as necessary
.
The options are listed below.
Setting Description
Select target network Allows you to select specific networks from the network configura-
tion and open them.
Add to current document Allows you to add the networks from the network configuration file
that is currently open to the current configuration file.
Additional Information
The save format will depend on the version of the Network Configurator. You can import config-
uration files (*.ncf) created with the Network Configurator for EtherNet/IP (version 2 or lower) if
you select External Data
- Import from the File Menu.
7-2-16
Checking Connections
You can check the consistency of connection parameters for network configuration files with device
parameters that were set with the Network Configurator or device parameters uploaded from the net-
work.
1 Select Check Connection from the Network Menu.
The following dialog box is displayed if parameters are normal.
The following dialog box is displayed if there are parameter errors. Check the displayed details
and review the settings.
7 Tag Data Link Functions
7-76
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
