MAC header IP header UDP header SNMP message
Variable length (1,472 bytes max.)
Version Community PDU
Item Set value
Version This value gives the SNMP version.
SNMPv1: 0
SNMpv2c: 1
Community Community name for verification
PDU This depends on the PDU type.
14-1-4
MIB Specifications
This section describes the specifications of the MIB that is supported by the built-in EtherNet/IP port.

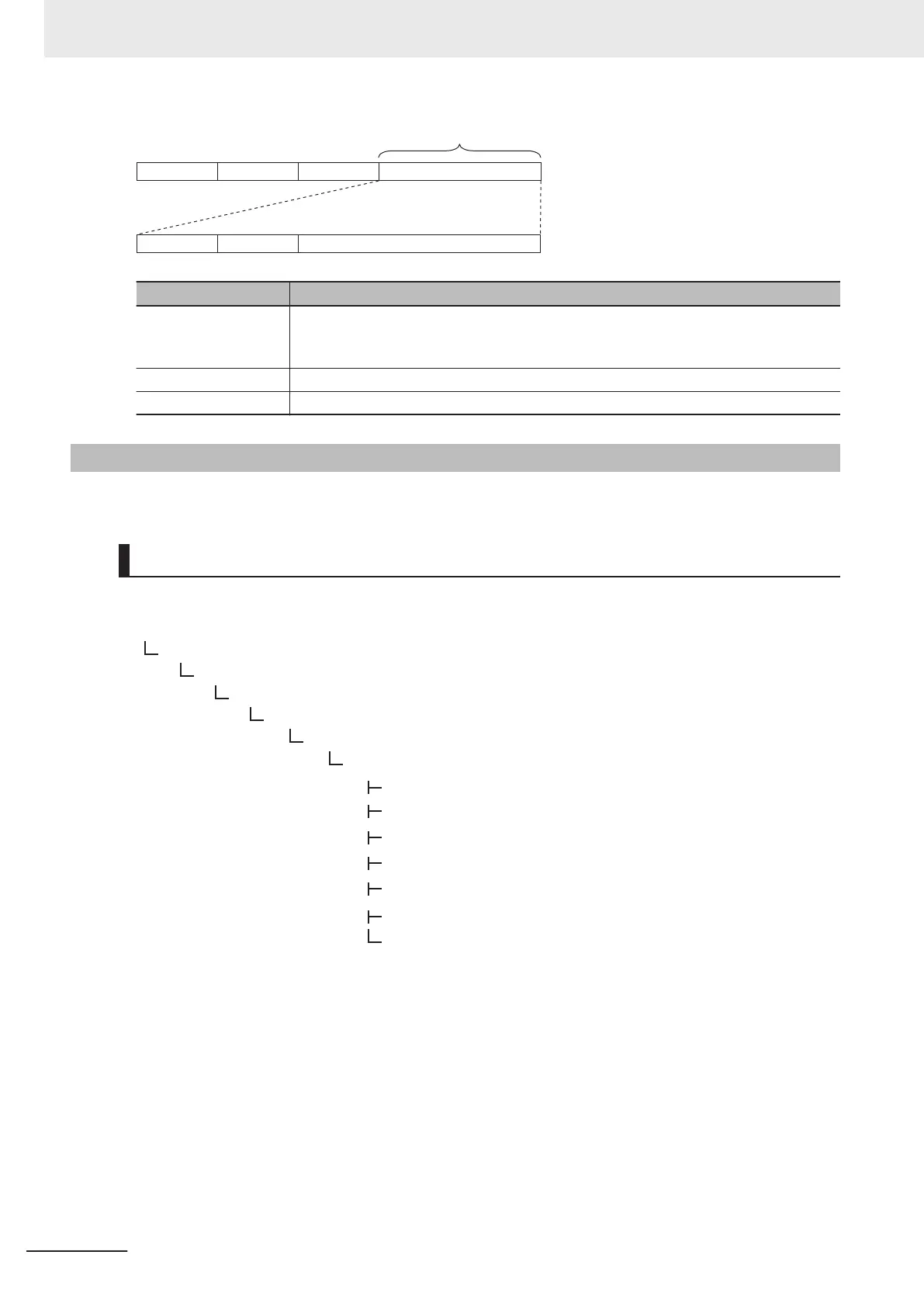

MIB System Diagram
The built-in EtherNet/IP port MIB consists of the following tree structure.
root
iso (1)
org (3)
dod (6)
internet (1)
mgmt (2)
mib-2 (1)
snmp (11)
udp (7)
tcp (6)
icmp (5)
ip (4)
interface (2)
-system (1)
SNMP information
UDP information
TCP information
ICMP information
IP information
Interface information
Unit information
14 SNMP Agent
14-4
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

Omron NX102-12 Series Specifications
