EtherNet/IP
Individual tags
I/O memory
CJ-series CPU Unit
Variable c
Tag set SP1_OUT
(tag c)
Connection
Connection
Tag set SP1_IN
(tag a)
Tag set SP2_IN
(tag d)
Tag set SP2_OUT
(tag b)
Variable d
Variable b
Variable a
NJ/NX-series CPU Unit

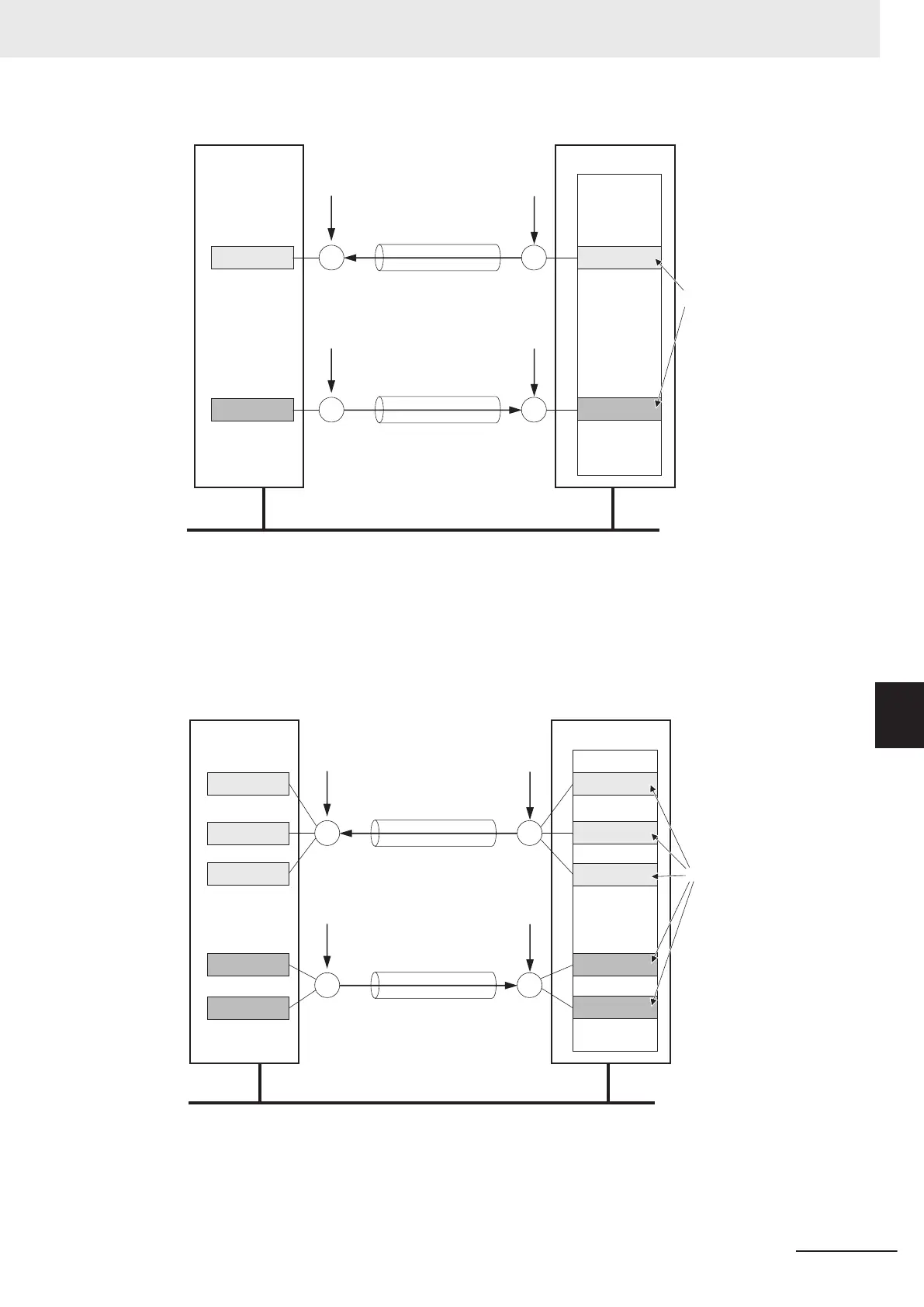

• Tag Sets Each with Multiple Tags
As shown below
, multiple tags can be grouped. You can assign up to eight tags (up to 722 words
in total for an NX701 CPU Unit, and up to 300 words in total for an NX102, NX1P2, and NJ-ser-
ies CPU Unit) to one tag set.
EtherNet/IP
Individual tags
Connection
Tag set SP2_IN
Connection
I/O memory
CJ-series CPU Unit
Tag set
SP1_OUT
Tag set SP1_IN
(group of tags a, b, and c)
Tag set SP2_OUT
(group of tags d and e)
Variable j
Variable i
Variable h
Variable g
Variable f
Variable e
Variable d
Variable c
Variable b
Variable a
NJ/NX-series CPU Unit
Note To enable a connection, each tag set must include only one of ether input tags or output tags. (Both in-
put and output tags cannot be included in one tag set.)
7 Tag Data Link Functions
7-5
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-1 Introduction to Tag Data Links
7
7-1-2 Data Link Data Areas
