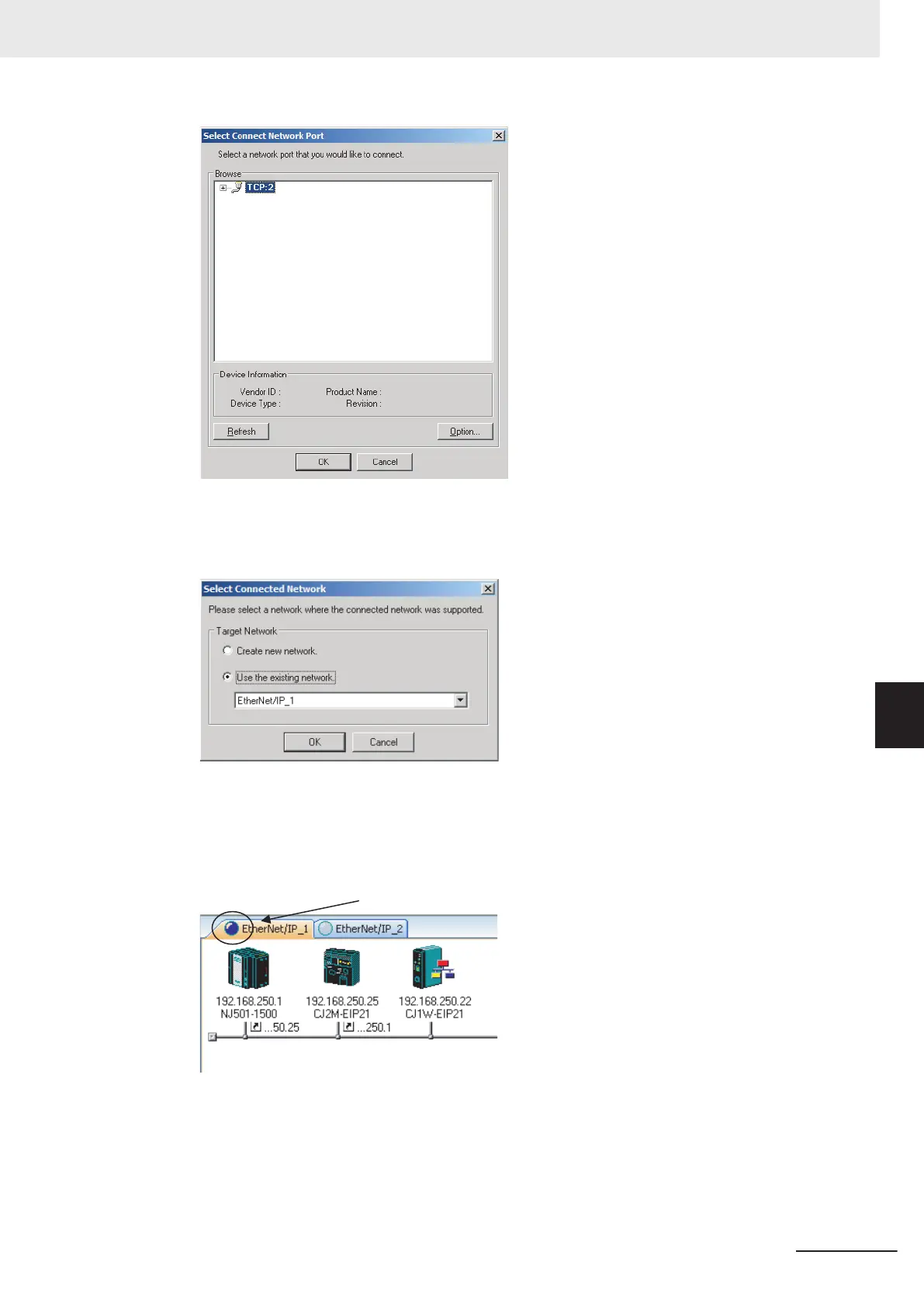

3 Click the OK Button.
Select the network to connect to.
The Network Configurator will connect to the EtherNet/IP network. If the Network Configurator
goes online normally
, On-line is displayed in the status bar at the bottom of the window.
The network connection icon is displayed in blue on the Network Tab Page in which the Net-
work Configurator is connected.
Network connection icon
Select Network - Change Connect Network to switch the connected network.
7 Tag Data Link Functions
7-53
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-8 Connecting the Network Configurator to the Network
