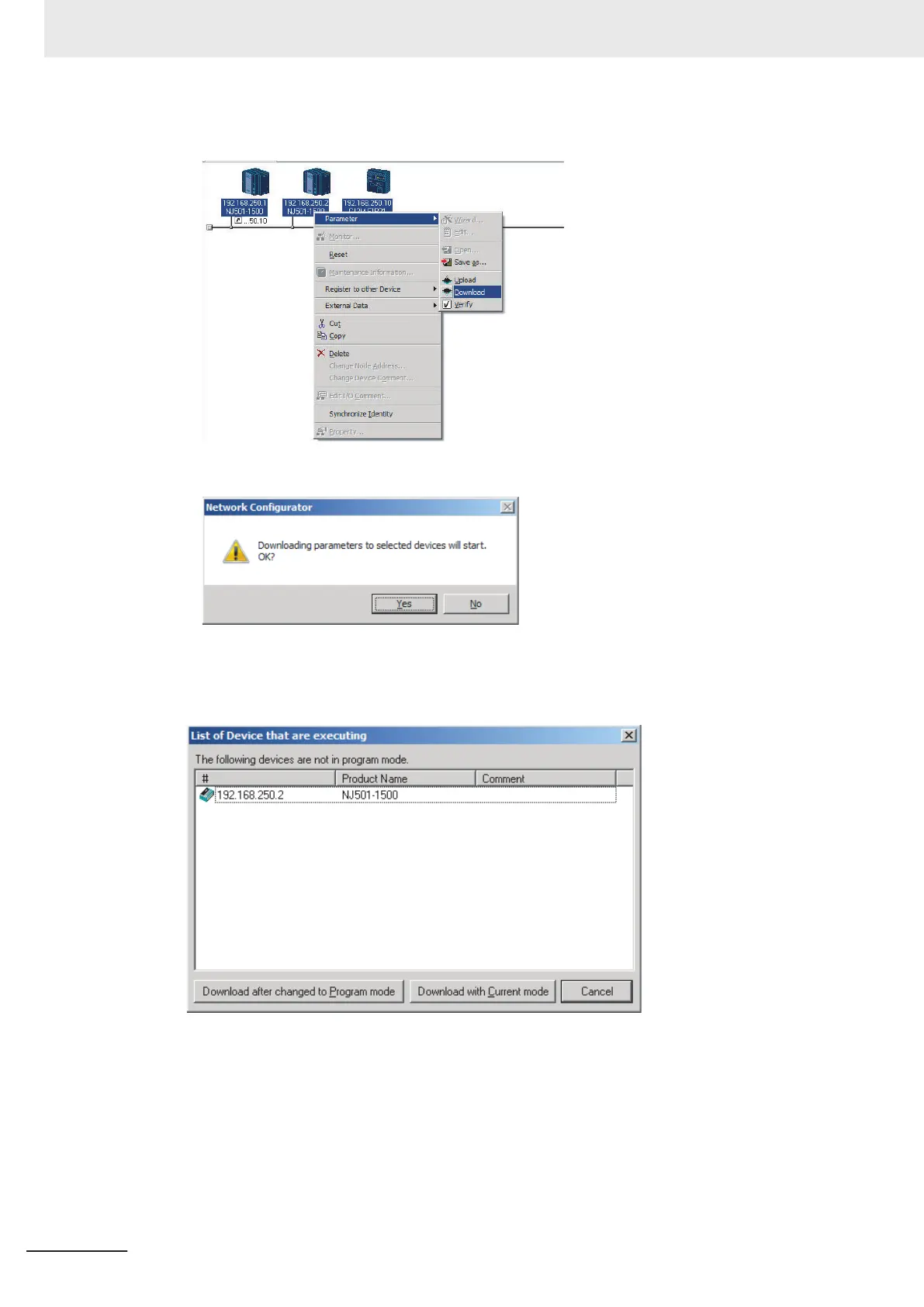

Right-click the icon to display the popup menu, and select Parameter
- Download.
The following dialog box is displayed.
3 Click the Y
es Button to download the tag data link parameters to the EtherNet/ IP Unit.
The following dialog box is displayed if any of the CPU Units is not in PROGRAM mode.
If the Download after changed to Program mode Button is clicked, all CPU Units are
changed to PROGRAM mode and the parameters are downloaded. Confirm safety for all con-
trolled equipment before you change the CPU Units to PROGRAM mode. Y
ou can restore the
operating modes after the parameters are downloaded.
You can click the Download with Current mode Button to download the parameters even
when one or more CPU Units is in RUN mode.
The Download with Current mode Button is disabled if the EtherNet/IP Unit does not support
the Download with Current mode Button (e.g., revision 1 of CJ1W-EIP21 or CS1W-EIP21).
7 Tag Data Link Functions
7-60
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
