Precautions for Correct Use
• Make sure that the major CIP revision of the device registered with the Network Configurator
is the same as the major CIP revision of the NJ/NX-series CPU Unit that you use. If the major
CIP revisions are not the same, the parameters may not be compared. T
o determine whether
comparison is possible, refer to 7-2-3 Registering Devices on page 7-21.
Verifying the Network Configuration
You can use the following procedure to compare the list of registered devices in the Network Configu-
ration Pane with the devices connected on the EtherNet/IP network, and check the IP addresses and
device types.
This function does not verify device parameters.
1 Connect the Network Configurator to the network.
2 Select Network - V
erify Structure.

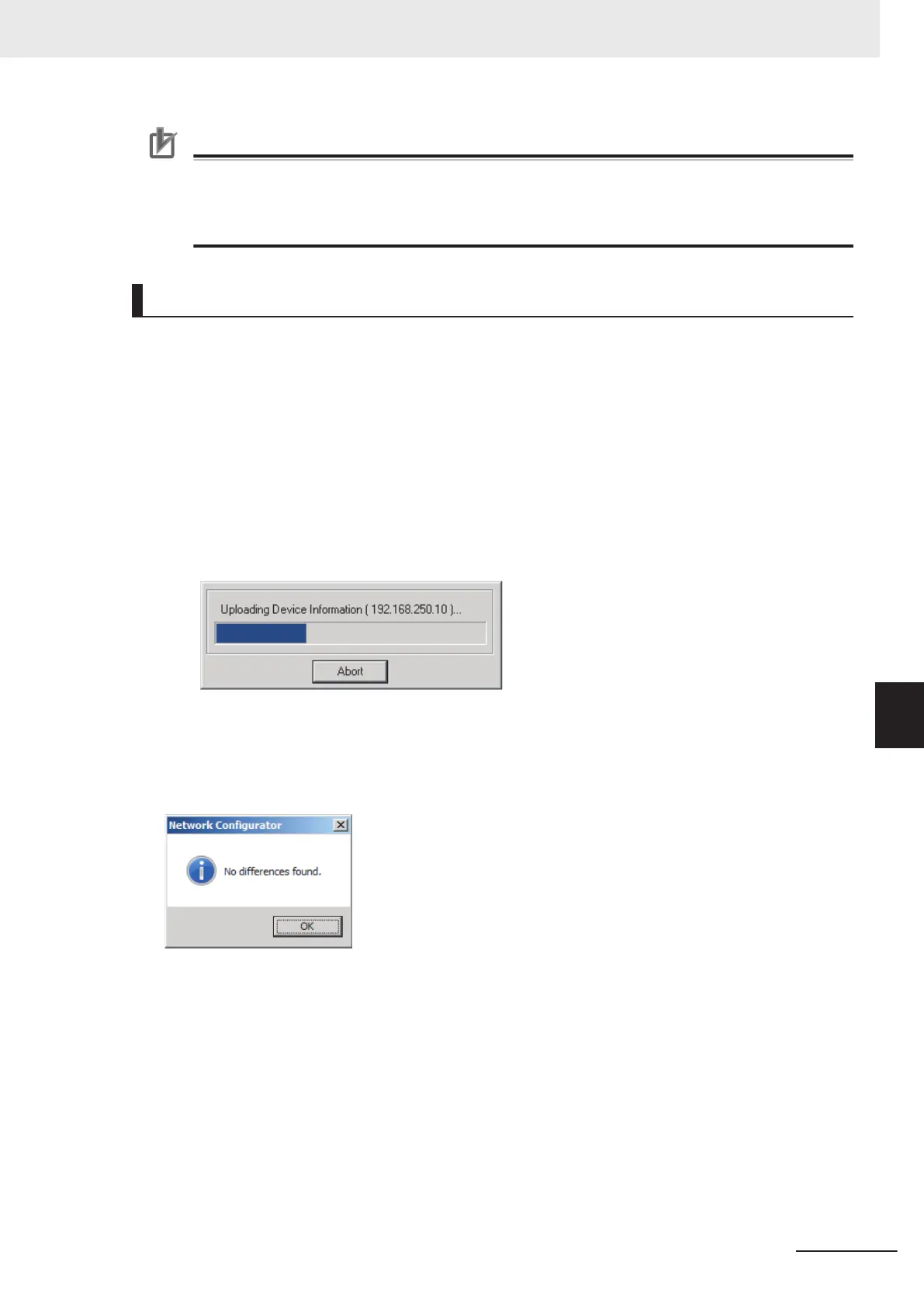

The following progress indicator is displayed to show the progress as data is read from the net-
work and compared.
3 The result of the comparison between the network configuration file and data from the network
is displayed as shown below
.
• Differences Not Found in the Comparison
• Differences Found in the Comparison
7 Tag Data Link Functions
7-65
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-11 Verifying Tag Data Link Parameters
