Additional Information
• Change the Tag Data Link Communications Start Switch to TRUE, while the Tag Data Link
Communications Stop Switch is F
ALSE.
If the Tag Data Link Communications Stop Switch is TRUE, the tag data links do not start
even if the Tag Data Link Communications Start Switch is changed to TRUE.
Furthermore, if the Tag Data Link Start Switch and the Tag Data Link Stop Switch are both
TRUE, an error occurs, the Multiple Switches ON Error system-defined variable changes to
TRUE, and the event is recorded in the event log.
• After you start the tag data links, do not force the Tag Data Link Communications Start Switch
to change to FALSE from the user program or from the Sysmac Studio. It will change to
FALSE automatically.
Using the Network Configurator
You can select I/O Connection - Start or Stop from the Network Menu to start and stop tag data
links for individual devices.
Starting and Stopping Tag Data Links for Individual Devices
Using the Network Configurator

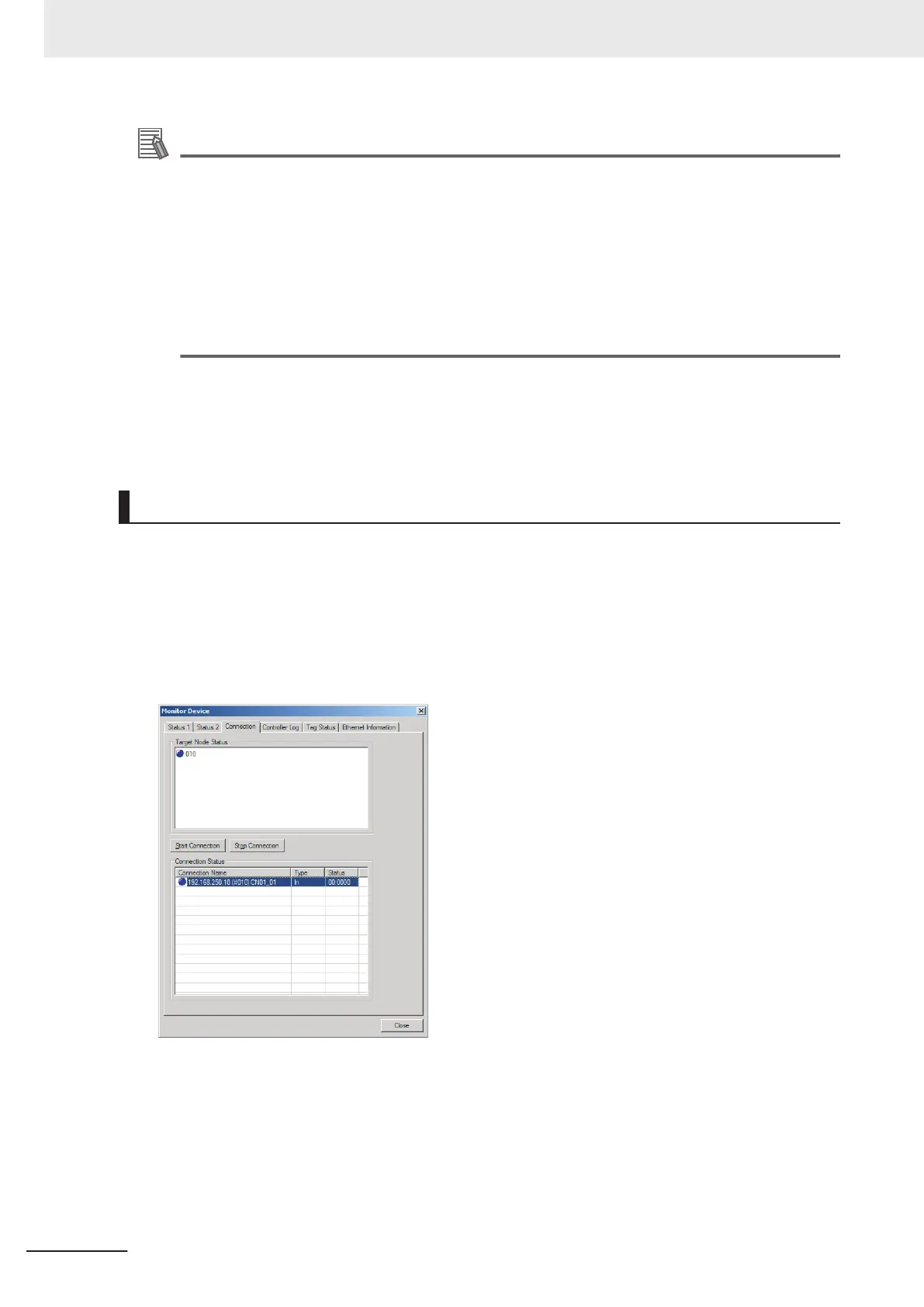

You can start and stop tag data links on a device basis (at the originator) by selecting Monitor from
the Device Menu and performing the following operation in the Connection
Tab Page in the
Monitor Device Dialog Box.
When using an NX701 CPU Unit or NX102 CPU Unit, you can start and stop tag data links for each
of the built-in EtherNet/IP port 1 and 2 connected to the Network Configurator.
Start Connection
Button:
Starts all connections for which the device is the originator.
Stop Connection Button:
Stops all connections for which the device is the originator.
7 Tag Data Link Functions
7-70
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
