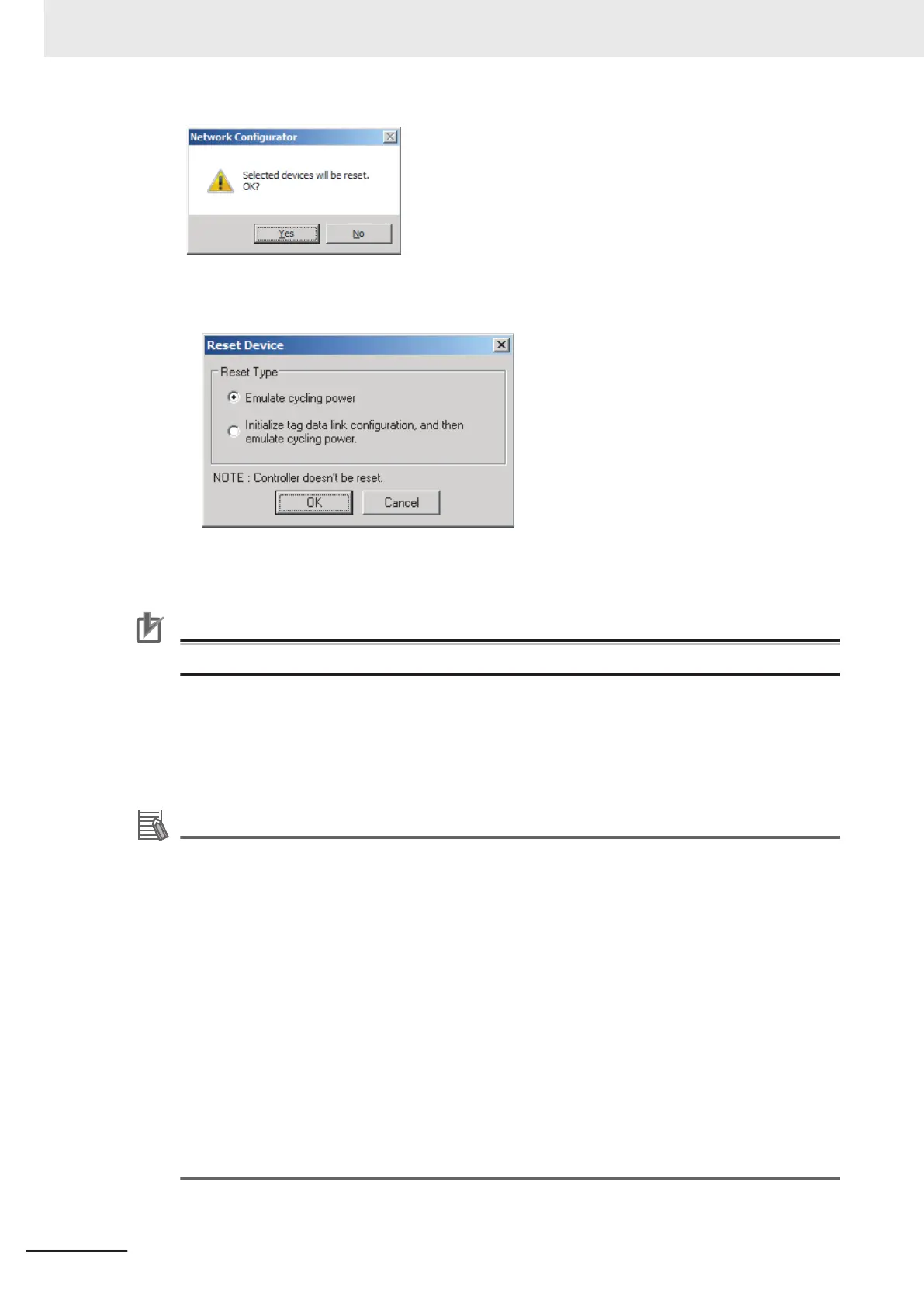

• If you click the Yes Button:
The following dialog box is displayed.
Select the Initialize tag data link configuration, and then emulate cycling power Option,
and then click the OK
Button.
Precautions for Correct Use
The Controller is not restarted. Only the built-in EtherNet/IP port is reset.
• If you click the No Button:
The tag data link settings will not be cleared and the built-in EtherNet/IP port will not be re-
set.
Additional Information
You can also execute the Reset service of the Identity Object for the CPU Unit to clear the tag
data link settings. The procedure to execute the service from the Network Configurator is given
below
.
1. Connect the Network Configurator to the network.
2. Select Tool - Setup Parameters in the main window.
Then the dialog box for the general parameter settings are displayed.
3. Specify the target device and message to send.
• T
arget Node Address
: Enter the IP address of the target device.
• Service
: Select Reset.
• Class
: Enter 01.
• Instance
: Enter 01.
• Attribute
: Enter 00.
• Data
: Enter 02
*1
.
4. Click the Send Button.
*1. For a CPU Unit with unit version 1.09 or earlier, specify 01.
7 Tag Data Link Functions
7-72
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
