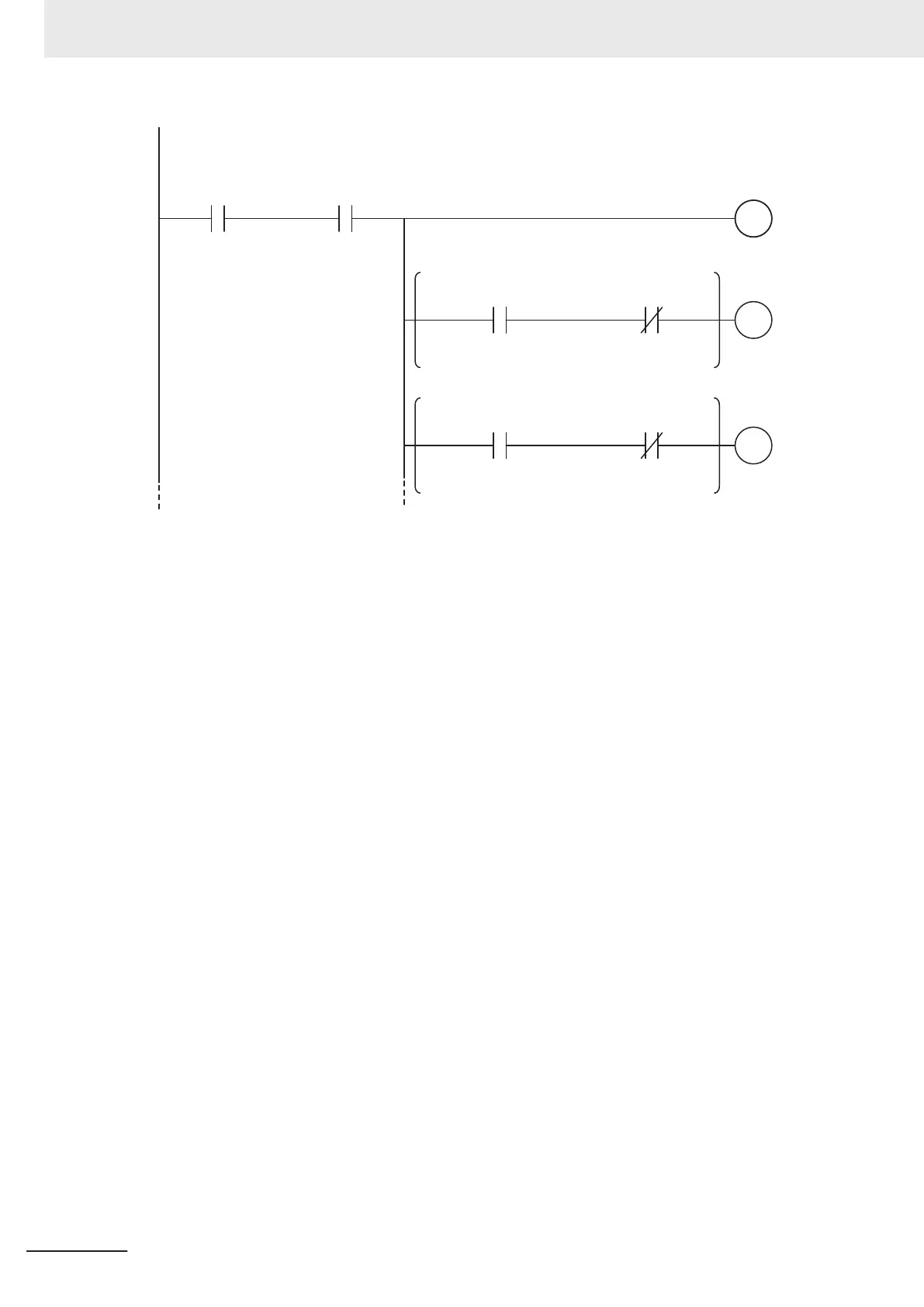

Node 1 data
link operation
normal
Data link
operation
normal
Target PLC
Error Information (#1)
_EIP_TargetPLCErr[1]
*4
All Tag Data Links
Communications Status
_EIP_TDLinkAllRunSta
*5
Online
(_EIP_EtnOnlineSta)
*1
Target PLC
Operating Mode (#1)
_EIP_EstbTargetSta[1]
*2
Node 2 data
link operation
normal
Target PLC
Error Information (#2)
_EIP_TargetPLCErr[2]
*4
Target PLC
Operating Mode (#2)
_EIP_EstbTargetSta[2]
*2
*1. This is a system-defined variable for NJ-series CPU Units.
For NX701 and NX102 CPU Units, the variable varies depending on the built-in EtherNet/IP port, as
shown below
.
Built-in EtherNet/IP port 1: _EIP1_EtnOnlineSta
Built-in EtherNet/IP port 2: _EIP2_EtnOnlineSta
For NX1P2 CPU Units, the variable is as below.
Built-in EtherNet/IP port 1: _EIP1_EtnOnlineSta
*2. This is a system-defined variable for NJ-series CPU Units.
For NX701 and NX102 CPU Units, the variable varies depending on the built-in EtherNet/IP port, as
shown below.
Built-in EtherNet/IP port 1: _EIP1_EstbTargetSta
Built-in EtherNet/IP port 2: _EIP2_EstbTargetSta
For NX1P2 CPU Units, the variable is as below.
Built-in EtherNet/IP port 1: _EIP1_EstbTargetSta
*3. This is a system-defined variable for NJ-series CPU Units.
For NX701 and NX102 CPU Units, the variable varies depending on the built-in EtherNet/IP port, as
shown below.
Built-in EtherNet/IP port 1: _EIP1_TargetPLCModeSta
Built-in EtherNet/IP port 2: _EIP2_TargetPLCModeSta
For NX1P2 CPU Units, the variable is as below.
Built-in EtherNet/IP port 1: _EIP1_TargetPLCModeSta
*4. This is a system-defined variable for NJ-series CPU Units.
For NX701 and NX102 CPU Units, the variable varies depending on the built-in EtherNet/IP port, as
shown below
.
Built-in EtherNet/IP port 1: _EIP1_TargetPLCErr
Built-in EtherNet/IP port 2: _EIP2_TargetPLCErr
For NX1P2 CPU Units, the variable is as below.
Built-in EtherNet/IP port 1: _EIP1_TargetPLCErr
*5. This is a system-defined variable for NJ-series CPU Units.
For NX701 and NX102 CPU Units, the variable varies depending on the built-in EtherNet/IP port, as
shown below.
Built-in EtherNet/IP port 1: _EIP1_TDLinkAllRunSta
Built-in EtherNet/IP port 2: _EIP2_TDLinkAllRunSta
For NX1P2 CPU Units, the variable is as below.
Built-in EtherNet/IP port 1: _EIP1_TDLinkAllRunSta
7 Tag Data Link Functions
7-82
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
