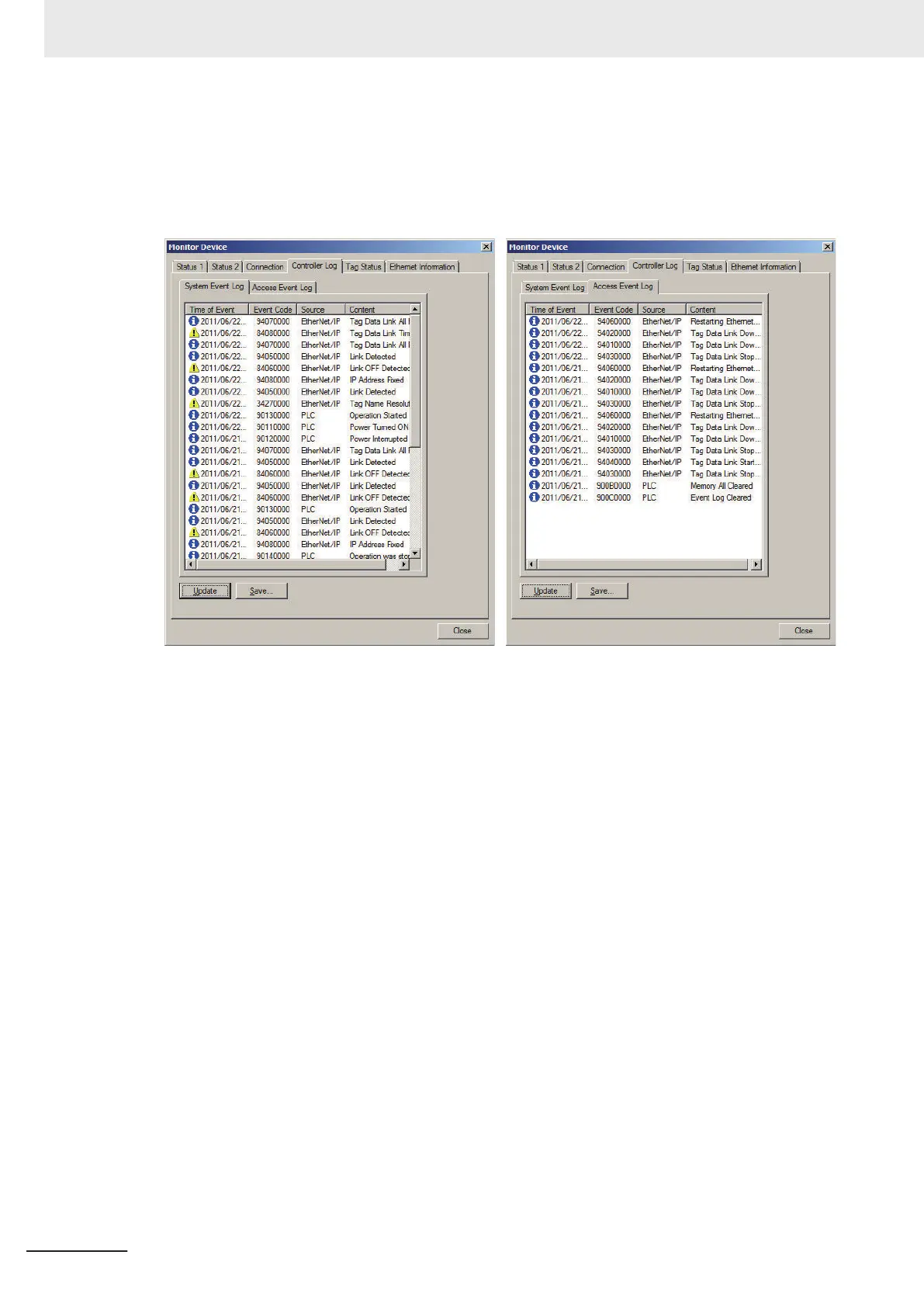

Controller Log Tab Page

This tab page displays the Controller event log that is stored in the CPU Unit.

The error history shows errors that have occurred. It can be saved in a file in the computer

Refer to the operation manual of the CPU Unit for details on error information.
