Special Settings and Communications Settings Section 4-7

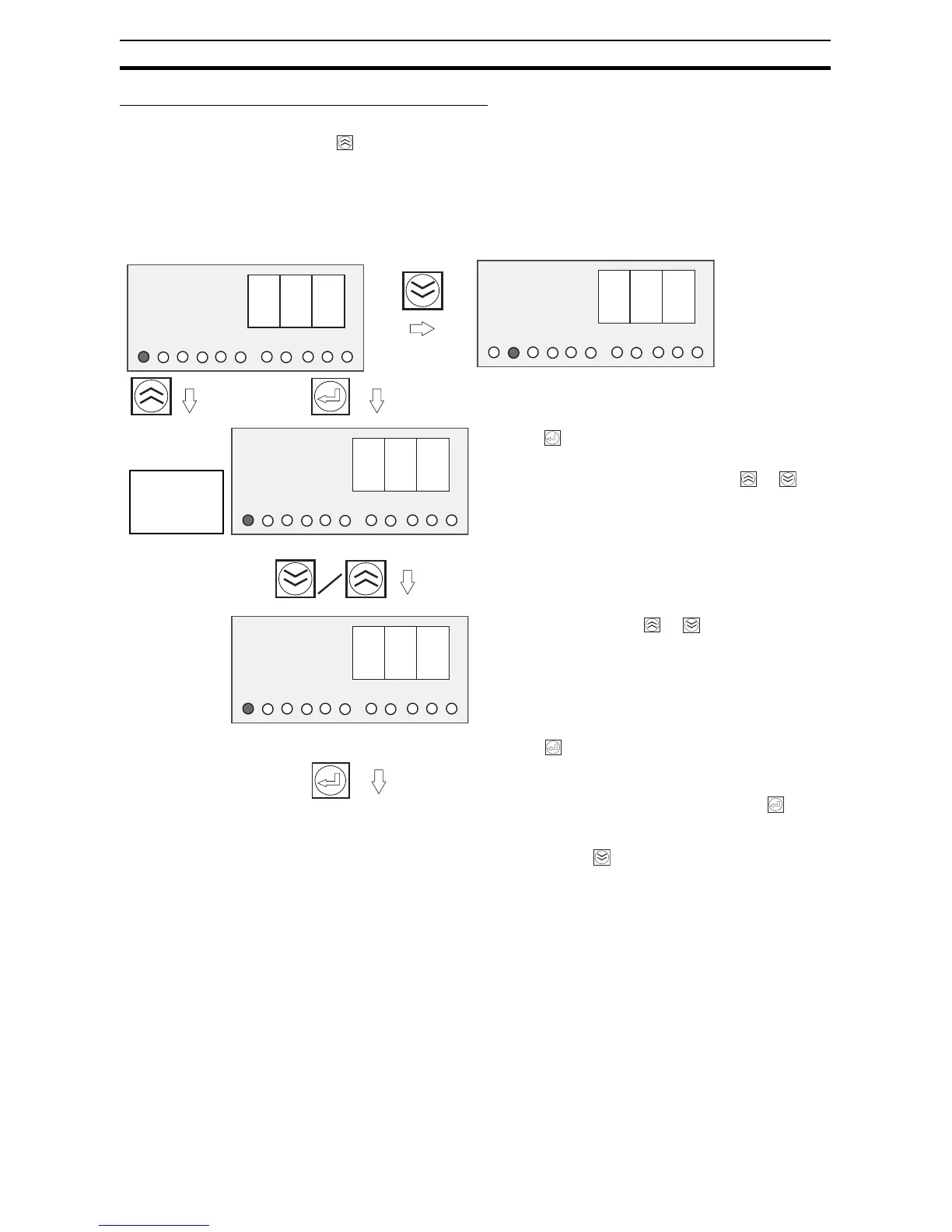

Tripping Input Trigger Setting: TRG (Trigger)
The Tripping Input Trigger Setting (TRG) will be displayed if the Up (SEL) Key
( ) is pressed from the Shutdown Sequence Setting Display.
The tripping input (TRG) can be enabled or disabled independently for each
branch output.
(The branch output that was most recently modified will be the current branch
output regardless of the operating mode.)
Note (1) If the External Tripping Input (TRG) is enabled for any branch outputs,
those outputs will be cut off within 20 ms when the TRG input is ON for
more than 10 ms.
(2) The shutdown delays specified by the shutdown sequence times will be
applied before disconnecting each output.
(3) When the TRG input goes ON, the seven-segment display will indicate
“TRG.”
(Returns to TRG display.)
t r g
t r g
o n
o f f
1
2
3
4
5
6
V
A
Yrs
s
°C
1
2
3
4
5
6
V
A
Yrs
s
°C
1
2
3
4
5
6
V
A
Yrs
s
°C
1
2
3
4
5
6
V
A
Yrs
s
°C
(To change the
branch output)
Press the Key to display the branch output parameter
settings.
The setting can be changed by pressing the or Key.
ON (enabled): The corresponding branch output will be
cut off when the TRG input is ON.
OFF (disabled): The TRG input has no effect on the corre-
sponding branch output.
Change the setting with the or Key.
• The S8AS will automatically return to the TRG display if no
key is pressed within 3 s.
When the Key is pressed, the SV display will flash.
When the flashing stops, the new setting will be saved and
the S8AS will return to TRG display.
• If you want to confirm the new setting, press the Key
again from the TRG display.
• To change the tripping input trigger setting of other branch
outputs, press the Key from the TRG display to select
the desired branch output, and then follow the procedure to
change the settings.
Switch to the
Tripping Input
Type Setting
(TGS).
