Special Settings and Communications Settings Section 4-7
(4) Once the TRG input goes OFF, the cut-off branch outputs can be recon-
nected by pressing the Reset Key.
(5) When all outputs are cut off simultaneously in Test mode or the shutdown
sequence operation is executed via communications, the branch outputs
will be cut off regardless of the external tripping input trigger setting.

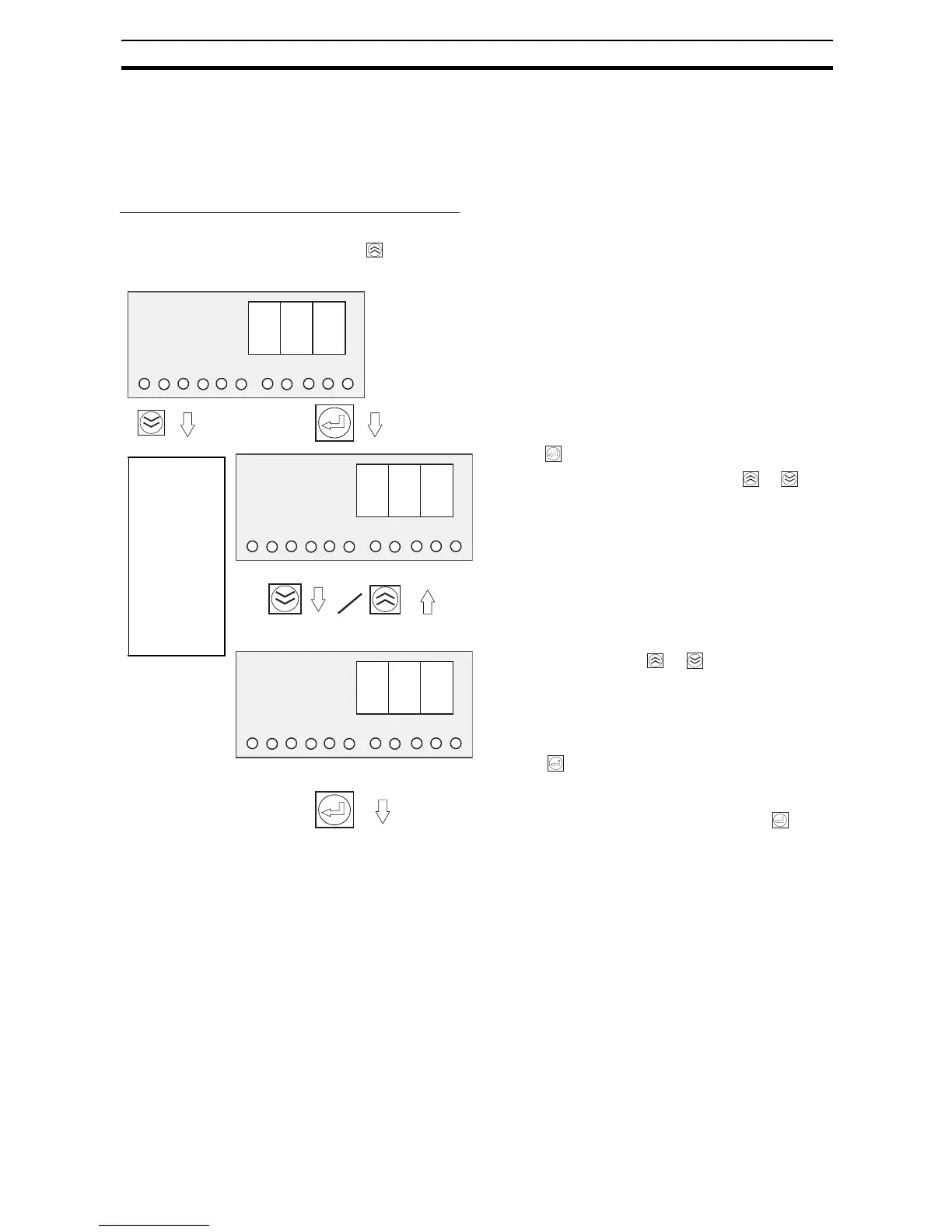

Tripping Input Type: TGS (Trigger Sense)
The Tripping Input Condition Setting (TGS) will be displayed if the Up (SEL)
Key ( ) is pressed from the External Tripping Input Trigger Setting Display
(TRG).
(
Returns to TGS dis
p
la
y
.
)
t g s
e g e
l V l
1
2
3
4
5
6
V
A
Yrs
s
°C
1
2
3
4
5
6
V
A
Yrs
s
°C
1
2
3
4
5
6
V
A
Yrs
s
°C
Press the Key to display the tripping input type.
The setting can be changed by pressing the or Key.
EGE (Edge): Output is cut off when TRG input changes
from OFF to ON.
LVL (Level): Output is cut off when TRG input changes from
OFF to ON, and is connected when TRG
input changes from ON to OFF.
Change the setting with the or Key.
• The S8AS will automatically return to the TGS display if
no key is pressed within 3 s.
When the Key is pressed, the SV display will flash.
When the flashing stops, the new setting will be saved and
the S8AS will return to TGS display.
• If you want to confirm the new setting, press the Key
again from the TGS display.
This parameter sets the tripping input type for each branch output that has
tripping input (TRG) enabled.
Switch to the
Communica-
tions Unit No.
Setting (UNO)
for models
with communi-
cations. (See
note.)
Note: For mod-
els without com-
munications,
switch to Reset
Method Setting
(page 76).
