Omron TM5 Regular Payload Series

Regular Payload Series-Hardware Installation Manual TM5 Series 19
4.2.1.2 Robot Assembly Diagram
Shown below is an illustration of the robot components. To avoid safety risks, do not attempt to
disassemble any component on your own. Contact your local OMRON support for any service request.

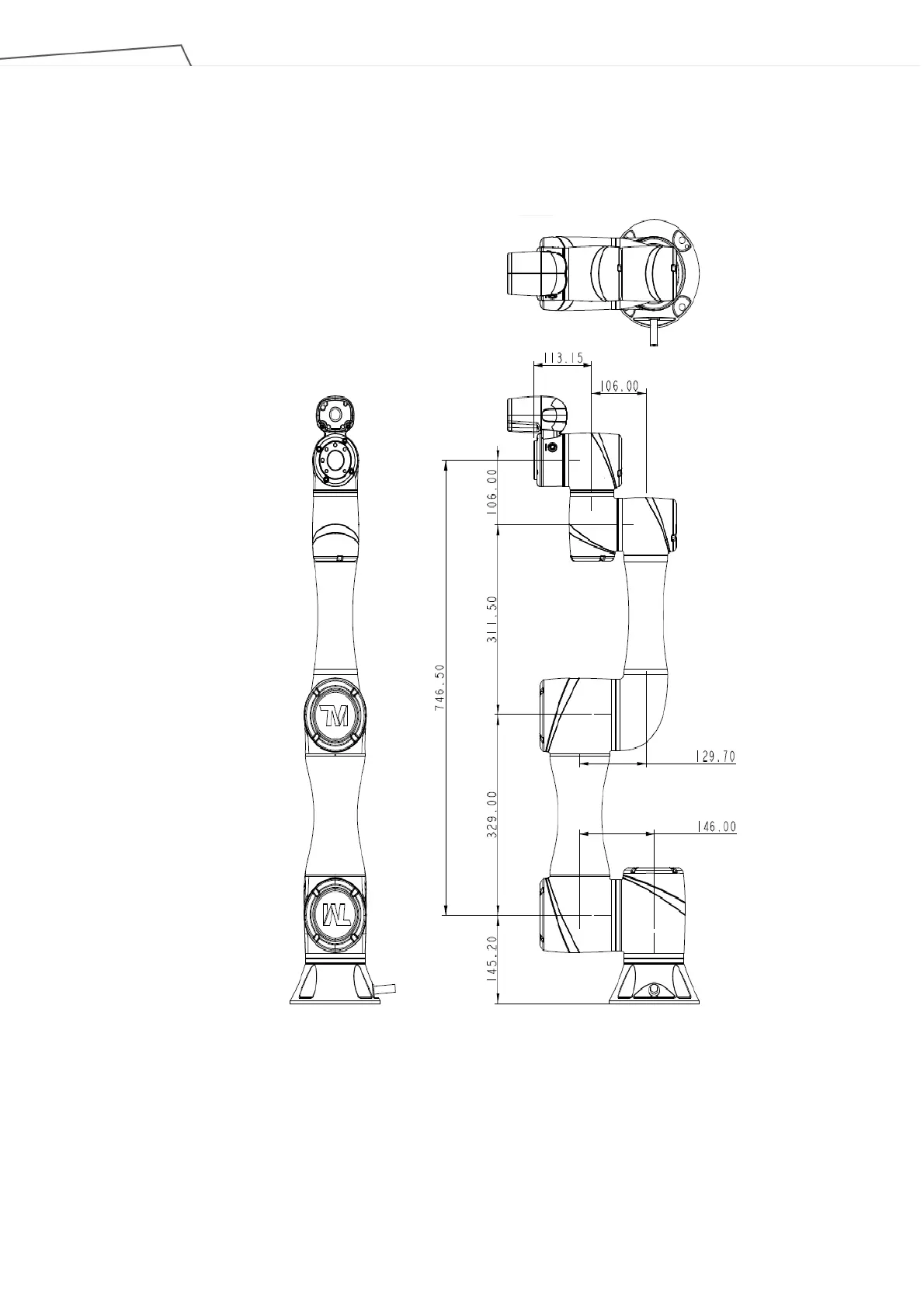

TM5-700 / TM5M-700
