Regular Payload Series-Hardware Installation Manual TM5 Series 43

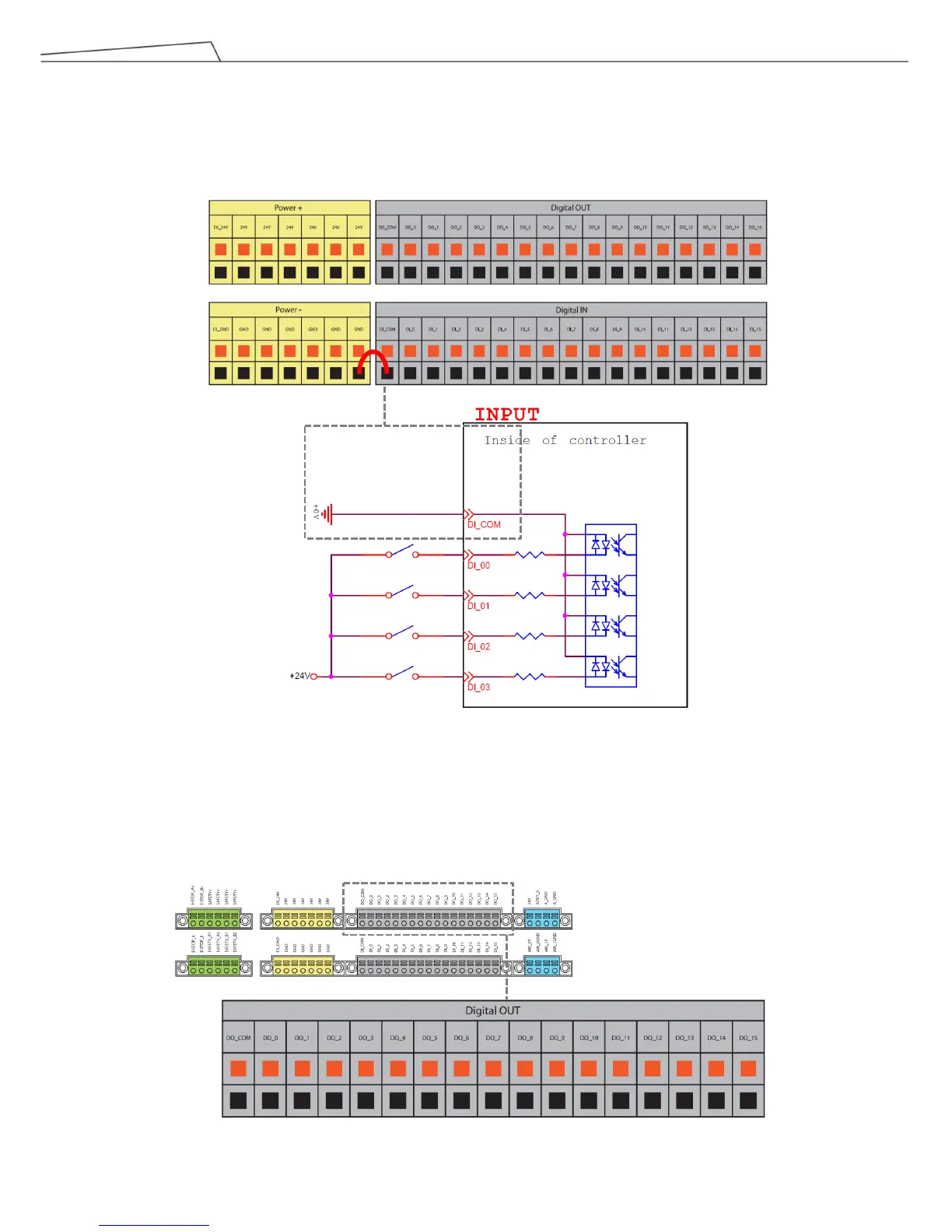

Set to Source input type
When a device such as a transistor output sensor is connected, PNP open collector transistor output can
be used.
5.3.3.2 Digital Output:
Outputs can be set to either sink output or source output by selection.
The maximum drive current is 300mA per channel. If the load exceeds 300mA, a relay should be used to
drive it.
