4.2.1.4 Robot Hazard Zone Diagram and Operator Position Diagram

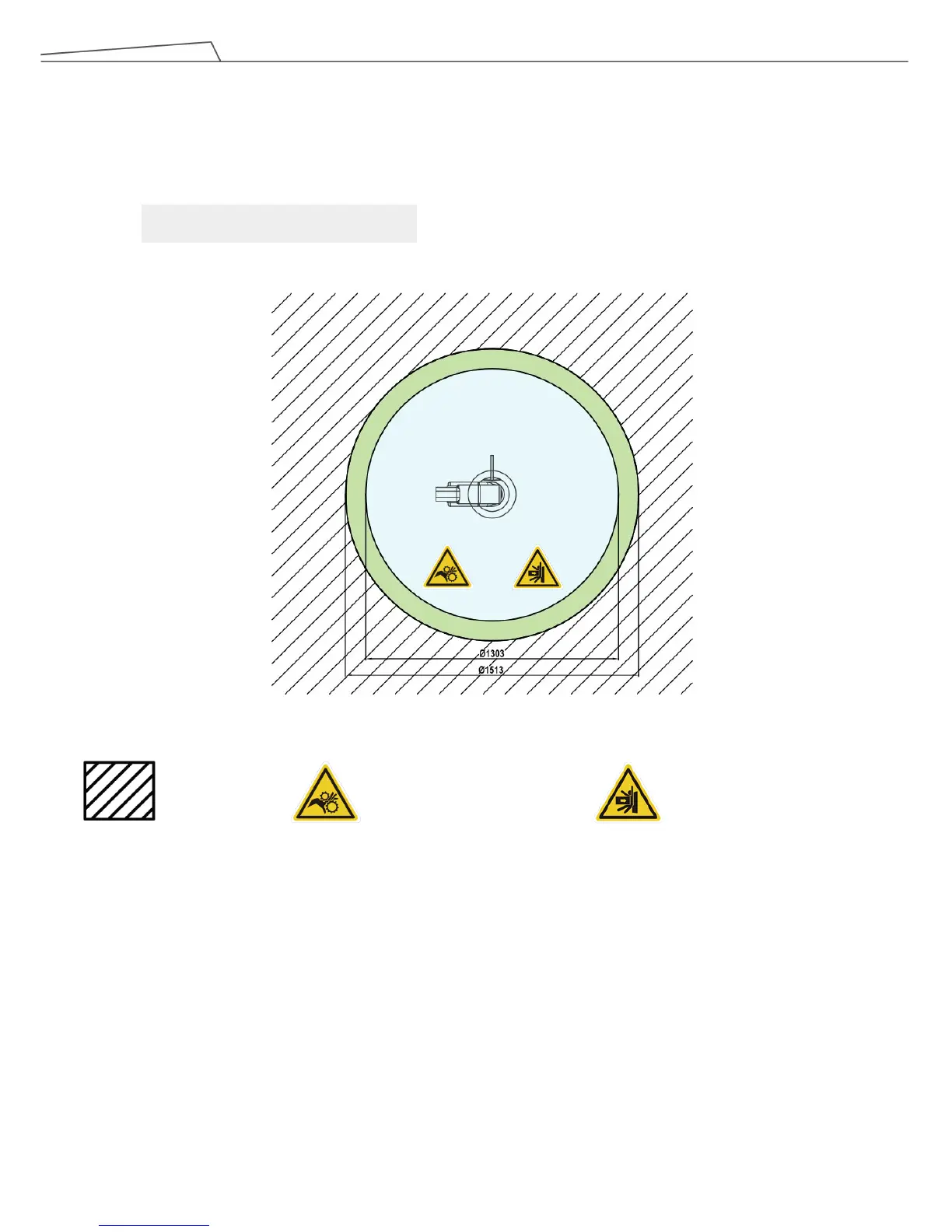

Shown below is an illustration of the robot hazard zone and operator position diagrams. Do not
operate the robot while anyone is inside of the hazard zone to avoid safety risks.

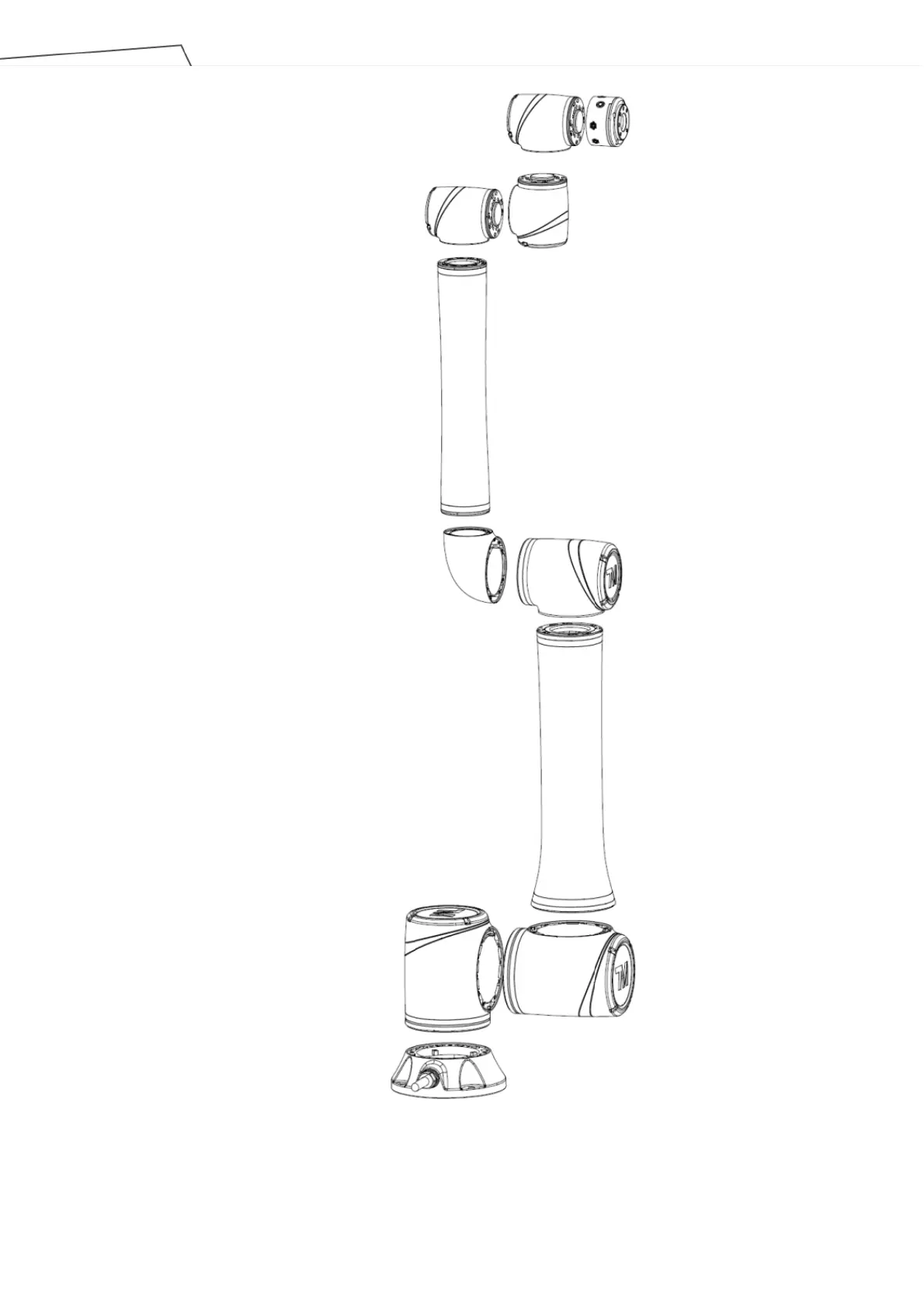

TM5-700 / TM5M-700
Operator Position
Warning: Risk of crushing within
the operating area of the arm.
Warning: Risk of collision within
the operating area of the arm.
