Crocus CNV Installing and connecting the Crocus CNV
User manual 21
2.6.3 Connecting to the onboard G703 using the RJ45 or line connector block
You can connect to the onboard G703 interface through …
• the RJ45 connector located at the front of the Crocus CNV CV
or
• the line connector block located at the back of the CN4 card nest.
You can make this selection by means of 8 straps located on the Crocus CNV CV motherboard. This is
described in the paragraphs below.

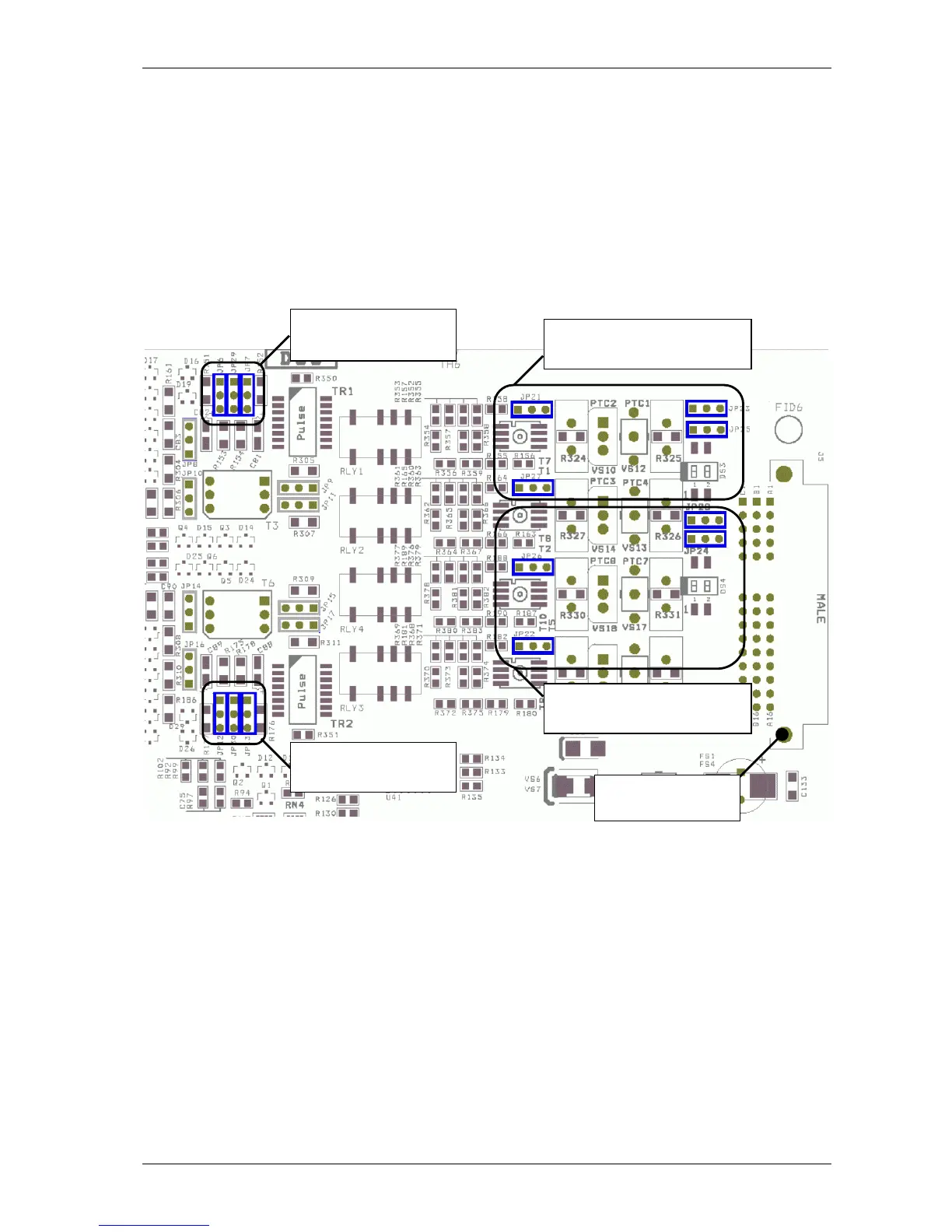

The location of the straps on the Crocus CNV CV motherboard
strap JP21, JP23, JP25, JP27
(converter A)
strap JP12, JP13, JP30
(converter B)
strap JP6, JP7, JP29
(converter A)
middle connector
towards CN4
strap JP22, JP24, JP26, JP28
(converter B)
