WorkBee CNC Drag Chains Assembly 8
2.1.2 Y-Axis Fixed End Mounting

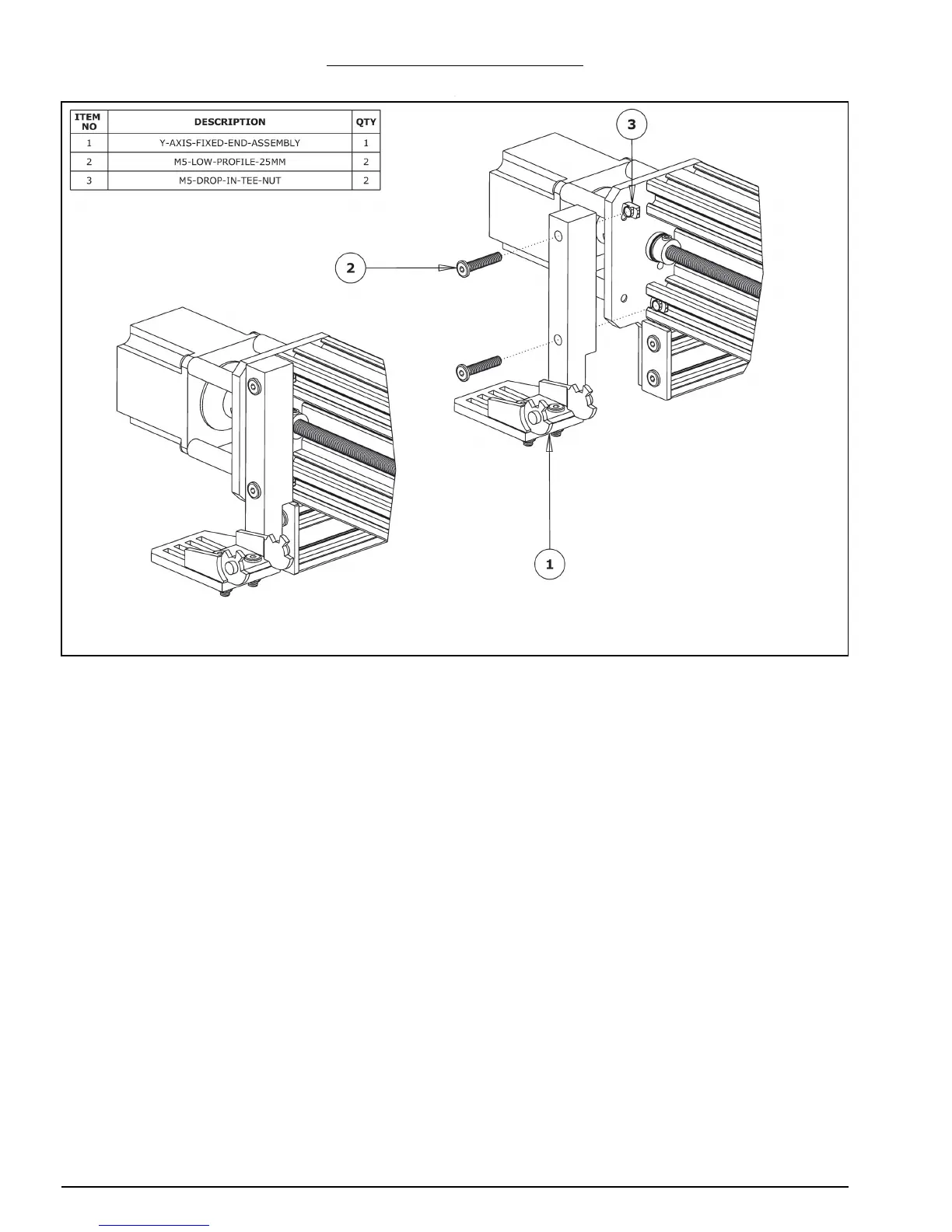

A. Position the Y-Axis-Fixed-End-Assembly to the back left corner of the WorkBee. It
should be flush with the end of the C-Beam-750mm. Secure it using 2 x M5-Low-Pro-
file-25mm bolts and 2 x M5-Drop-In-Tee-Nuts.
