WorkBee CNC Drag Chains Assembly 13

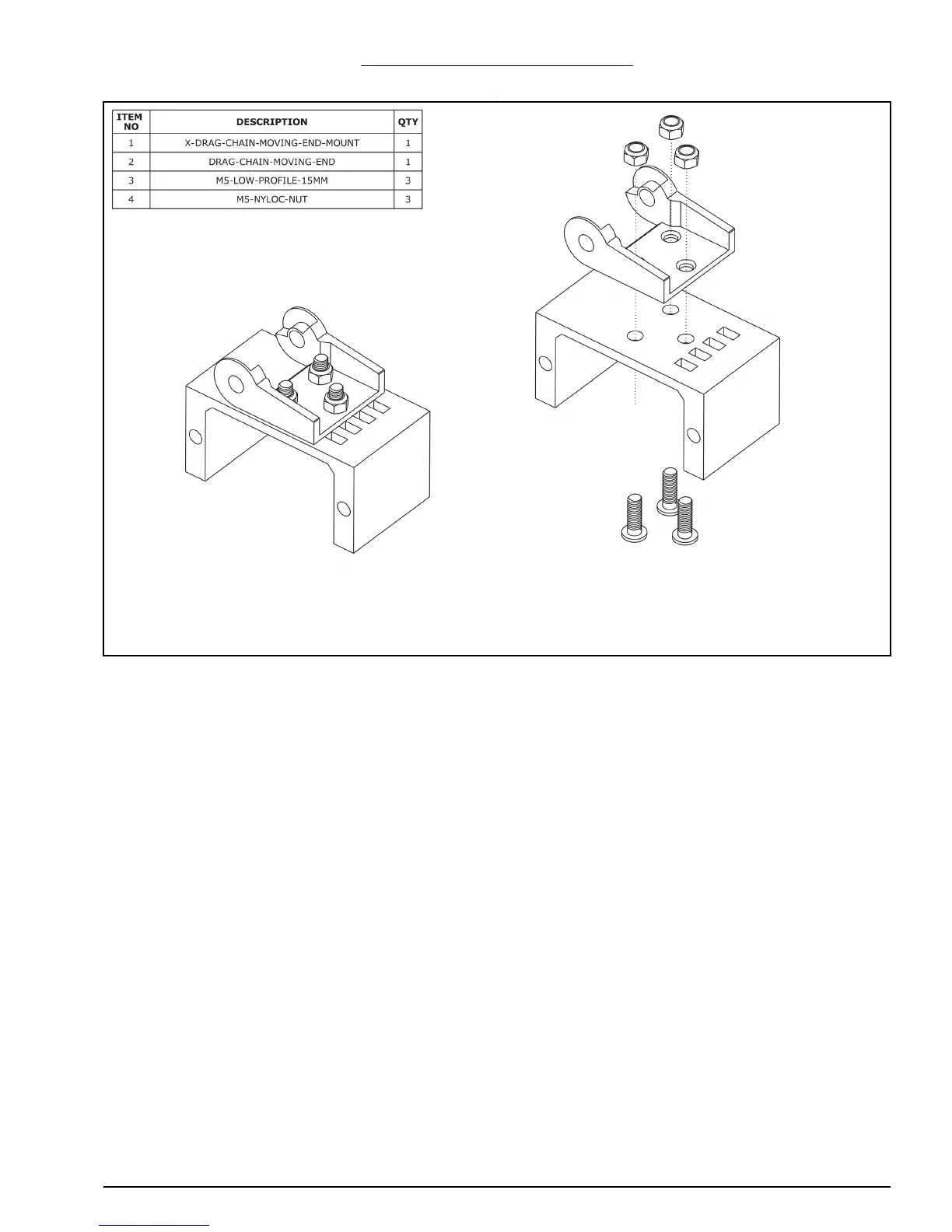

2.2.2 X-Axis Moving End Assembly
A. Attach a Drag-Chain-Moving-End to the X-Drag-Chain-Moving-End-Mount in the ori-
entation shown above using 3 x M5-Low-Profile-15mm bolts and 3 x M5-Nyloc-Nuts.
