WorkBee CNC Limit Switches & Wire Routing 34
4.2.6 Belt Driven - Y-Axis Wire Routing

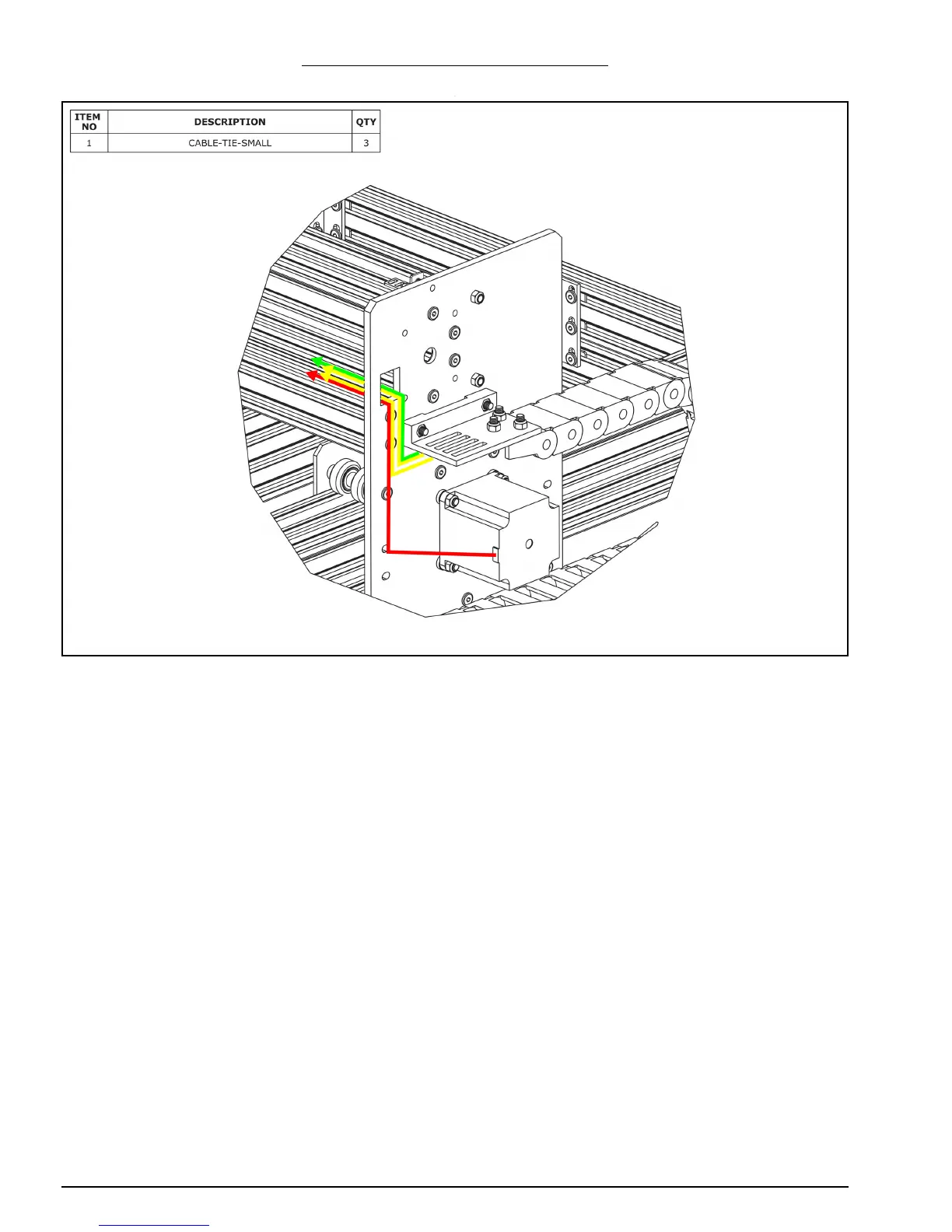

A. Connect a stepper motor wire to the pigtail on the left hand Y-Axis stepper motor (if
looking from the front) and feed it through the square hole on the Y-Plate
B. Inside the Y-Drag-Chain there should be two power supply wires (yellow above), and
a limit switch wire (green above). Feed all of these through the square hole on the Y-
Plate. Remove any slack inside the Y-Drag-Chain, and then secure these 3 wires to the
Y-Drag-Chain-Moving-End-Mount using Cable-Tie-Smalls.
