WorkBee CNC CNC xPro Assembly 38
5.0.3 Attaching The CNC-xPro

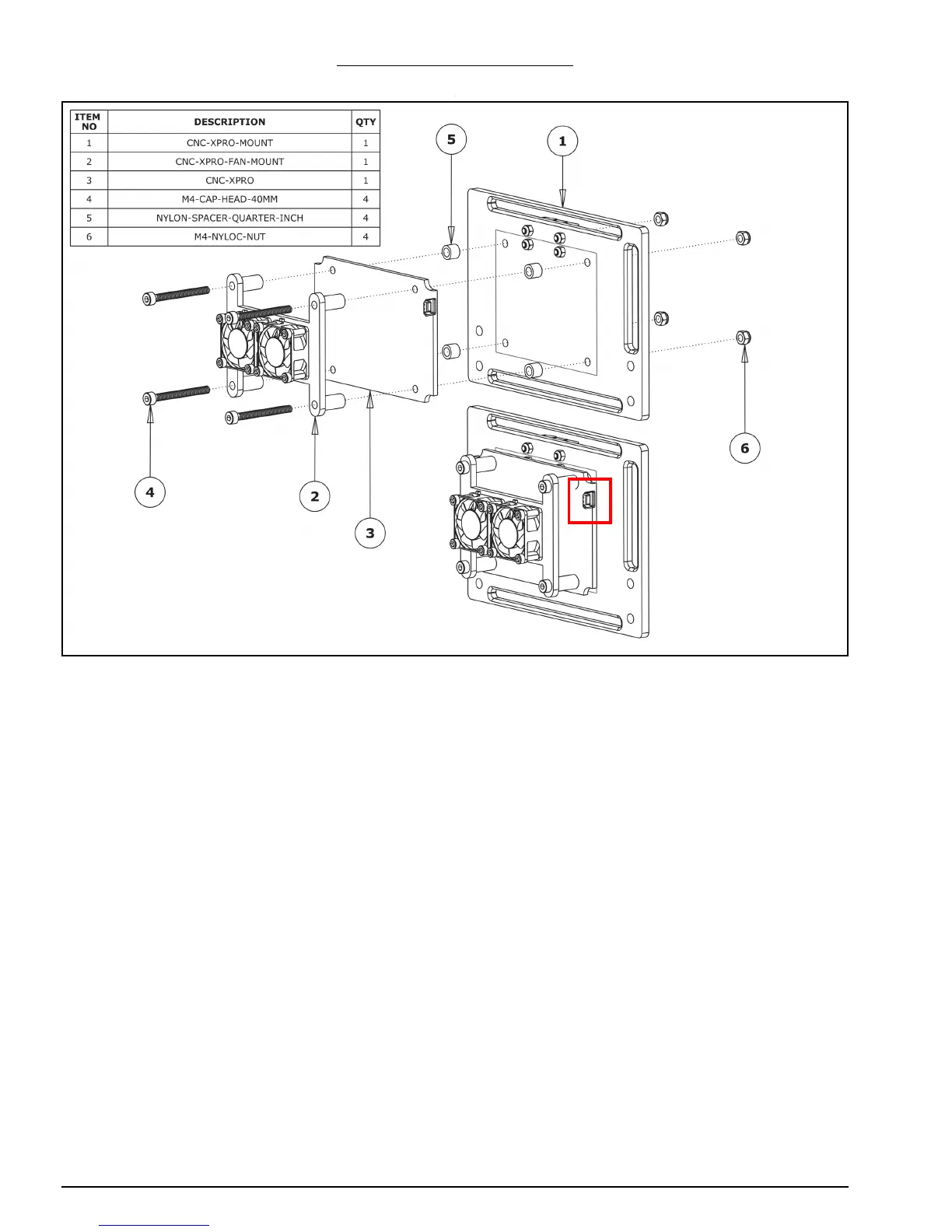

A. Insert 4 x M4-Cap-Head-40mm bolts through the previously assembled CNC-xPro-
Fan-Mount, and then through the CNC-xPro and each through a Nylon-Spacer-Quar-
ter-Inch. Finally, go through the CNC-xPro-Mount and tighten each bolt into a M4-
Nyloc-Nut. The CNC-xPro-Fan-Mount should be orientated so the power wires are on
the same side as the Terminal-Block. The CNC-xPro should be orientated so the USB
terminal is in the same position as shown by the red square above.
