WorkBee CNC
CNC xPro Assembly
37

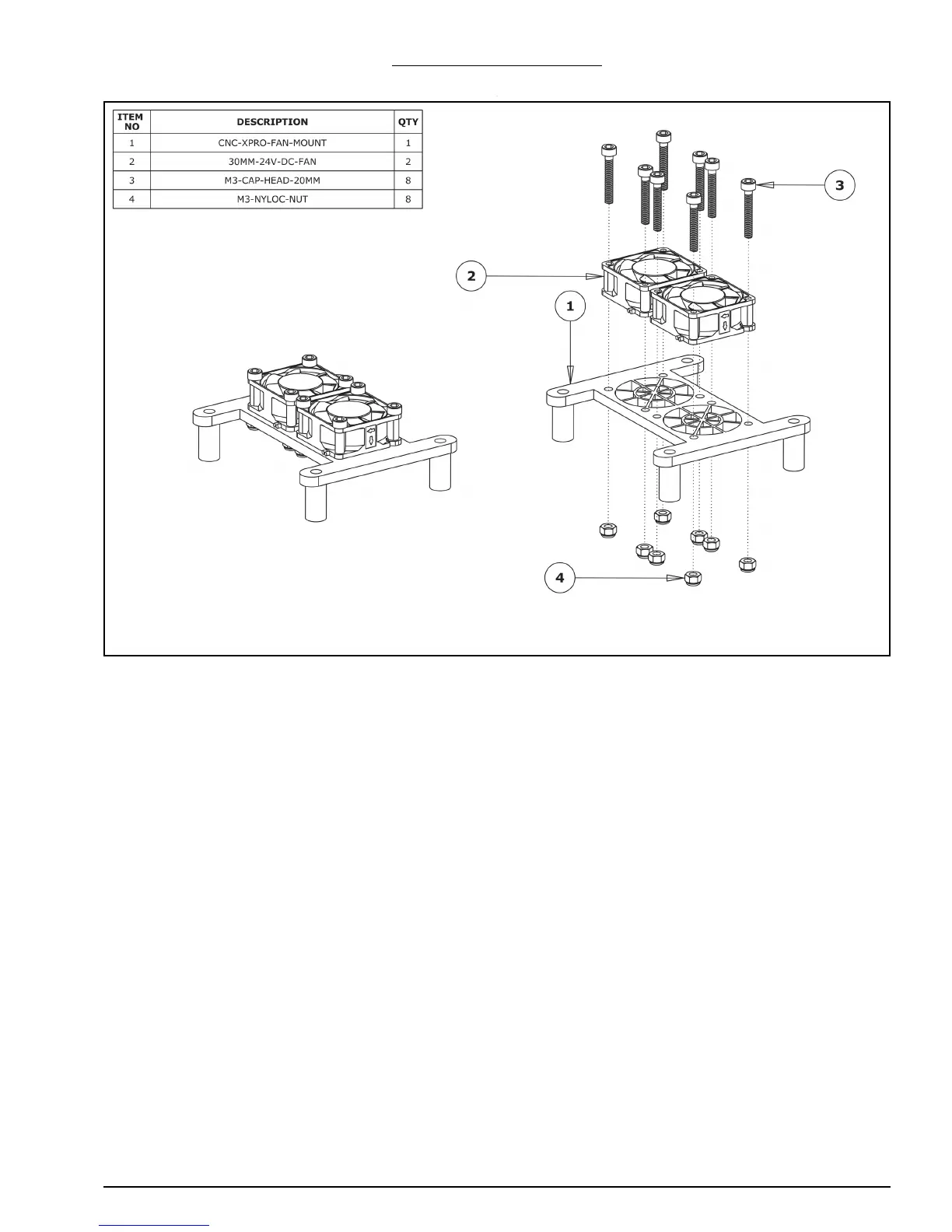

5.0.2 Fan Mount Assembly
A.
Attach 2 x 30mm-24V
-DC-F
ans to the CNC
-
xPro-F
an-Mount using 8 x M3-Cap-Head-
20mm bolts and 8 x M3-Nyloc-Nuts. Ensure
that the 30mm-24V
-D
C-F
ans are blowing
downward by ensuring that the side of th
e fan which the wires sit on is against the
CNC
-
xPro-F
an-Mount. Mak
e sure that the
power wires on the 30mm-24V
-DC-F
ans are
both on the same side of the CN
C
-
xPro-F
an-Mount.
38
40
Table of Contents
Default Chapter
3
Table of Contents
3
1 Getting Started
5
About the Kit
6
Check Product Contents
6
Tools Required
6
Notes on Assembly
6
2 Drag Chains Assembly
8
Y-Axis
9
Y-Axis Fixed End Assembly
9
Y-Axis Fixed End Mounting
10
Y-Axis Moving End Assembly
11
Y-Axis Moving End Mounting
12
Y-Drag-Chain
13
X-Axis
14
X-Axis Fixed End Mounting
14
X-Axis Moving End Assembly
15
X-Axis Moving End Mounting
16
X-Drag-Chain
17
3 Power Supply Assembly
18
Output
19
Securing XT60-Male Outputs
19
Inserting LED-Volt-Meter
20
Input
21
IEC-Inlet Wires
21
Attaching IEC-Inlet
22
Connecting PSU-Cover
23
Connecting Wires
23
Attaching PSU-Cover
25
Testing
26
4 Limit Switches & Wire Routing
27
Limit Switches
28
Z-Axis Limit Switch
30
Wire Routing
31
Screw Driven - Gantry Wire Routing
32
Belt Driven - Gantry Wire Routing
33
Screw Driven - Y-Axis Wire Routing - Part 1
34
Screw Driven - Y-Axis Wire Routing - Part 2
35
Belt Driven - Y-Axis Wire Routing
36
5 CNC Xpro Assembly
37
Terminal-Block Attachment
38
Fan Mount Assembly
39
Attaching the CNC-Xpro
40
Fans Wiring
41
Mounting the CNC-Xpro Assembly
42
6 Wiring & Commissioning
44
CNC-Xpro Wiring
45
Software & Machine Settings
46
Installing Universal G-Code Sender (UGS)
46
Configuring the Firmware
47
Testing
48
Wire Tidying
50
Complete
51
7 Appendix
53
Appendix A - Kit Contents
54
8 Appendix B
61
Recommended GRBL Settings
62
Invert Mask Table
65
9 Appendix C
66
Common Trouble Shooting Questions
67
