WorkBee CNC Drag Chains Assembly 12
2.2 X-Axis
2.2.1 X-Axis Fixed End Mounting

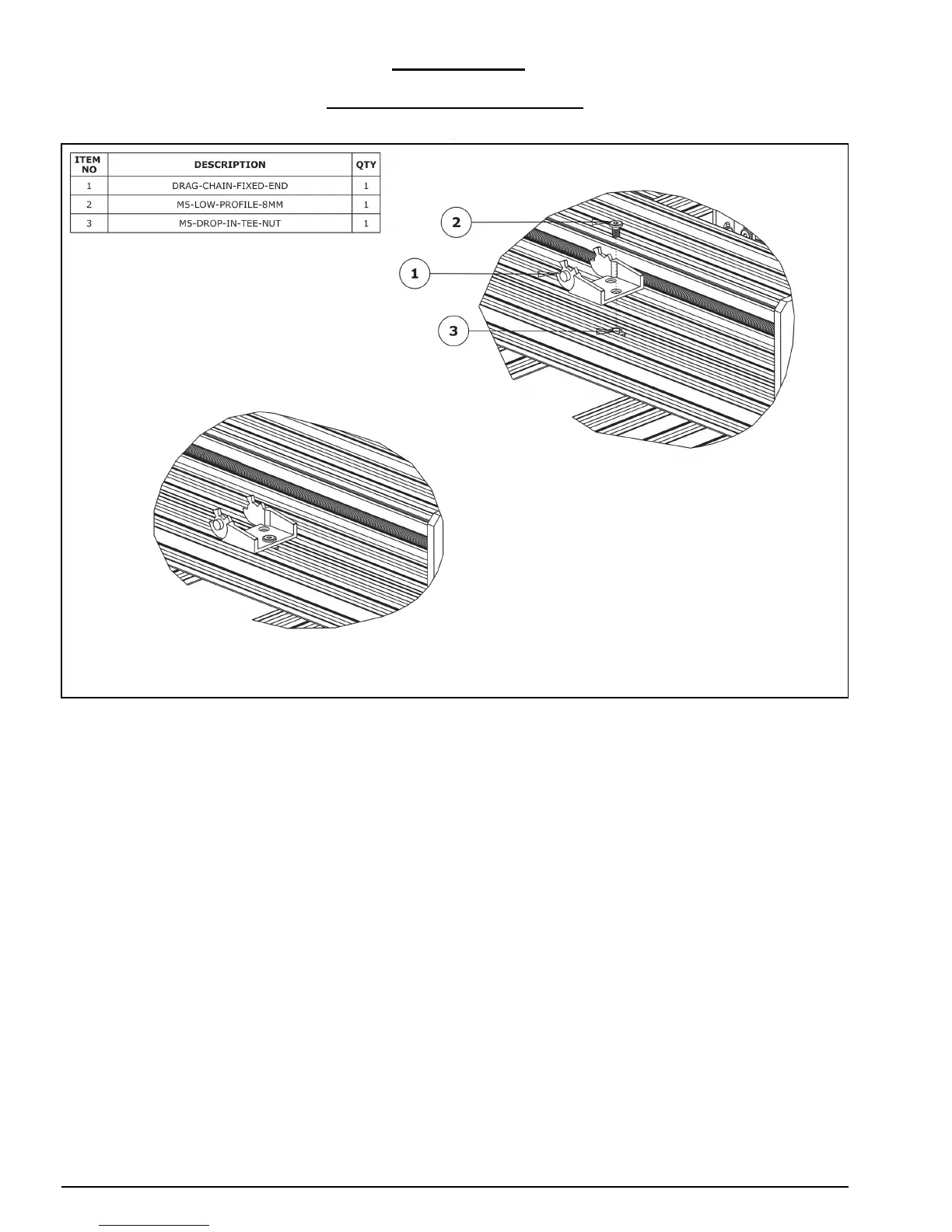

A. Attach a Drag-Chain-Fixed-End to the V-Slot-2040-750mm using an M5-Low-Profile-
8mm and an M5-Drop-In-Tee-Nut. Ensure it is orientated as above; it should be
located 150mm from right hand end of the V-Slot-2040-750mm if looking from the
back. Ensure that it is parallel with the V-Slot-2040-750mm.
