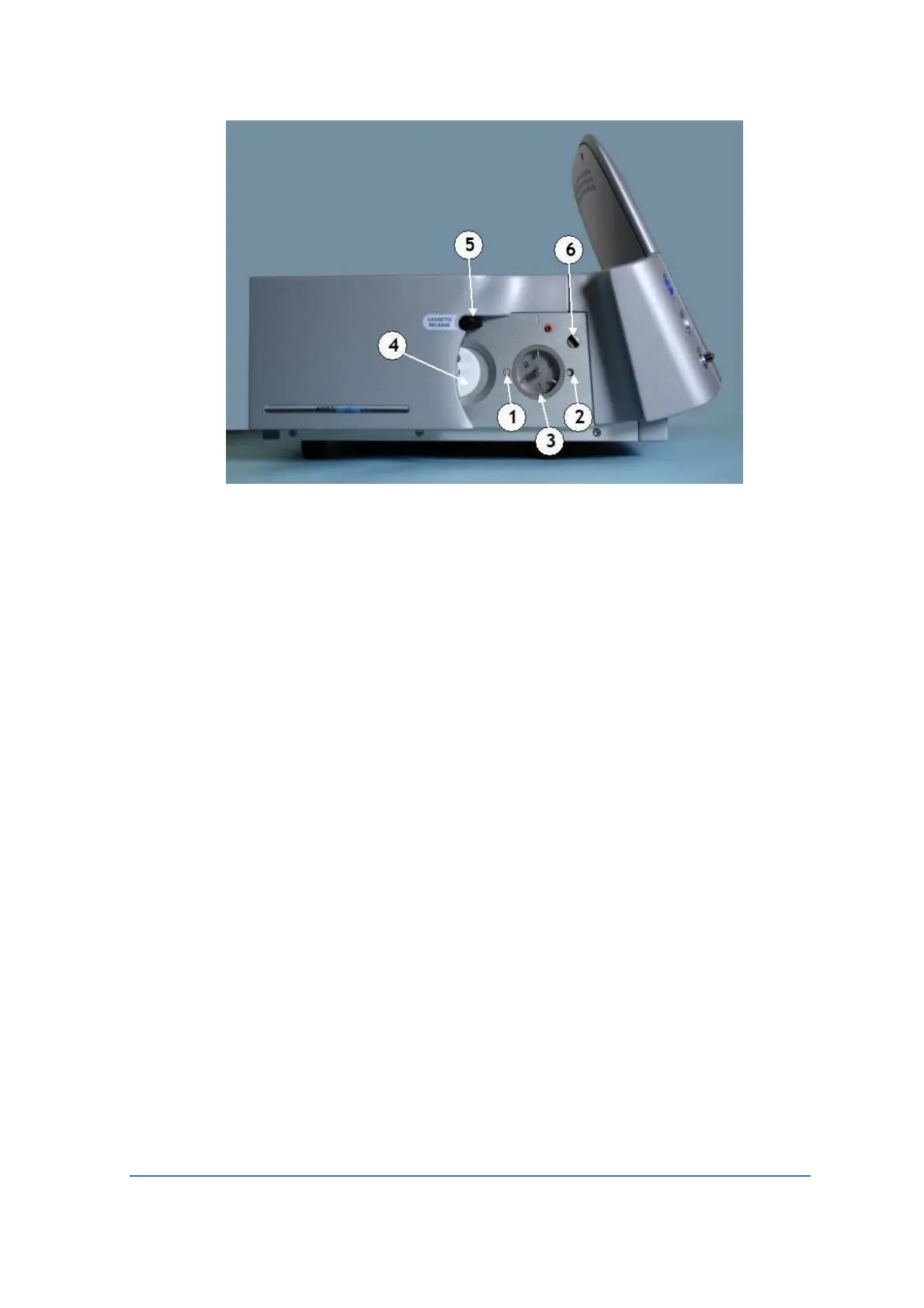

Left side view (Fig. 2)
1) IRRIGATION VALVE
The irrigation line is run in front of this valve. The valve allows starting and
stopping irrigation at surgeon’s demand.
2) REFLUX VALVE
The Reflux/Venting pinch valve permits introduction of fresh BSS solution in the
aspiration line, thus releasing the vacuum in the line and, eventually, reversing
direction of flow.
3) ACS3 VACUUM SENSOR
The ACS3 vacuum sensor monitors the vacuum level in the aspiration line in a
sterile manner. It also prevents sudden vacuum surges, thus stabilizing the
anterior chamber.
4) PERISTALTIC PUMP
This pump allows peristaltic aspiration in the PULSAR
2
. The pump rotor is
automatically moved horizontally to allow tubing installation and/or Venturi
aspiration.
5) I/A CASSETTE RELEASE BUTTON
This button allows the I/A cassette to be mounted and removed.
6) LEVEL SENSOR
This sensor blocks aspiration if the I/A cassette is full.
