Status Monitoring via the HOME Screen

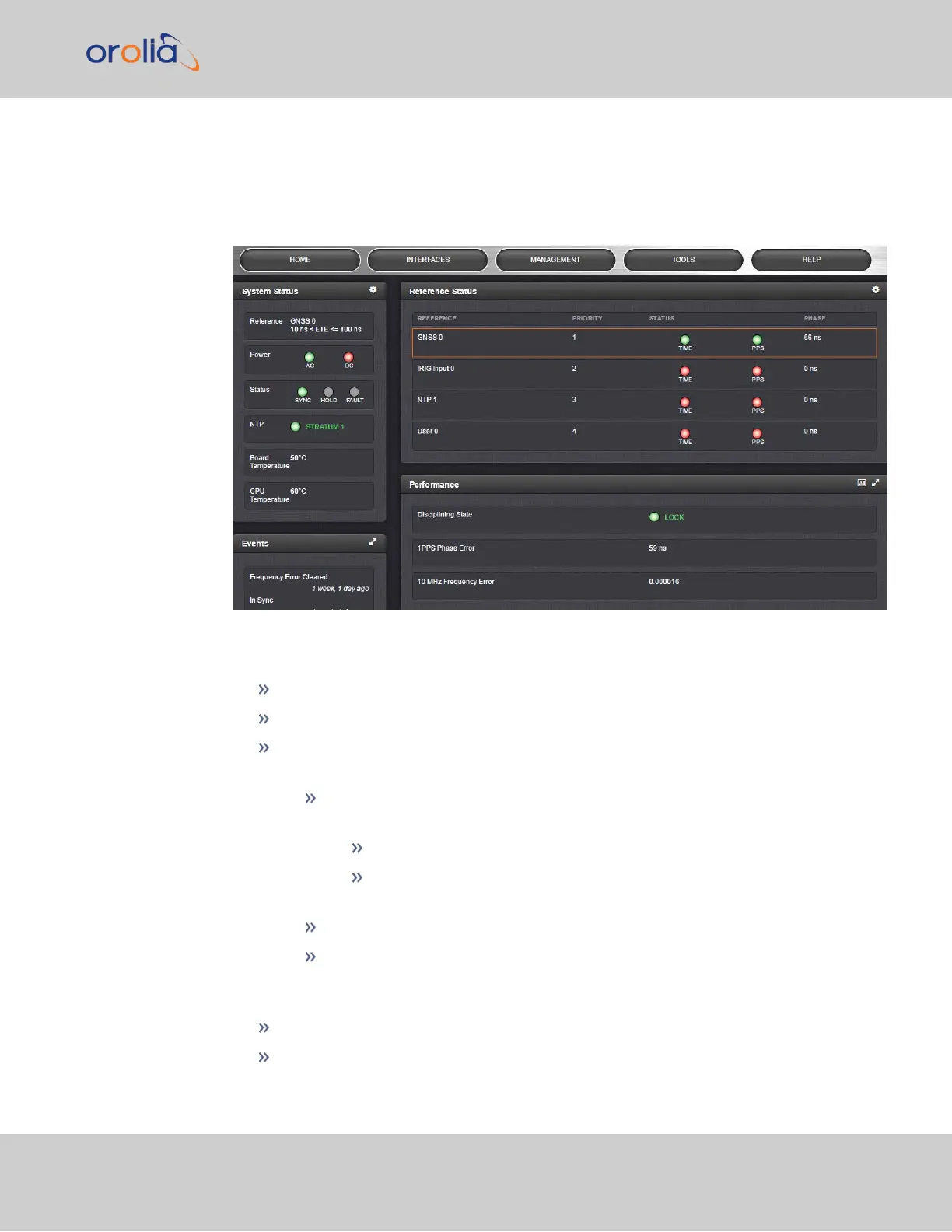

The HOME screen of the VersaSync Web UI provides a system status overview (see also
"The Web UI HOME Screen" on page19).
The HOME screen is divided into four panels:
System Status panel
Reference—Indicates the status of the current synchronizing reference, if any.
Power—Indicates whether the power is on.
Status—Indicates the status of the network’s timing. There are three indicators in
the Status field:
Sync—Indicates whether VersaSync is synchronized to its selected input ref-
erences.
Green indicates VersaSync is currently synchronized to its references.
Orange indicates VersaSync is not currently synchronized to its ref-
erences.
Hold—When lit, VersaSync is in Holdover mode.
Fault—Indicates a fault in the operation of the VersaSync. See
"Troubleshooting via Web UI Status Page" on page266 for instructions for
troubleshooting faults.
Alarm Status: If a major or minor alarm is present, it will be displayed here.
NTP—Current STRATUM status of this VersaSync unit.
