Orolia VersaSync User Manual

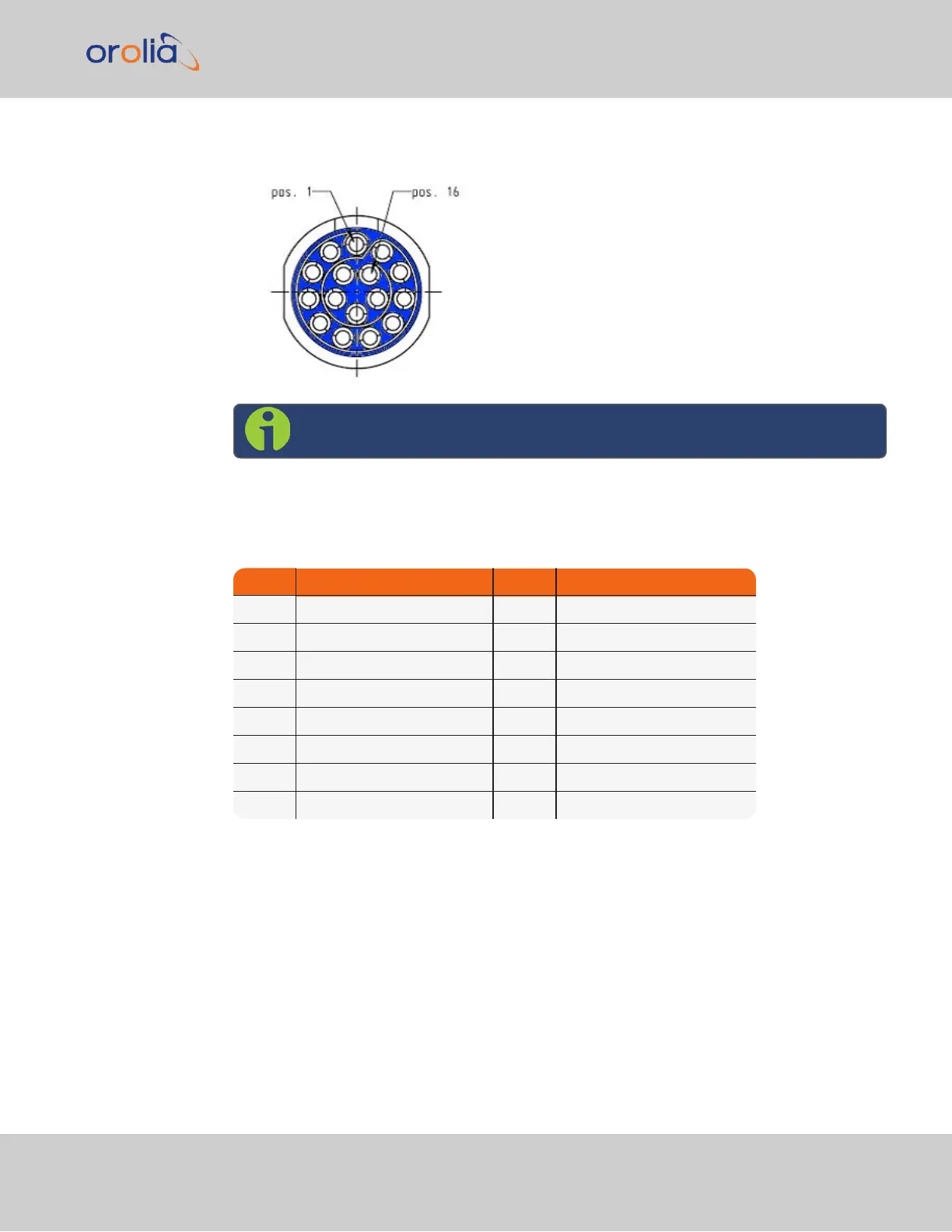

1.5.3 Ethernet Connector
Note: View in mating direction from front.
The Ethernet connector provides two 1GbE network connections, using 8 wires (pinout
below).
Table 1-7:
Ethernet connector pinout
Pin Signal Pin Signal
1 Ethernet_1 A+ 9 Ethernet_2 A+
2 Ethernet_1 A– 10 Ethernet_2 A–
3 Ethernet_1 B+ 11 Ethernet_2 B+
4 Ethernet_1 B– 12 Ethernet_2 B–
5 Ethernet_1 C+ 13 Ethernet_2 C+
6 Ethernet_1 C– 14 Ethernet_2 C–
7 Ethernet_1 D+ 15 Ethernet_2 D+
8 Ethernet_1 D– 16 Ethernet_2 D–
It is also possible to wire your connector to 100MbE, using only 4 wires. Contact Tech Sup-
port for more information.
1.5.4 Optional I/O Connector
The Optional I/O connector is used in conjunction with the Option Board that is available
for VersaSync. If the unit is not equipped with an Option Board, this connector is not used.
1.5 Connectors and their Pinouts
CHAPTER 1 • VersaSync User Manual Rev. 7.0
11
