information on the current Reference ID, input Validity, TODFormat, Time
Scale, Offset, and TFOM. (For more information on TFOM, see "Time Figure
of Merit (TFOM)" on page200.)
2.

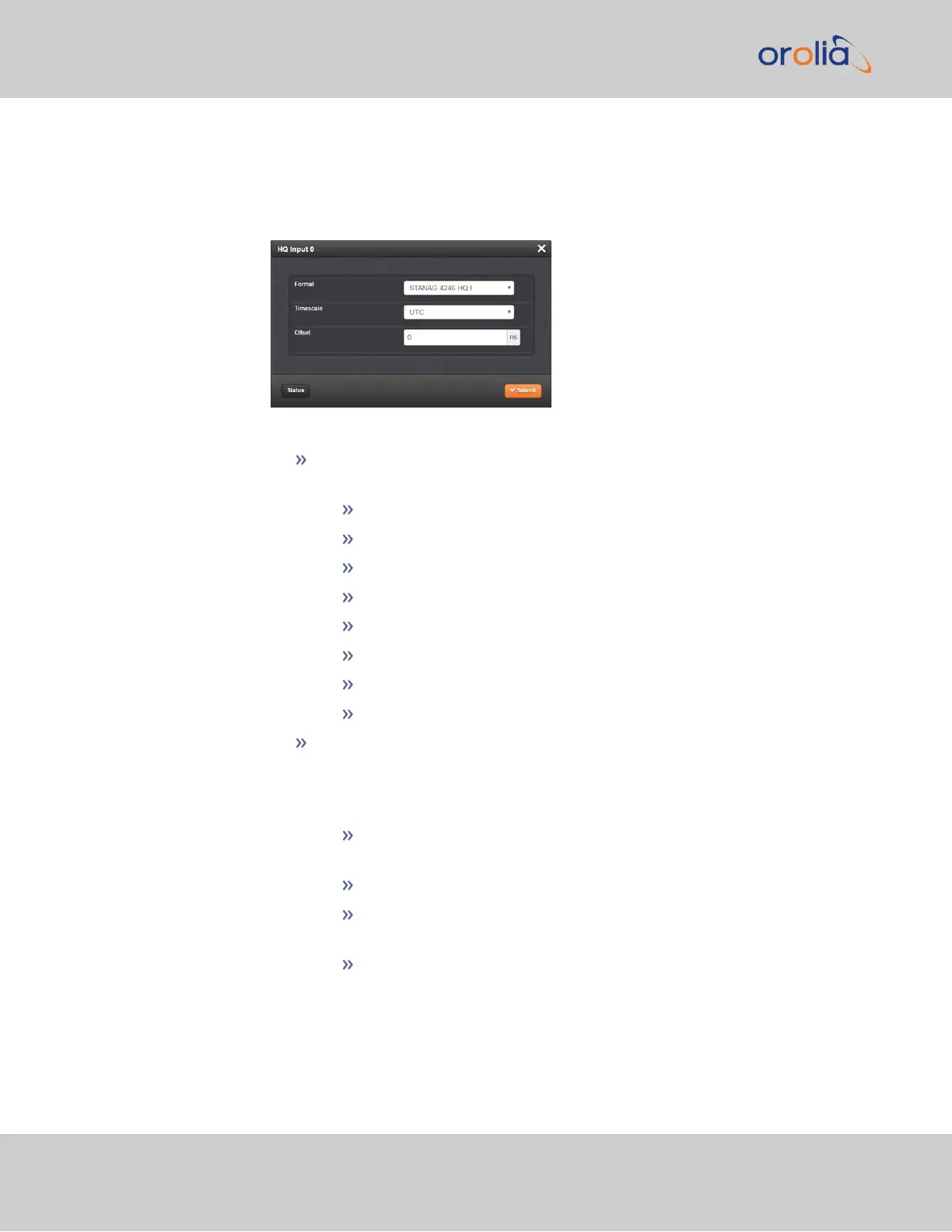

Click Edit to open the Configuration window.
The following settings are configurable:
ToD Format: The user-selectable format to be used. Available formats
include:
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Timescale: Used to select the time base for the incoming time code
data. The entered Timescale is used by the system to convert the time
in the incoming data stream to UTC time for use by the System Time.
The available choices are:
UTC : Coordinated Universal Time ("temps universel coor-
donné"), also referred to as ZULU time
TAI: Temps Atomique International
GPS: The raw GPS time as transmitted by the GNSS satellites (as
of 5-August-2019, this is 18 seconds ahead of UTC time).
A local clock can be set up through the Time Management
Page; see "Local Clock(s), DST" on page149. Local timescale
allows a Local Clock to apply a time offset for Time Zone and
DST correction.
58
CHAPTER 2 • VersaSync User Manual Rev. 7.0
2.7 Configuring Inputs/Outputs
