Made in the U.S.A.
TOOLING OPTIONS AND INSTALLATION
C A U T I O N
D A N G E R
D A N G E R
INSTALLATION
MOLE SHANK ASSEMBLY
FERTILIZER TUBE
If you choose to apply NH
3
or liquid fertilizer, it is advisable to consult documented
information regarding safe handling and application of NH
3
or liquid fertilizer. Refer to
recognized sources. (pg. 2 - 7)
AVOID CRUSHING. Make sure all personnel are clear of the implement. Lower implement
to support blocks to attain proper shank installation height for fertilizer tubes, place tractor
in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT. Park implement on a clean, dry, and
level surface. An uneven surface could cause implement to shift or fall, resulting in personal
injury or death, as well as implement damage. Securely support all implement components
that must be raised. Remove buildup of grease, oil, or debris prior to installing the fertilizer
tubes.
C A U T I O N
Be extremely careful working
around unshielded sharp edges.
Injury may result from contact
with sharp edges.
153 - 045

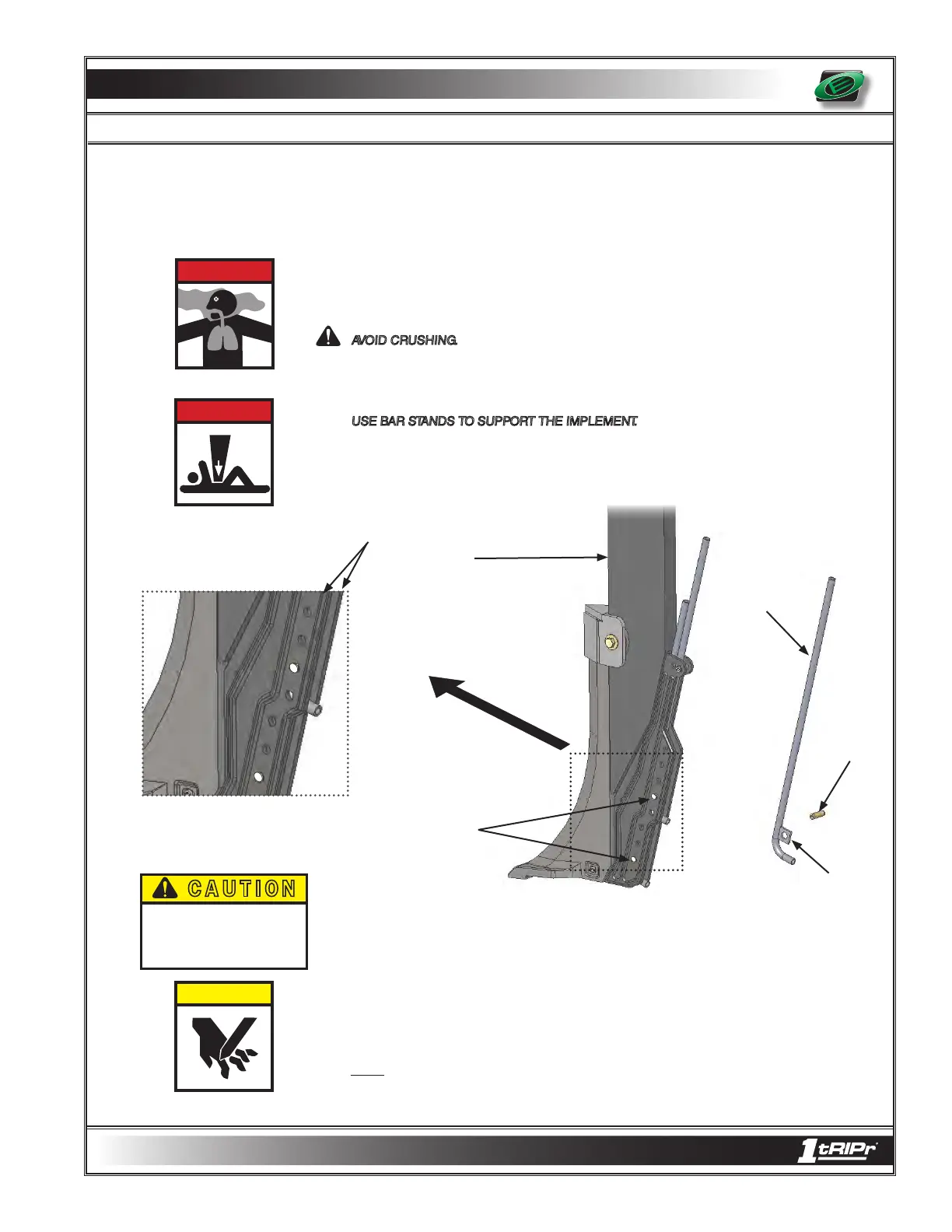

1. Distinguish roll pin holes for desired fertilizer placement depth.
2. Insert fertilizer tubes between side plates.
(see inset)
3. Align desired roll pin holes and fertilizer tube mount tab.
4. Insert roll pin through side plate roll pin holes and fertilizer tube mount tab
to secure fertilizer tube.
NOTE: The uppermost roll pin holes and upper roll pin may be used to support the upper
portion of the fertilizer tube.
Shank
DIRECTION OF TRAVEL
Roll Pin
Holes
Fertilizer
Fertilizer
Tube
Side Plates
Inset
Roll Pin
4 - 5
