Made in the U.S.A.
TOOLING OPTIONS AND INSTALLATION
INSTALLATION MOLE SHANK
ASSEMBLY ADJUSTABLE DRY
FERTILIZER BOOT
If you choose to apply NH
3
or liquid fertilizer, or dry fertilizer it is advisable to consult
documented information regarding safe handling and application of NH
3
or liquid fertilizer.
Refer to recognized sources. (pg. 2 - 7)
AVOID CRUSHING. Make sure all personnel are clear of the implement. Lower implement
to support blocks to attain proper shank installation height for fertilizer tubes, place tractor
in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT. Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
personal injury or death, as well as implement damage. Securely support all implement
components that must be raised. Remove buildup of grease, oil, or debris prior to
installing the fertilizer boot.
D A N G E R
D A N G E R

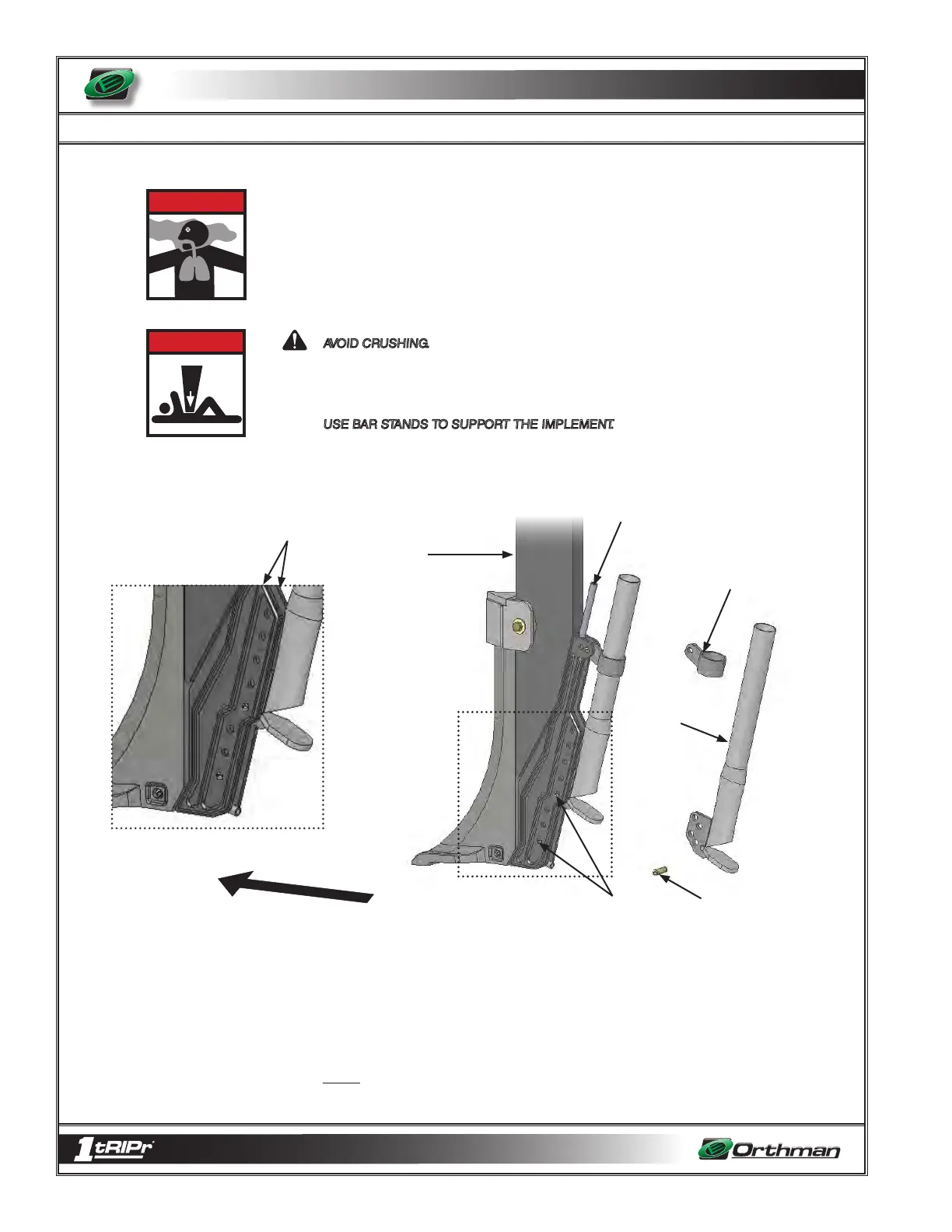

1. Distinguish roll pin holes for desired fertilizer placement depth.
2. Insert fertilizer tube, and or dry fertilizer boot between side plates (see inset).
3. Align desired roll pin holes and fertilizer tube mount tab.
4. Insert roll pin through side plate roll pin holes and fertilizer tube and or dry fertilizer
boot mount tabs to secure tube and or boot.
NOTE: the uppermost roll pin holes and upper roll pin may be used to support the upper
portion of the fertilizer tube and or boot.
Fertilizer Tube
Roll Pin Holes
Side Plates
Inset
DIRECTION OF TRAVEL
Shank
Roll Pin
Dry Boot Holder
Dry Boot
4 - 6
