TOOLING OPTIONS AND INSTALLATION
DIRECTION OF TRAVEL
Fertilizer Tube
Fertilizer Tube
Mount Tab
Roll
Pin
Roll Pin Holes
(3 per side
plate)
Shank

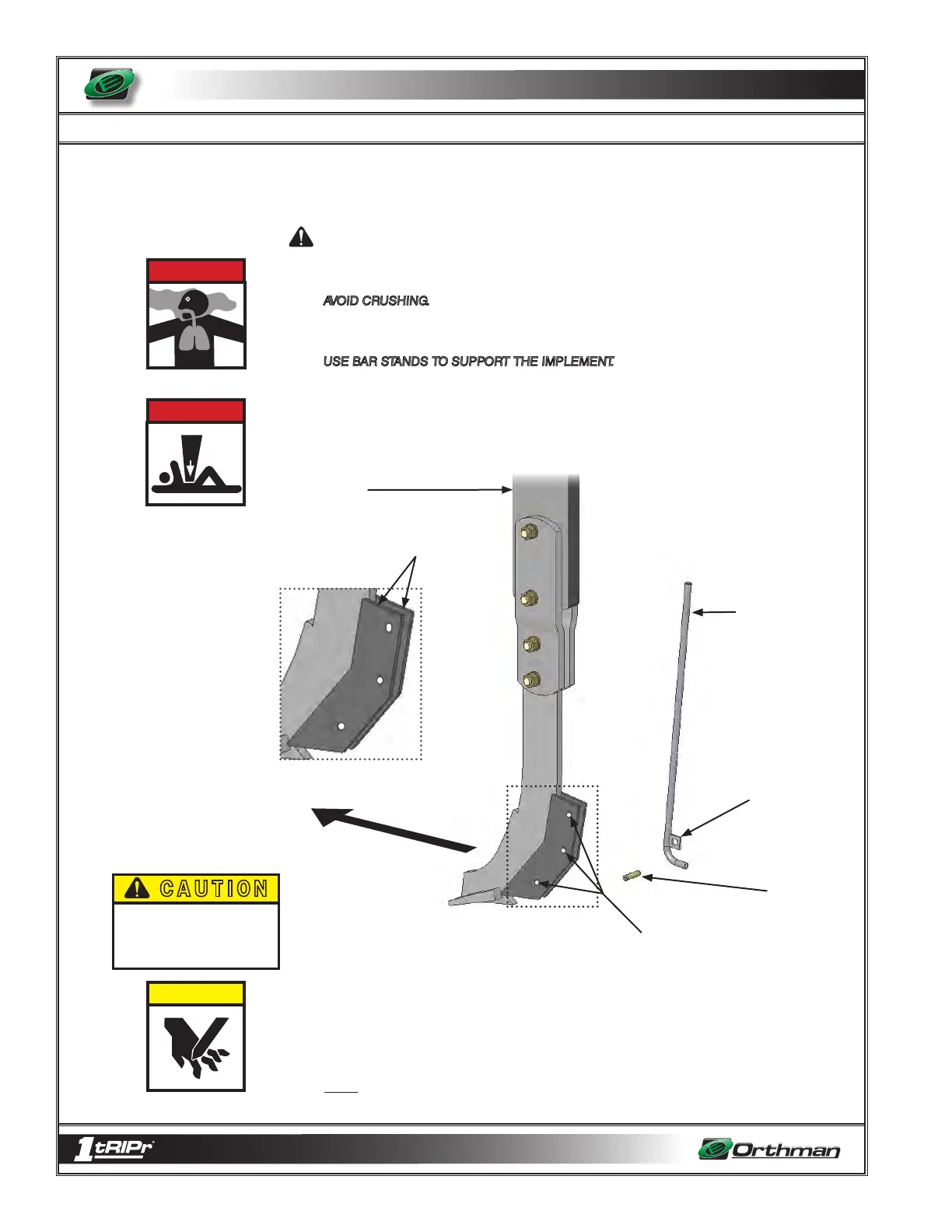

1. Distinguish roll pin holes for desired fertilizer placement depth.
2. Insert fertilizer tube between side plates.
(see inset)
3. Align desired roll pin holes and fertilizer tube mount tab.
4. Insert roll pin through side plate roll pin holes and fertilizer tube mount tab to secure
fertilizer tube.
NOTE: Contact your Orthman dealer for additional fertilizer tubes to place fertilizer at two
depths.
INSTALLATION MOLE KNIFE
ASSEMBLY FERTILIZER TUBE
If you choose to apply NH3, it is advisable to consult documented information regarding
safe handling and application of NH3. Refer to recognized sources. (pg. 2 - 7)
AVOID CRUSHING. Make sure all personnel are clear of the implement. Lower implement
to the ground, place tractor in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT. Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
personal injury or death, as well as implement damage. Securely support all implement
components that must be raised. Remove buildup of grease, oil, or debris prior to
installing the mole knife.
C A U T I O N
D A N G E R
D A N G E R
C A U T I O N
Be extremely careful working
around unshielded sharp edges.
Injury may result from contact
with sharp edges.
153 - 045
Inset
Side Plates
4 - 8
