TOOLING OPTIONS AND INSTALLATION
AVOID CRUSHING. Make sure all personnel are clear of the implement. Lower implement
to the ground, place tractor in park, turn off engine, and remove key.
USE BAR STANDS TO SUPPORT THE IMPLEMENT. Park implement on a clean, dry,
and level surface. An uneven surface could cause implement to shift or fall, resulting in
personal injury or death, as well as implement damage. Securely support all implement
components that must be raised. Remove buildup of grease, oil, or debris prior to
adjusting.
5. After checking that the tail section will pivot and the pivot bolt is tightened it is advis-
able to re-install ¾” x 3” long main frame bolt. This will keep the tail positioned properly
for the rest of the installation and serve as a safety pin so the unit will not accidentally trip
while someone is working on it. Be sure to remove this bolt when installation is com-
pleted or trip linkage will not function.
Trip Linkage Assembly
Install
Crush Sleeve
D A N G E R

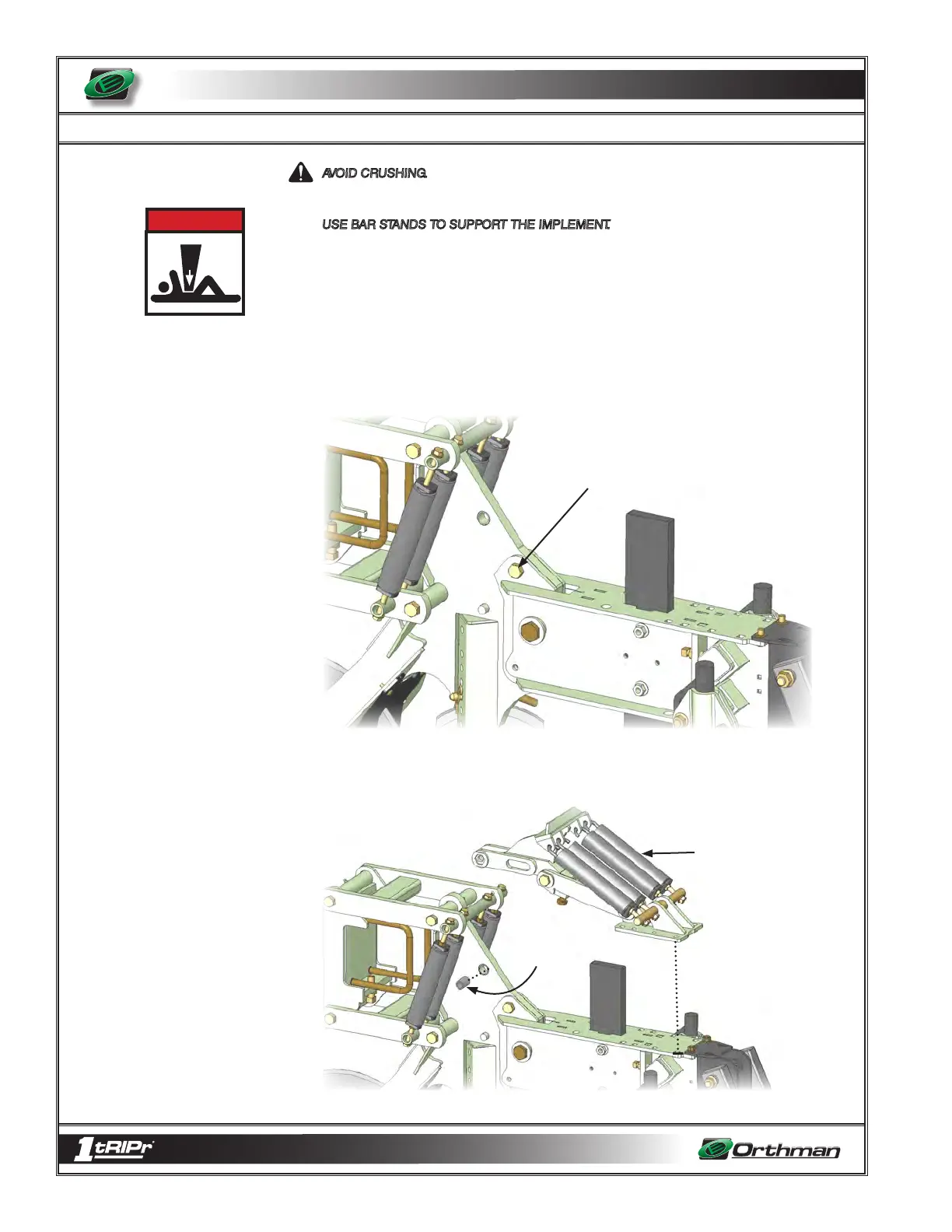

6. Install crush sleeve into main frame, and then lower trip linkage assembly onto the tail
section. Line up the eight bolt holes in the tail section plate and install 8 carriage bolts.
Re-install for safety
during installation
